Search › Model › LH20

LH20

Toyota HIACE · 1979 · 4,000 parts · 146 categories

4,000 items

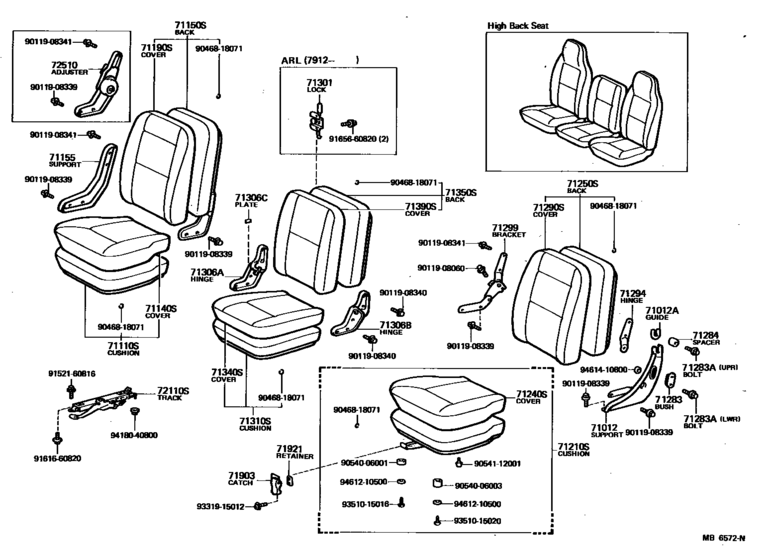

Seat & Seat Track ([02.1977 - ] (7702- )RHD) 86

#	OEM	Part name
71012	71012-95A00	Support Sub-Assy, Front Seat Back, Lh
71012	71012-95A02-06	Support Sub-Assy, Front Seat Back, Lh
71012	71012-95A05	Support Sub-Assy, Front Seat Back, Lh
71012	71297-95A00	Guide, Front Seat Back Support, Lh
71110	71110-95A08-05	Cushion Assy, Front Seat, Rh
71110	71110-95A22	Cushion Assy, Front Seat, Rh
71140	71140-95A05-05	Cover, Front Seat Cushion, Rh
71140	71140-95A15	Cover, Front Seat Cushion, Rh
71140	71140-95A21-16	Cover, Front Seat Cushion, Rh
71150	71150-95A28-05	Back Assy, Front Seat, Rh
71150	71150-95A34-05	Back Assy, Front Seat, Rh
71150	71150-95A58-06	Back Assy, Front Seat, Rh
71150	71150-95A64	Back Assy, Front Seat, Rh
71150	71150-95A70-16	Back Assy, Front Seat, Rh
71150	71170-95A01-16	Back Assy, Front Seat, Rh
71190	71190-95A12-05	Cover, Front Seat Back, Rh
71190	71190-95A14-05	Cover, Front Seat Back, Rh
71190	71190-95A30-16	Cover, Front Seat Back, Rh
71190	71190-95A47-16	Cover, Front Seat Back, Rh
71210	71210-95A08-05	Cushion Assy, Front Seat, Lh
71210	71210-95A22	Cushion Assy, Front Seat, Lh
71210	71210-95A31-16	Cushion Assy, Front Seat, Lh
71240	71240-95A09-05	Cover, Front Seat Cushion, Lh
71240	71240-95A21	Cover, Front Seat Cushion, Lh
71240	71240-95A32-16	Cover, Front Seat Cushion, Lh
71250	71250-95A24-05	Back Assy, Front Seat, Lh
71250	71250-95A30-05	Back Assy, Front Seat, Lh
71250	71250-95A54-06	Back Assy, Front Seat, Lh
71250	71250-95A54-16	Back Assy, Front Seat, Lh
71250	71250-95A61	Back Assy, Front Seat, Lh
71250	71250-95A77-16	Back Assy, Front Seat, Lh
71283	71283-95A00	Bush, Front Seat Back Support, Lh
71283	71282-95A00	Bolt, Front Seat Back Support, Lh
71283	71285-95A00	Bolt, Front Seat Back Support, Lh
71284	71284-95A00	Spacer, Front Seat Back Support, Lh
71290	71190-95A26-16	Cover, Front Seat Back, Rh
71290	71190-95A45-16	Cover, Front Seat Back, Rh
71290	71290-95A08-16	Cover, Front Seat Back, Lh
71290	71290-95A09-16	Cover, Front Seat Back, Lh
71294	71294-95A00	Hinge, Front Seat Back, Lh
71294	71294-95A02-06	Hinge, Front Seat Back, Lh
71294	71294-95A05	Hinge, Front Seat Back, Lh
71299	71209-95A00	Bracket, Front Seat Back, Lh
71299	71209-95A15	Bracket, Front Seat Back, Lh
71299	71209-95A04	Bracket, Front Seat Back, Lh
71299	71209-95A17	Bracket, Front Seat Back, Lh
71301	71301-95A01	Lock Sub-Assy, Center Seat
71301	71301-95A02	Lock Sub-Assy, Center Seat
71306	71307-95A06	Hinge Sub-Assy, Center Seat, Rh
71306	71307-95A13	Hinge Sub-Assy, Center Seat, Rh
71306	71308-95A00	Hinge Sub-Assy, Center Seat, Lh
71306	71308-95A03-06	Hinge Sub-Assy, Center Seat, Lh
71306	71308-95A07	Hinge Sub-Assy, Center Seat, Lh
71310	71310-95A14	Cushion Assy, Front Seat, Center
71340	71340-95A11	Cover, Front Seat Cushion, Center
71350	71350-95A23	Back Assy, Front Seat, Center
71390	71390-95A11	Cover, Front Seat Back, Center
71903	71901-95016	Catch Sub-Assy, Seat Cushion, Rear
71921	71921-95700	Retainer, Engine Service Hole Cover Catch
72110	72710-95A00	Track Assy, Rh Seat, Outer (For Separate Seat)
72510	72510-95A00	Adjuster Assy, Reclining Seat Back, Rh
72510	72510-95A03-C0	Adjuster Assy, Reclining Seat Back, Rh
72510	72510-95A03-06	Adjuster Assy, Reclining Seat Back, Rh
9011908060	90119-08060	New Genuine Part
9011908339	90119-08339	New Genuine Part
9011908340	90119-08340	New Genuine Part
9011908340	90119-08200	BOLT
9011908341	90119-08341	New Genuine Part
9046818071	90468-18071	Clip (For Front Seat Cushion Cover)
9046818071	90468-16019	Clip (For Rear Seat Back)
9054006001	90540-06001	New Genuine Part
9054006003	90540-06003	New Genuine Part
9054112001	90541-12001	New Genuine Part
9152160816	91521-60816	New Genuine Part
9152160816	91511-B0816	BOLT
9161660820	91616-60820	Bolt(For Clutch Release Cylinder Setting)
9161660820	91611-G0820	Bolt
9165660820	91656-60820	New Genuine Part
9165660820	91651-60816	BOLT
9331915012	93319-15012	Screw
9351015016	93510-15016	New Genuine Part
9351015020	93510-15020	New Genuine Part
9418040800	94180-40800	NUT
9461210500	94612-10500	WASHERPLATE
9461410800	94614-10800	Spacer (For Control Select Lever Support)
9461410800	94613-10800	Spacer (For Control Select Lever Support)

OEM	Part name	Category
71012-95A00	Support Sub-Assy, Front Seat Back, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71012-95A02-06	Support Sub-Assy, Front Seat Back, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71012-95A05	Support Sub-Assy, Front Seat Back, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71110-95A08-05	Cushion Assy, Front Seat, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71110-95A22	Cushion Assy, Front Seat, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71140-95A05-05	Cover, Front Seat Cushion, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71140-95A15	Cover, Front Seat Cushion, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71140-95A21-16	Cover, Front Seat Cushion, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71150-95A28-05	Back Assy, Front Seat, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71150-95A34-05	Back Assy, Front Seat, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71150-95A58-06	Back Assy, Front Seat, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71150-95A64	Back Assy, Front Seat, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71150-95A70-16	Back Assy, Front Seat, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71170-95A01-16	Back Assy, Front Seat, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71190-95A12-05	Cover, Front Seat Back, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71190-95A14-05	Cover, Front Seat Back, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71190-95A26-16	Cover, Front Seat Back, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71190-95A30-16	Cover, Front Seat Back, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71190-95A45-16	Cover, Front Seat Back, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71190-95A47-16	Cover, Front Seat Back, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71209-95A00	Bracket, Front Seat Back, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71209-95A04	Bracket, Front Seat Back, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71209-95A15	Bracket, Front Seat Back, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71209-95A17	Bracket, Front Seat Back, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71210-95A08-05	Cushion Assy, Front Seat, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71210-95A22	Cushion Assy, Front Seat, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71210-95A31-16	Cushion Assy, Front Seat, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71240-95A09-05	Cover, Front Seat Cushion, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71240-95A21	Cover, Front Seat Cushion, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71240-95A32-16	Cover, Front Seat Cushion, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71250-95A24-05	Back Assy, Front Seat, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71250-95A30-05	Back Assy, Front Seat, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71250-95A54-06	Back Assy, Front Seat, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71250-95A54-16	Back Assy, Front Seat, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71250-95A61	Back Assy, Front Seat, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71250-95A77-16	Back Assy, Front Seat, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71282-95A00	Bolt, Front Seat Back Support, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71283-95A00	Bush, Front Seat Back Support, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71284-95A00	Spacer, Front Seat Back Support, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71285-95A00	Bolt, Front Seat Back Support, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71290-95A08-16	Cover, Front Seat Back, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71290-95A09-16	Cover, Front Seat Back, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71294-95A00	Hinge, Front Seat Back, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71294-95A02-06	Hinge, Front Seat Back, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71294-95A05	Hinge, Front Seat Back, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71297-95A00	Guide, Front Seat Back Support, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71301-95A01	Lock Sub-Assy, Center Seat	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71301-95A02	Lock Sub-Assy, Center Seat	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71307-95A06	Hinge Sub-Assy, Center Seat, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71307-95A13	Hinge Sub-Assy, Center Seat, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71308-95A00	Hinge Sub-Assy, Center Seat, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71308-95A03-06	Hinge Sub-Assy, Center Seat, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71308-95A07	Hinge Sub-Assy, Center Seat, Lh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71310-95A14	Cushion Assy, Front Seat, Center	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71340-95A11	Cover, Front Seat Cushion, Center	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71350-95A23	Back Assy, Front Seat, Center	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71390-95A11	Cover, Front Seat Back, Center	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71901-95016	Catch Sub-Assy, Seat Cushion, Rear	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
71921-95700	Retainer, Engine Service Hole Cover Catch	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
72510-95A00	Adjuster Assy, Reclining Seat Back, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
72510-95A03-06	Adjuster Assy, Reclining Seat Back, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
72510-95A03-C0	Adjuster Assy, Reclining Seat Back, Rh	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
72710-95A00	Track Assy, Rh Seat, Outer (For Separate Seat)	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
90119-08060	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
90119-08200	BOLT	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
90119-08339	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
90119-08340	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
90119-08341	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
90468-16019	Clip (For Rear Seat Back)	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
90468-18071	Clip (For Front Seat Cushion Cover)	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
90540-06001	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
90540-06003	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
90541-12001	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
91511-B0816	BOLT	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
91521-60816	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
91611-G0820	Bolt	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
91616-60820	Bolt(For Clutch Release Cylinder Setting)	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
91651-60816	BOLT	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
91656-60820	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
93319-15012	Screw	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
93510-15016	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
93510-15020	New Genuine Part	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
94180-40800	NUT	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
94612-10500	WASHERPLATE	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
94613-10800	Spacer (For Control Select Lever Support)	Seat & Seat Track ([02.1977 - ] (7702- )RHD)
94614-10800	Spacer (For Control Select Lever Support)	Seat & Seat Track ([02.1977 - ] (7702- )RHD)

Source: Public OEM parts-catalog data
Variants: 2 / 34
Category: 146
Collected: 2026-08-03
