LH20

Toyota HIACE · 1979 · 4,000 parts · 146 categories

4,000 items

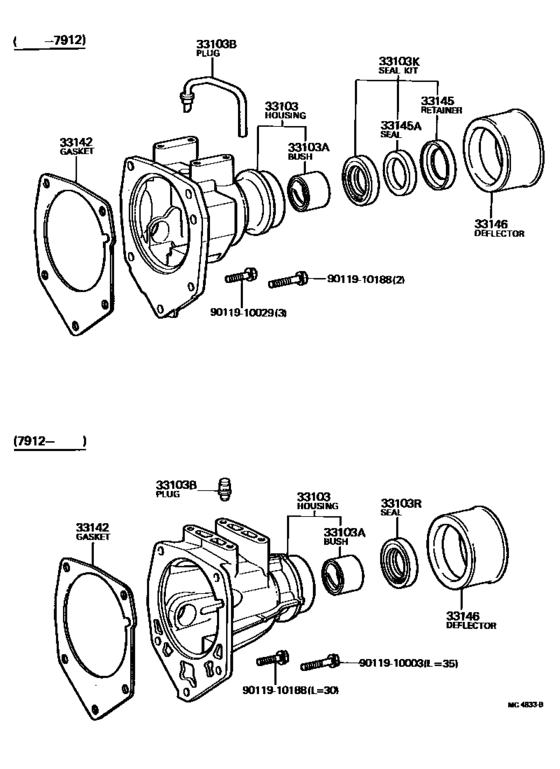

Extension Housing (Mtm) ([02.1977 - ] (7702- )4H) 22

#	OEM	Part name
33103	33103-26020	Housing Sub-Assy, Extension(Mtm)
33103	33103-27021	Housing Sub-Assy, Extension(Mtm)
33103	33143-27010	Baffle Sub-Assy, Extension Housing Oil
33103	90930-03075	Plug, Breather
33103	90119-10188	Bolt(For Backing Plate To Steering Knuckle Setting)
33103	91612-61045	Bolt(For Transaxle & Engine Setting)
33103	33103-27020	Housing Sub-Assy, Extension(Mtm)
33103	90999-72023	Bush(For Manual Transmission Extension Housing)
33103	90999-73139	Bush (For Transfer Case)
33103	90930-03053	Plug, Breather(For Transmission Extension Housing)
33103	04332-30010	Seal Kit, Oil(For Manual Transmission Extension Housing)
33103	04332-30030	Seal Kit, Oil(For Automatic Extention Housing)
33103	90311-38043	Seal Kit, Oil(For Manual Transmission Extension Housing)
33103	90311-38032	Seal, Oil(For Manual Transmission Extension Housing)
33142	33142-26010	Gasket, Extension Housing(Mtm)
33145	33145-30010	Retainer, Extension Housing Dust Seal(Mtm)
33145	90303-38010	Seal, Dust(For Manual Transmission Extension Housing)
33146	33146-30010	Deflector, Extension Housing Dust(Mtm)
33146	33146-30020	Deflector, Extension Housing Dust(Mtm)
9011910003	90119-10003	Bolt(for Transaxle Case & Engine Setting)
9011910029	90119-10029	Bolt (For Control Shaft Cover)
9011910029	90119-10288	Bolt (For Control Shaft Cover)

OEM	Part name	Category
04332-30010	Seal Kit, Oil(For Manual Transmission Extension Housing)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
04332-30030	Seal Kit, Oil(For Automatic Extention Housing)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
33103-26020	Housing Sub-Assy, Extension(Mtm)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
33103-27020	Housing Sub-Assy, Extension(Mtm)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
33103-27021	Housing Sub-Assy, Extension(Mtm)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
33142-26010	Gasket, Extension Housing(Mtm)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
33143-27010	Baffle Sub-Assy, Extension Housing Oil	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
33145-30010	Retainer, Extension Housing Dust Seal(Mtm)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
33146-30010	Deflector, Extension Housing Dust(Mtm)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
33146-30020	Deflector, Extension Housing Dust(Mtm)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
90119-10003	Bolt(for Transaxle Case & Engine Setting)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
90119-10029	Bolt (For Control Shaft Cover)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
90119-10188	Bolt(For Backing Plate To Steering Knuckle Setting)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
90119-10288	Bolt (For Control Shaft Cover)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
90303-38010	Seal, Dust(For Manual Transmission Extension Housing)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
90311-38032	Seal, Oil(For Manual Transmission Extension Housing)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
90311-38043	Seal Kit, Oil(For Manual Transmission Extension Housing)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
90930-03053	Plug, Breather(For Transmission Extension Housing)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
90930-03075	Plug, Breather	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
90999-72023	Bush(For Manual Transmission Extension Housing)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
90999-73139	Bush (For Transfer Case)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
91612-61045	Bolt(For Transaxle & Engine Setting)	Extension Housing (Mtm) ([02.1977 - ] (7702- )4H)
