LH20

Toyota HIACE · 1979 · 4,000 parts · 146 categories

4,000 items

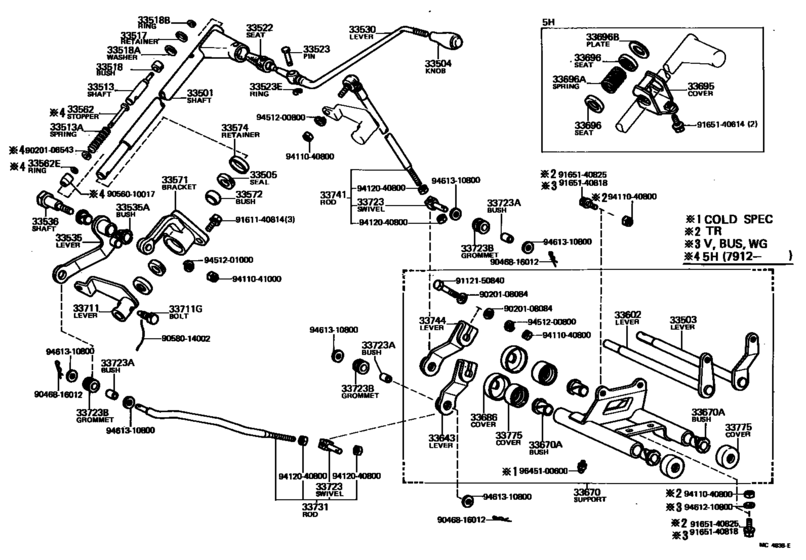

Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD) 57

#	OEM	Part name
33501	33501-26040	Shaft Sub-Assy, Control (For Column Shift)
33501	33501-26041	Shaft Sub-Assy, Control (For Column Shift)
33503	33503-26040	Lever Sub-Assy, Shift(For Column Shift)
33504	33504-30110	Knob Sub-Assy, Shift Lever (For Column Shift)
33505	90303-17005	Seal Sub-Assy, Control Shaft Dust (For Column Shift)
33513	33513-36020	Shaft, Control Shaft Bracket, Upper
33513	90501-14395	Spring, Compression (For Bracket Upper Shaft)
33517	33517-30010	Retainer, Control Shaft Upper Spring
33518	33518-36010	Bush, Upper Control Shaft Piece
33518	33518-35010	Bush, Upper Control Shaft Piece
33518	33515-30010	Seat, Control Shaft Upper
33518	90523-06019	Ring, E (For Upper Control Shaft Piece Bush)
33522	33522-35010	Seat, Shift Lever Plate (For Column Shift)
33523	90249-07001	Pin, Shift Lever (For Column Shift)
33523	96160-00500	Ring, E(For Over Center Lever)
33530	33541-26030	Lever Assy, Shift (For Column Shift)
33535	33535-26012	Lever, Control Select (For Column Shift)
33535	90386-13007	Bush(For Clutch Pedal)
33536	33536-25010	Shaft, Control Select Lever (For Column Shift)
33571	33571-26012	Bracket, Control Shaft, Lower (For Column Shift)
33572	33572-36010	Bush, Control Shaft Lower (For Column Shift)
33574	33574-25010	Retainer, Dust Seal (For Column Shift Control Shaft)
33602	33602-26040	Lever Sub-Assy, Select (For Column Shift)
33643	33641-26040	Lever, Gear Selecting
33670	33670-26130	Support Assy, Control Rod (For Column Shift)
33670	90386-15082	Bush (For Control Rod Support)
33686	33686-26010	Cover, Control Lever Dust (For Column Shift)
33711	33527-26030	Lever, Control Shaft (For Column Shift)
33711	33218-35010	Bolt, Shift Lever Lock
33723	33723-10020	Swivel, Connecting Rod (For Column Shift)
33723	90389-08005	Bushing(For Gear Selecting Rod)
33723	90480-17177	Grommet (For Transmission Control Rod)
33731	33720-26012	Rod, Gear Selecting, No.1 (For Column Shift)
33741	33710-26040	Rod, Gear Shifting, No.1 (For Column Shift)
33741	33710-26041	Rod, Gear Shifting, No.1 (For Column Shift)
33744	33744-26040	Lever, Gear Shifting, No.1 (For Column Shift)
33775	33775-27011	Cover, Cross Shaft Dust (For Column Shift)
9020106543	90201-06543	New Genuine Part
9020108084	90201-08084	New Genuine Part
9046816012	90468-16012	Pin, Sub Seat Cushion Pin
9056010017	90560-10017	New Genuine Part
9058014002	90580-14002	Wire(For Shift Lever Lock Bolt)
9112150840	91121-50840	New Genuine Part
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9165140614	91651-40614	Bolt
9165140818	91651-40818	BOLT, W-WASHER
9165140825	91651-40825	Bolt(For Clutch Release Cylinder Setting)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9411041000	94110-41000	Nut(For Steering Damper)
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9461210800	94612-10800	Washer, Plate(For Repair Actuator Set)
9461310800	94613-10800	Spacer (For Control Select Lever Support)
9645100600	96451-00600	Fitting, Grease Small(For Tail Gate Lock Link)

OEM	Part name	Category
33218-35010	Bolt, Shift Lever Lock	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33501-26040	Shaft Sub-Assy, Control (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33501-26041	Shaft Sub-Assy, Control (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33503-26040	Lever Sub-Assy, Shift(For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33504-30110	Knob Sub-Assy, Shift Lever (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33513-36020	Shaft, Control Shaft Bracket, Upper	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33515-30010	Seat, Control Shaft Upper	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33517-30010	Retainer, Control Shaft Upper Spring	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33518-35010	Bush, Upper Control Shaft Piece	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33518-36010	Bush, Upper Control Shaft Piece	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33522-35010	Seat, Shift Lever Plate (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33527-26030	Lever, Control Shaft (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33535-26012	Lever, Control Select (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33536-25010	Shaft, Control Select Lever (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33541-26030	Lever Assy, Shift (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33571-26012	Bracket, Control Shaft, Lower (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33572-36010	Bush, Control Shaft Lower (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33574-25010	Retainer, Dust Seal (For Column Shift Control Shaft)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33602-26040	Lever Sub-Assy, Select (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33641-26040	Lever, Gear Selecting	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33670-26130	Support Assy, Control Rod (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33686-26010	Cover, Control Lever Dust (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33710-26040	Rod, Gear Shifting, No.1 (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33710-26041	Rod, Gear Shifting, No.1 (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33720-26012	Rod, Gear Selecting, No.1 (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33723-10020	Swivel, Connecting Rod (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33744-26040	Lever, Gear Shifting, No.1 (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
33775-27011	Cover, Cross Shaft Dust (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
90201-06543	New Genuine Part	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
90201-08084	New Genuine Part	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
90249-07001	Pin, Shift Lever (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
90303-17005	Seal Sub-Assy, Control Shaft Dust (For Column Shift)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
90386-13007	Bush(For Clutch Pedal)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
90386-15082	Bush (For Control Rod Support)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
90389-08005	Bushing(For Gear Selecting Rod)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
90468-16012	Pin, Sub Seat Cushion Pin	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
90480-17177	Grommet (For Transmission Control Rod)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
90501-14395	Spring, Compression (For Bracket Upper Shaft)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
90523-06019	Ring, E (For Upper Control Shaft Piece Bush)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
90560-10017	New Genuine Part	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
90580-14002	Wire(For Shift Lever Lock Bolt)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
91121-50840	New Genuine Part	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
91611-60814	Bolt	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
91651-40614	Bolt	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
91651-40818	BOLT, W-WASHER	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
91651-40825	Bolt(For Clutch Release Cylinder Setting)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
94110-40800	Nut(For Steering Damper)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
94110-41000	Nut(For Steering Damper)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
94120-40800	Nut(For Clutch Pedal Stopper)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
94130-00802	Nut, No.1 (For Center Support Bearing)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
94612-10800	Washer, Plate(For Repair Actuator Set)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
94613-10800	Spacer (For Control Select Lever Support)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
96160-00500	Ring, E(For Over Center Lever)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
96451-00600	Fitting, Grease Small(For Tail Gate Lock Link)	Control Shaft & Crossshaft ([02.1977 - ] (7702- )RHD)
