Search › Model › LH20

LH20

Toyota HIACE · 1979 · 4,000 parts · 146 categories

4,000 items

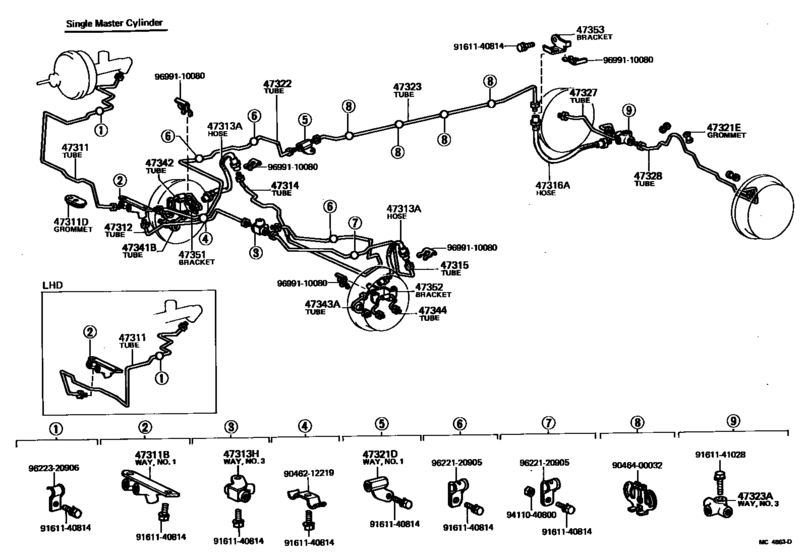

Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V) 55

#	OEM	Part name
47311	47311-26090	Tube, Front Brake, No.1
47311	90412-10029	Way, No.1(For Front Brake Tube)
47311	90412-10105	Way, No.1(For Front Brake Tube)
47311	90480-01030	Grommet(For Front Brake Tube)
47312	47312-26110	Tube, Front Brake, No.2
47312	47312-26130	Tube, Front Brake, No.2
47313	90947-02348	Hose, Flexible, No.1(For Front)
47313	90947-02350	Hose, Flexible, No.1(For Front)
47313	90413-10030	Way, No.3(For Front Brake Tube)
47313	96960-32205	Hose, Flexible, No.2(For Front)
47314	47313-26040	Tube, Front Brake, No.4
47314	47313-26050	Tube, Front Brake, No.4
47315	47314-26040	Tube, Front Brake, No.5
47315	47314-26050	Tube, Front Brake, No.5
47315	47314-26041	Tube, Front Brake, No.5
47315	47314-26051	Tube, Front Brake, No.5
47316	96910-31363	Hose, Flexible(For Rear Brake Tube)
47316	96910-33605	Hose, Flexible(For Rear Brake Tube)
47321	90412-10003	Way, No.1(For Rear Brake Tube)
47321	90480-08343	Grommet, No.2(For Front Brake Tube)
47321	47321-26020	Tube, Rear Brake, No.1
47322	47322-26020	Tube, Rear Brake, No.2
47322	47322-26040	Tube, Rear Brake, No.2
47323	47323-26020	Tube, Rear Brake, No.3
47323	90413-10031	Way, No.2(For Front Brake Tube)
47326	47324-26020	Tube, Rear Brake, No.6
47326	47324-26030	Tube, Rear Brake, No.6
47327	47325-26030	Tube, Rear Brake, No.7
47327	47325-26040	Tube, Rear Brake, No.7
47327	47325-26090	Tube, Rear Brake, No.7
47327	47325-26110	Tube, Rear Brake, No.7
47328	47326-26010	Tube, Rear Brake, No.8
47328	47326-26020	Tube, Rear Brake, No.8
47328	47326-26070	Tube, Rear Brake, No.8
47328	47326-26090	Tube, Rear Brake, No.8
47341	47341-26020	Tube, Wheel Cylinder, Front Rh No.1
47342	47342-26010	Tube, Wheel Cylinder, Front Rh No.1
47343	47343-26010	Tube, Wheel Cylinder, Front Lh No.1
47351	47351-26030	Bracket, Flexible Hose(For Front Rh)
47351	47351-26042	Bracket, Flexible Hose(For Front Rh)
47352	47352-26030	Bracket, Flexible Hose(For Front Lh)
47352	47352-26042	Bracket, Flexible Hose(For Front Lh)
47353	47355-26020	Bracket, Flexible Hose(For Rear)
9046212219	90462-12219	New Genuine Part
9046400032	90464-00032	New Genuine Part
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9161141028	91611-41028	Bolt(for Transaxle Case & Engine Setting)
9161141028	91612-61028	Bolt(For Transaxle Case & Engine Setting)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9622120905	96221-20905	New Genuine Part
9622120905	96221-34905	Clamp
9622320906	96223-20906	New Genuine Part
9699110080	96991-10080	CLIP

OEM	Part name	Category
47311-26090	Tube, Front Brake, No.1	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47312-26110	Tube, Front Brake, No.2	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47312-26130	Tube, Front Brake, No.2	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47313-26040	Tube, Front Brake, No.4	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47313-26050	Tube, Front Brake, No.4	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47314-26040	Tube, Front Brake, No.5	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47314-26041	Tube, Front Brake, No.5	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47314-26050	Tube, Front Brake, No.5	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47314-26051	Tube, Front Brake, No.5	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47321-26020	Tube, Rear Brake, No.1	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47322-26020	Tube, Rear Brake, No.2	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47322-26040	Tube, Rear Brake, No.2	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47323-26020	Tube, Rear Brake, No.3	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47324-26020	Tube, Rear Brake, No.6	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47324-26030	Tube, Rear Brake, No.6	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47325-26030	Tube, Rear Brake, No.7	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47325-26040	Tube, Rear Brake, No.7	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47325-26090	Tube, Rear Brake, No.7	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47325-26110	Tube, Rear Brake, No.7	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47326-26010	Tube, Rear Brake, No.8	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47326-26020	Tube, Rear Brake, No.8	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47326-26070	Tube, Rear Brake, No.8	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47326-26090	Tube, Rear Brake, No.8	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47341-26020	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47342-26010	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47343-26010	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47351-26030	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47351-26042	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47352-26030	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47352-26042	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
47355-26020	Bracket, Flexible Hose(For Rear)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
90412-10003	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
90412-10029	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
90412-10105	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
90413-10030	Way, No.3(For Front Brake Tube)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
90413-10031	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
90462-12219	New Genuine Part	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
90464-00032	New Genuine Part	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
90480-01030	Grommet(For Front Brake Tube)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
90480-08343	Grommet, No.2(For Front Brake Tube)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
90947-02348	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
90947-02350	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
91611-41028	Bolt(for Transaxle Case & Engine Setting)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
91611-60814	Bolt	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
91612-61028	Bolt(For Transaxle Case & Engine Setting)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
94110-40800	Nut(For Steering Damper)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
94130-00802	Nut, No.1 (For Center Support Bearing)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
96221-20905	New Genuine Part	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
96221-34905	Clamp	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
96223-20906	New Genuine Part	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
96910-31363	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
96910-33605	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
96960-32205	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)
96991-10080	CLIP	Brake Tube & Clamp ([02.1977 - ] (7702- )BUS,V)

Source: Public OEM parts-catalog data
Variants: 2 / 34
Category: 146
Collected: 2026-08-03
