Search › Model › LH20

LH20

Toyota HIACE · 1979 · 4,000 parts · 146 categories

4,000 items

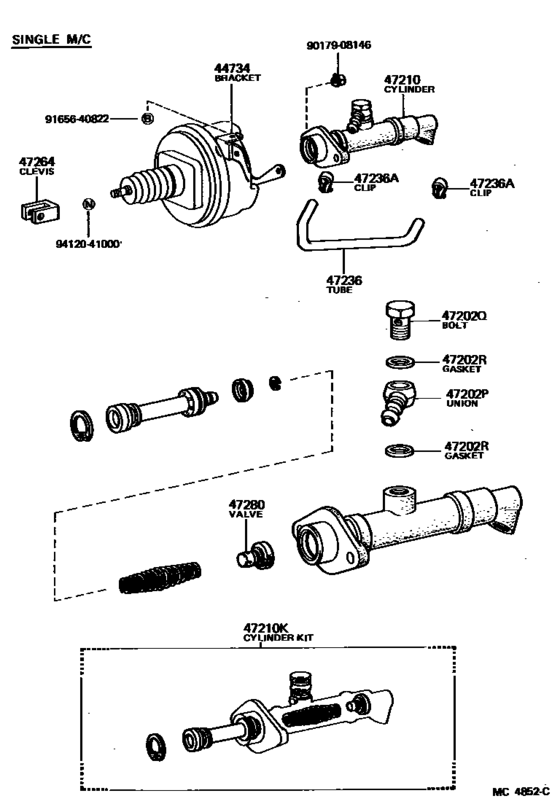

Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V) 22

#	OEM	Part name
44734	44734-26010	Bracket, Booster Support Or Rod Support
44734	44734-26020	Bracket, Booster Support Or Rod Support
47202	90405-13137	Union, Reservoir(For Brake Master Cylinder Side)
47202	90401-16002	Bolt, Reservoir Union(For Brake Master Cylinder Side)
47202	90430-16242	Gasket, W/head Straight Screw Plug
47210	47201-26070	Cylinder Assy, Master, W/o Booster
47210	47201-26100	Cylinder Assy, Master, W/o Booster
47210	47201-26110	Cylinder Assy, Master, W/o Booster
47210	04471-26020	Cylinder Kit, Brake Master
47210	04493-26030	Cylinder Kit, Brake Master
47210	04493-26060	Cylinder Kit, Brake Master
47236	47234-26030	Tube, Reservoir Brake
47236	47234-26031	Tube, Reservoir Brake
47236	90467-16141	Clip(For Clutch Reservoir Tube)
47264	47264-26020	Clevis, Master Cylinder Push Rod
47280	47281-30020	Valve Assy, Brake Master Cylinder Outlet Check
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9165640822	91656-40822	New Genuine Part
9165640822	91651-60818	BOLTWWASHER
9412041000	94120-41000	Nut(For Clutch Pedal Stopper)
9412041000	90170-A0002	Nut

OEM	Part name	Category
04471-26020	Cylinder Kit, Brake Master	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
04493-26030	Cylinder Kit, Brake Master	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
04493-26060	Cylinder Kit, Brake Master	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
44734-26010	Bracket, Booster Support Or Rod Support	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
44734-26020	Bracket, Booster Support Or Rod Support	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
47201-26070	Cylinder Assy, Master, W/o Booster	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
47201-26100	Cylinder Assy, Master, W/o Booster	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
47201-26110	Cylinder Assy, Master, W/o Booster	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
47234-26030	Tube, Reservoir Brake	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
47234-26031	Tube, Reservoir Brake	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
47264-26020	Clevis, Master Cylinder Push Rod	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
47281-30020	Valve Assy, Brake Master Cylinder Outlet Check	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
90170-A0002	Nut	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
90179-08146	Nut	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
90179-08204	Nut	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
90401-16002	Bolt, Reservoir Union(For Brake Master Cylinder Side)	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
90405-13137	Union, Reservoir(For Brake Master Cylinder Side)	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
90430-16242	Gasket, W/head Straight Screw Plug	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
90467-16141	Clip(For Clutch Reservoir Tube)	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
91651-60818	BOLTWWASHER	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
91656-40822	New Genuine Part	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
94120-41000	Nut(For Clutch Pedal Stopper)	Brake Master Cylinder ([02.1977 - ] (7702- )BUS,TR,V)
