LH20

Toyota HIACE · 1979 · 4,000 parts · 146 categories

4,000 items

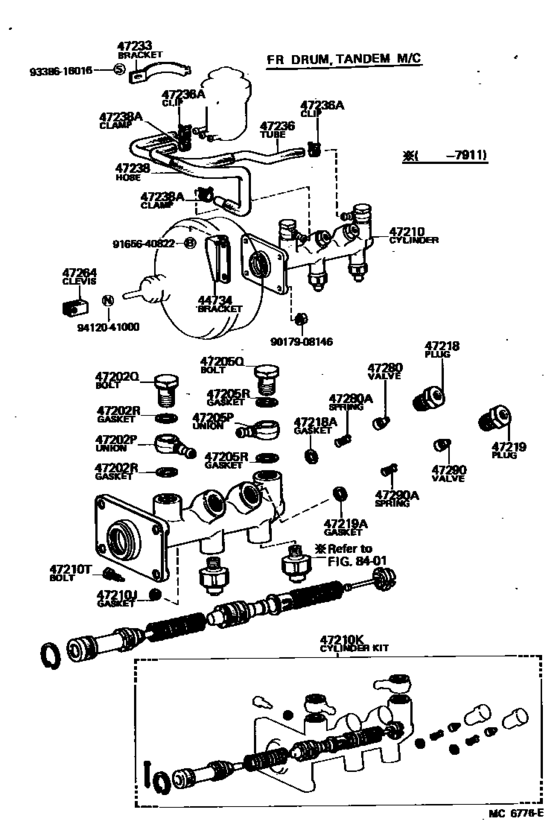

Brake Master Cylinder ([02.1977 - ] (7702- )) 47

#	OEM	Part name
44734	44734-26010	Bracket, Booster Support Or Rod Support
44734	44734-26020	Bracket, Booster Support Or Rod Support
47202	90405-13137	Union, Reservoir(For Brake Master Cylinder Side)
47202	90401-16002	Bolt, Reservoir Union(For Brake Master Cylinder Side)
47202	90430-16242	Gasket, W/head Straight Screw Plug
47202	47220-25022	Reservoir Sub-Assy, Brake Master Cylinder
47202	47220-26021	Reservoir Sub-Assy, Brake Master Cylinder
47202	47220-25012	Reservoir Sub-Assy, Brake Master Cylinder
47202	47220-26032	Reservoir Sub-Assy, Brake Master Cylinder
47202	47220-26034	Reservoir Sub-Assy, Brake Master Cylinder
47202	47220-26060	Reservoir Sub-Assy, Brake Master Cylinder
47202	47220-36021	Reservoir Sub-Assy, Clutch Master Cylinder
47202	90301-59149	Ring, O(For Reservoir Cap Set)
47202	31424-36011	Cap, Reservoir(For Clutch Master Cylinder)
47202	47230-20040	Cap, Clutch Master Cylinder Reservoir Filler
47210	47201-26070	Cylinder Assy, Master, W/o Booster
47210	47201-26100	Cylinder Assy, Master, W/o Booster
47210	47201-26110	Cylinder Assy, Master, W/o Booster
47210	90430-06104	Gasket(For Brake Actuator)
47210	04471-26020	Cylinder Kit, Brake Master
47210	04493-26030	Cylinder Kit, Brake Master
47210	04493-26060	Cylinder Kit, Brake Master
47210	90109-06077	Bolt(For Brake Master Cylinder)
47218	47218-26020	Plug, Master Cylinder Fluid Outlet
47218	90430-11001	Gasket(For Fluid Outlet Plug)
47219	90430-09253	Gasket(For Clutch Master Cylinder Accumulator)
47230	31440-35010	Cap, Clutch Master Cylinder Reservoir Filler
47230	47230-25020	Cap, Clutch Master Cylinder Reservoir Filler
47233	47233-95A00	Bracket, Reservoir
47236	47234-26030	Tube, Reservoir Brake
47236	47234-26031	Tube, Reservoir Brake
47236	90467-16141	Clip(For Clutch Reservoir Tube)
47238	47235-26030	Hose, Master Cylinder Bridge
47238	47235-26031	Hose, Master Cylinder Bridge
47264	47264-26020	Clevis, Master Cylinder Push Rod
47280	47281-30020	Valve Assy, Brake Master Cylinder Outlet Check
47280	90504-05001	Spring, Compression
47290	47280-26030	Valve Assy, Brake Master Cylinder Outlet Check
47299	47299-25010	Strainer, Master Cylinder Reservoir
47299	47299-26010	Strainer, Brake Master Cylinder Reservoir
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9165640822	91656-40822	New Genuine Part
9165640822	91651-60818	BOLTWWASHER
9338616016	93386-16016	New Genuine Part
9412041000	94120-41000	Nut(For Clutch Pedal Stopper)
9412041000	90170-A0002	Nut

OEM	Part name	Category
04471-26020	Cylinder Kit, Brake Master	Brake Master Cylinder ([02.1977 - ] (7702- ))
04493-26030	Cylinder Kit, Brake Master	Brake Master Cylinder ([02.1977 - ] (7702- ))
04493-26060	Cylinder Kit, Brake Master	Brake Master Cylinder ([02.1977 - ] (7702- ))
31424-36011	Cap, Reservoir(For Clutch Master Cylinder)	Brake Master Cylinder ([02.1977 - ] (7702- ))
31440-35010	Cap, Clutch Master Cylinder Reservoir Filler	Brake Master Cylinder ([02.1977 - ] (7702- ))
44734-26010	Bracket, Booster Support Or Rod Support	Brake Master Cylinder ([02.1977 - ] (7702- ))
44734-26020	Bracket, Booster Support Or Rod Support	Brake Master Cylinder ([02.1977 - ] (7702- ))
47201-26070	Cylinder Assy, Master, W/o Booster	Brake Master Cylinder ([02.1977 - ] (7702- ))
47201-26100	Cylinder Assy, Master, W/o Booster	Brake Master Cylinder ([02.1977 - ] (7702- ))
47201-26110	Cylinder Assy, Master, W/o Booster	Brake Master Cylinder ([02.1977 - ] (7702- ))
47218-26020	Plug, Master Cylinder Fluid Outlet	Brake Master Cylinder ([02.1977 - ] (7702- ))
47220-25012	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([02.1977 - ] (7702- ))
47220-25022	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([02.1977 - ] (7702- ))
47220-26021	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([02.1977 - ] (7702- ))
47220-26032	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([02.1977 - ] (7702- ))
47220-26034	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([02.1977 - ] (7702- ))
47220-26060	Reservoir Sub-Assy, Brake Master Cylinder	Brake Master Cylinder ([02.1977 - ] (7702- ))
47220-36021	Reservoir Sub-Assy, Clutch Master Cylinder	Brake Master Cylinder ([02.1977 - ] (7702- ))
47230-20040	Cap, Clutch Master Cylinder Reservoir Filler	Brake Master Cylinder ([02.1977 - ] (7702- ))
47230-25020	Cap, Clutch Master Cylinder Reservoir Filler	Brake Master Cylinder ([02.1977 - ] (7702- ))
47233-95A00	Bracket, Reservoir	Brake Master Cylinder ([02.1977 - ] (7702- ))
47234-26030	Tube, Reservoir Brake	Brake Master Cylinder ([02.1977 - ] (7702- ))
47234-26031	Tube, Reservoir Brake	Brake Master Cylinder ([02.1977 - ] (7702- ))
47235-26030	Hose, Master Cylinder Bridge	Brake Master Cylinder ([02.1977 - ] (7702- ))
47235-26031	Hose, Master Cylinder Bridge	Brake Master Cylinder ([02.1977 - ] (7702- ))
47264-26020	Clevis, Master Cylinder Push Rod	Brake Master Cylinder ([02.1977 - ] (7702- ))
47280-26030	Valve Assy, Brake Master Cylinder Outlet Check	Brake Master Cylinder ([02.1977 - ] (7702- ))
47281-30020	Valve Assy, Brake Master Cylinder Outlet Check	Brake Master Cylinder ([02.1977 - ] (7702- ))
47299-25010	Strainer, Master Cylinder Reservoir	Brake Master Cylinder ([02.1977 - ] (7702- ))
47299-26010	Strainer, Brake Master Cylinder Reservoir	Brake Master Cylinder ([02.1977 - ] (7702- ))
90109-06077	Bolt(For Brake Master Cylinder)	Brake Master Cylinder ([02.1977 - ] (7702- ))
90170-A0002	Nut	Brake Master Cylinder ([02.1977 - ] (7702- ))
90179-08146	Nut	Brake Master Cylinder ([02.1977 - ] (7702- ))
90179-08204	Nut	Brake Master Cylinder ([02.1977 - ] (7702- ))
90301-59149	Ring, O(For Reservoir Cap Set)	Brake Master Cylinder ([02.1977 - ] (7702- ))
90401-16002	Bolt, Reservoir Union(For Brake Master Cylinder Side)	Brake Master Cylinder ([02.1977 - ] (7702- ))
90405-13137	Union, Reservoir(For Brake Master Cylinder Side)	Brake Master Cylinder ([02.1977 - ] (7702- ))
90430-06104	Gasket(For Brake Actuator)	Brake Master Cylinder ([02.1977 - ] (7702- ))
90430-09253	Gasket(For Clutch Master Cylinder Accumulator)	Brake Master Cylinder ([02.1977 - ] (7702- ))
90430-11001	Gasket(For Fluid Outlet Plug)	Brake Master Cylinder ([02.1977 - ] (7702- ))
90430-16242	Gasket, W/head Straight Screw Plug	Brake Master Cylinder ([02.1977 - ] (7702- ))
90467-16141	Clip(For Clutch Reservoir Tube)	Brake Master Cylinder ([02.1977 - ] (7702- ))
90504-05001	Spring, Compression	Brake Master Cylinder ([02.1977 - ] (7702- ))
91651-60818	BOLTWWASHER	Brake Master Cylinder ([02.1977 - ] (7702- ))
91656-40822	New Genuine Part	Brake Master Cylinder ([02.1977 - ] (7702- ))
93386-16016	New Genuine Part	Brake Master Cylinder ([02.1977 - ] (7702- ))
94120-41000	Nut(For Clutch Pedal Stopper)	Brake Master Cylinder ([02.1977 - ] (7702- ))
