LH188

Toyota HIACE · 1998 · 4,640 parts · 267 categories

4,640 items

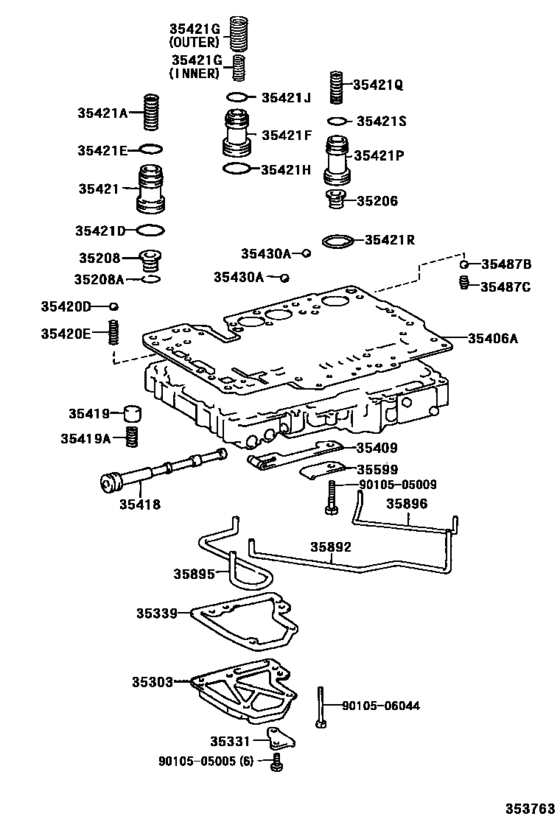

Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC) 37

#	OEM	Part name
35208	35208-26010	Spring Sub-Assy, B-2 Accumulator
35208	90521-22004	Ring, Hole Snap (For B-3 Accumulator Spring)
35303	35303-14010	Strainer Sub-Assy, Oil
35331	35331-14010	Cover, Oil Strainer
35339	35339-28020	Gasket, Oil Strainer
35406	35406-26070	Plate Sub-Assy, Valve Body
35409	35409-30010	Spring Sub-Assy, Manual Detent
35409	35409-30030	Spring Sub-Assy, Manual Detent
35418	35418-30050	Valve, Manual
35419	35419-22010	Valve, Check, No.1
35419	90501-16083	Spring, Compression (For Check Valve)
35420	35495-22020	Ball (For Transfer Upper Valve Body)
35420	35496-22030	Ball (For Lower Valve Body)
35420	90501-04727	Spring (For Lower Valve Body)
35421	35421-26010	Piston, Accumulator, No.1
35421	90501-25033	Spring, Compression (For Accumulator Piston No.1)
35421	90301-29011	Ring (For Accumulator Piston No.1)
35421	90301-23010	Ring (For Accumulator Piston No.1)
35421	35423-30010	Piston, Accumulator, No.2
35421	90501-16093	Spring, Compression (For Accumulator Piston No.1)
35421	90501-18041	Spring, Compression (For Accumulator Piston No.2)
35421	90301-26012	Ring (For Accumulator Piston No.1)
35421	90301-18010	Ring (For Accumulator Piston No.2)
35421	35424-26010	Piston, Accumulator, No.3
35421	90501-20063	Spring Sub-Assy, C-1 Accumulator
35421	90301-21012	Ring (For Accumulator Piston No.3)
35430	90360-06023	Ball (For Rear Upper Valve Body)
35487	35487-30010	Ball, Check, No.4
35487	90504-05006	Spring, Compression (For Check Ball)
35599	35599-30010	Cover, Manual Detent Spring
35599	35599-30030	Cover, Manual Detent Spring
35892	35892-28020	Tube, Overdrive Brake
35895	35895-14011	Tube, Front Clutch Apply
35896	35896-30020	Tube, Overdrive Switch Apply
9010505005	90105-05005	Bolt (For Transfer Relief Valve Plate)
9010505009	90105-05009	New Genuine Part
9010506044	90105-06044	New Genuine Part

OEM	Part name	Category
35208-26010	Spring Sub-Assy, B-2 Accumulator	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35303-14010	Strainer Sub-Assy, Oil	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35331-14010	Cover, Oil Strainer	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35339-28020	Gasket, Oil Strainer	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35406-26070	Plate Sub-Assy, Valve Body	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35409-30010	Spring Sub-Assy, Manual Detent	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35409-30030	Spring Sub-Assy, Manual Detent	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35418-30050	Valve, Manual	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35419-22010	Valve, Check, No.1	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35421-26010	Piston, Accumulator, No.1	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35423-30010	Piston, Accumulator, No.2	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35424-26010	Piston, Accumulator, No.3	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35487-30010	Ball, Check, No.4	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35495-22020	Ball (For Transfer Upper Valve Body)	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35496-22030	Ball (For Lower Valve Body)	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35599-30010	Cover, Manual Detent Spring	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35599-30030	Cover, Manual Detent Spring	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35892-28020	Tube, Overdrive Brake	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35895-14011	Tube, Front Clutch Apply	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
35896-30020	Tube, Overdrive Switch Apply	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90105-05005	Bolt (For Transfer Relief Valve Plate)	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90105-05009	New Genuine Part	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90105-06044	New Genuine Part	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90301-18010	Ring (For Accumulator Piston No.2)	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90301-21012	Ring (For Accumulator Piston No.3)	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90301-23010	Ring (For Accumulator Piston No.1)	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90301-26012	Ring (For Accumulator Piston No.1)	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90301-29011	Ring (For Accumulator Piston No.1)	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90360-06023	Ball (For Rear Upper Valve Body)	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90501-04727	Spring (For Lower Valve Body)	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90501-16083	Spring, Compression (For Check Valve)	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90501-16093	Spring, Compression (For Accumulator Piston No.1)	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90501-18041	Spring, Compression (For Accumulator Piston No.2)	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90501-20063	Spring Sub-Assy, C-1 Accumulator	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90501-25033	Spring, Compression (For Accumulator Piston No.1)	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90504-05006	Spring, Compression (For Check Ball)	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
90521-22004	Ring, Hole Snap (For B-3 Accumulator Spring)	Valve Body & Oil Strainer (Atm) ([07.2000 - ] A45DF (0007- )LH178,186,188..4FC)
