Search › Model › LH184

LH184

Toyota HIACE · 1998 · 4,367 parts · 249 categories

4,367 items

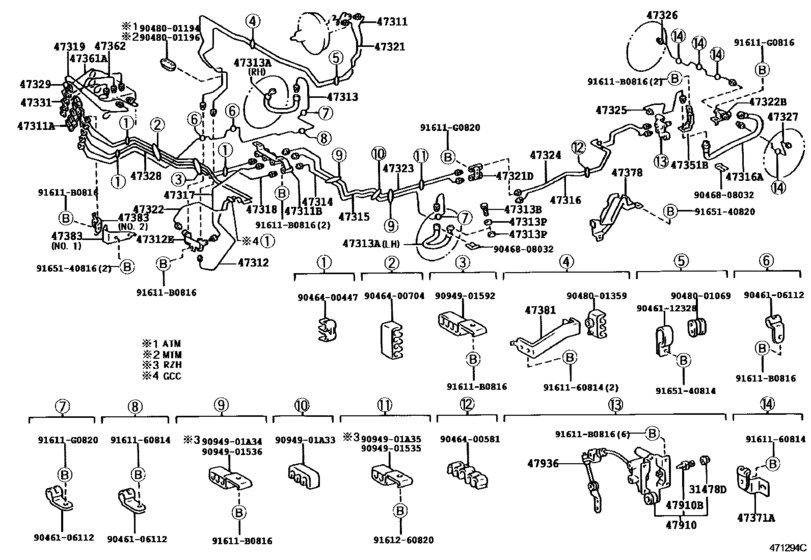

Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL) 75

#	OEM	Part name
31478	31478-30010	Bleeder Plug Cap
47311	47311-26441	Tube, Front Brake, No.1
47311	47311-2F020	Tube, Front Brake, No.1
47311	90904-12046	Way(For Front Brake Tube)
47311	90414-10022	Way, No.1(For Front Brake Tube)
47311	90904-12011	Way, No.1(For Front Brake Tube)
47312	47312-26300	Tube, Front Brake, No.2
47312	90904-13001	Way, No.2(For Front Brake Tube)
47313	47313-26141	Tube, Front Brake, No.3
47313	47313-26180	Tube, Front Brake, No.3
47313	90947-02C04	Hose, Flexible, No.1(For Front)
47313	90947-02C05	Hose, Flexible, No.1(For Front)
47313	90947-02C11	Hose, Flexible, No.1(For Front)
47313	90947-02C12	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47314	47314-26180	Tube, Front Brake, No.4
47314	47314-26190	Tube, Front Brake, No.4
47315	47315-26140	Tube, Front Brake, No.5
47315	47315-26150	Tube, Front Brake, No.5
47316	47316-26160	Tube, Front Brake, No.6
47316	96940-32757	Hose, Flexible(For Rear Brake Tube)
47316	96940-33457	Hose, Flexible(For Rear Brake Tube)
47317	47317-26140	Tube, Front Brake, No.7
47318	47318-26040	Tube, Front Brake, No.8
47319	47319-26090	Tube, Front Brake, No.9
47321	47321-26351	Tube, Rear Brake, No.1
47321	47321-26680	Tube, Rear Brake, No.1
47321	90412-10166	Way, No.1(For Rear Brake Tube)
47322	47322-26210	Tube, Rear Brake, No.2
47322	90413-10243	Way, No.2(For Rear Brake Tube)
47323	47323-26340	Tube, Rear Brake, No.3
47324	47324-26200	Tube, Rear Brake, No.4
47325	47325-26340	Tube, Rear Brake, No.5
47325	47325-26350	Tube, Rear Brake, No.5
47326	47326-26360	Tube, Rear Brake, No.6
47327	47327-26281	Tube, Rear Brake, No.7
47328	47328-26030	Tube, Rear Brake, No.8
47329	47329-26090	Tube, Rear Brake, No.9
47331	47331-26080	Tube, Rear Brake, No.10
47351	47351-26120	Bracket, Flexible Hose, No.1
47351	47351-26171	Bracket, Flexible Hose, No.1
47361	47361-26040	Tube, Front Brake, No.10
47362	47362-26040	Tube, Front Brake, No.11
47371	47371-26180	Clamp, Brake Tube, No.1
47378	47378-26021	Protector, Brake Tube
47383	47383-26050	Bracket, Connector
47910	47910-26261	Valve Assy, Load Sensing Proportioning
47910	47547-27030	Plug, Bleeder(For Front Disc Brake)
47936	47936-26020	Shackle, Load Sensing Spring, No.2
91611	91611-B0816	Bolt
91611	91611-G0816	Bolt
91611	91611-G0820	Bolt
9094901	90949-01A33	New Genuine Part
9094901	90949-01A34	New Genuine Part
9094901	90949-01A35	New Genuine Part
9046106112	90461-06112	Clamp, Brake Tube, No.6
9046112328	90461-12328	New Genuine Part
9046400447	90464-00447	Clamp, Brake Tube, No.3
9046400581	90464-00581	New Genuine Part
9046400704	90464-00704	Clamp, Brake Tube, No.3
9046808032	90468-08032	CLIP
9048001069	90480-01069	Grommet(For Brake Tube)
9048001194	90480-01194	New Genuine Part
9048001196	90480-01196	New Genuine Part
9048001359	90480-01359	New Genuine Part
9094901535	90949-01535	New Genuine Part
9094901536	90949-01536	Clamp, Brake Tube, No.15
9094901592	90949-01592	New Genuine Part
9161160814	91611-60814	Bolt
9161260820	91612-60820	Bolt(For Clutch Release Cylinder Setting)
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
9165140816	91651-40816	BOLT
9165140820	91651-40820	Bolt

OEM	Part name	Category
31478-30010	Bleeder Plug Cap	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47311-26441	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47311-2F020	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47312-26300	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47313-26141	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47313-26180	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47314-26180	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47314-26190	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47315-26140	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47315-26150	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47316-26160	Tube, Front Brake, No.6	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47317-26140	Tube, Front Brake, No.7	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47318-26040	Tube, Front Brake, No.8	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47319-26090	Tube, Front Brake, No.9	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47321-26351	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47321-26680	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47322-26210	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47323-26340	Tube, Rear Brake, No.3	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47324-26200	Tube, Rear Brake, No.4	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47325-26340	Tube, Rear Brake, No.5	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47325-26350	Tube, Rear Brake, No.5	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47326-26360	Tube, Rear Brake, No.6	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47327-26281	Tube, Rear Brake, No.7	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47328-26030	Tube, Rear Brake, No.8	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47329-26090	Tube, Rear Brake, No.9	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47331-26080	Tube, Rear Brake, No.10	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47351-26120	Bracket, Flexible Hose, No.1	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47351-26171	Bracket, Flexible Hose, No.1	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47361-26040	Tube, Front Brake, No.10	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47362-26040	Tube, Front Brake, No.11	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47371-26180	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47378-26021	Protector, Brake Tube	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47383-26050	Bracket, Connector	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47547-27030	Plug, Bleeder(For Front Disc Brake)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47910-26261	Valve Assy, Load Sensing Proportioning	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
47936-26020	Shackle, Load Sensing Spring, No.2	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90080-11228	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90412-10166	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90413-10243	Way, No.2(For Rear Brake Tube)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90414-10022	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90461-06112	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90461-12328	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90464-00447	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90464-00581	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90464-00704	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90468-08032	CLIP	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90480-01069	Grommet(For Brake Tube)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90480-01194	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90480-01196	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90480-01359	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90904-12011	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90904-12046	Way(For Front Brake Tube)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90904-13001	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90947-02C04	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90947-02C05	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90947-02C11	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90947-02C12	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90949-01535	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90949-01536	Clamp, Brake Tube, No.15	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90949-01592	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90949-01A33	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90949-01A34	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
90949-01A35	New Genuine Part	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
91611-60814	Bolt	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
91611-B0816	Bolt	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
91611-G0816	Bolt	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
91611-G0820	Bolt	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
91612-60820	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
91651-40814	BOLT	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
91651-40816	BOLT	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
91651-40820	Bolt	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
96940-32757	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
96940-33457	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([08.2001 - ] W(ABS) (9808- )GCC ; (0108- )ARL)
