Search › Model › LH168

LH168

Toyota HIACE · 1998 · 4,789 parts · 265 categories

4,789 items

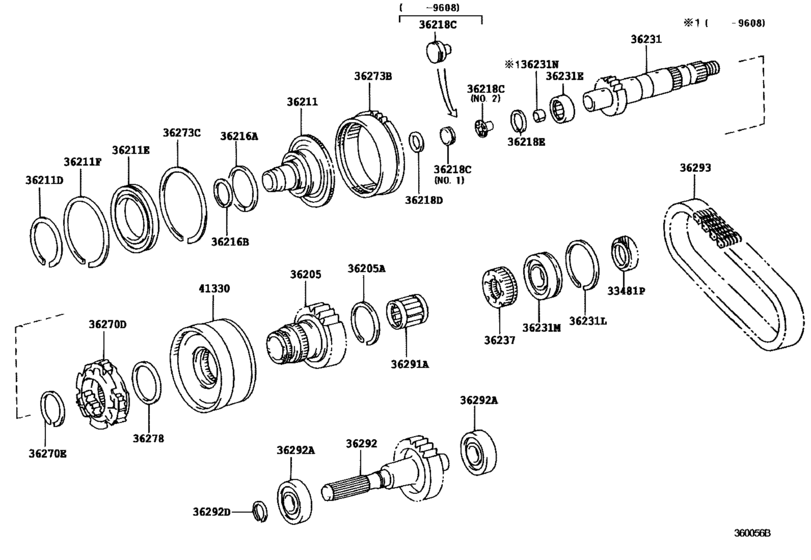

Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD) 42

#	OEM	Part name
33481	33481-26080	Gear, Speedometer Drive (For Transfer)
36205	36205-26020	Sprocket Sub-Assy, Transfer Drive
36211	36211-28040	Shaft, Transfer Input
36211	90520-72001	Ring, Hole Snap (For Transfer Input Shaft)
36211	90520-72002	Ring, Hole Snap (For Transfer Input Shaft)
36211	90520-72003	Ring, Hole Snap (For Transfer Input Shaft)
36211	90520-72004	Ring, Hole Snap (For Transfer Input Shaft)
36211	90520-72005	Ring, Hole Snap (For Transfer Input Shaft)
36211	90363-75001	Bearing (For Transfer Input Shaft)
36211	90520-99001	Ring, Shaft Snap (For Transfer Input Shaft)
36216	36216-28010	Ring, Transfer Input Shaft Seal, No.1
36216	36216-28020	Ring, Transfer Input Shaft Seal, No.2
36218	36218-28030	Plug, Transfer Input Shaft
36218	36218-28040	Plug, Transfer Input Shaft
36218	96721-24028	Ring, O(For Oil Strainer)
36218	90521-38004	Ring, Hole Snap (For Transfer Input Shaft Plug)
36231	36231-28040	Shaft, Transfer Output, Rear
36231	90364-31007	Bearing, Needle Roller (For Transfer Output Shaft Front)
36231	90520-71221	Ring, Shaft Snap (For Front Bearing)
36231	90363-32006	Bearing (For Transfer Counter Gear)
36237	36255-28020	Hub, Transfer Clutch
36270	36270-28021	Gear Assy, Manual Transfer Planetary
36270	90520-48002	Ring, Shaft Snap (For Manual Transfer Planetary Gear)
36270	90520-48003	Ring, Shaft Snap (For Manual Transfer Planetary Gear)
36270	90520-48004	Ring, Shaft Snap (For Manual Transfer Planetary Gear)
36270	90520-48005	Ring, Shaft Snap (For Manual Transfer Planetary Gear)
36270	90520-48006	Ring, Shaft Snap (For Manual Transfer Planetary Gear)
36273	36273-28020	Gear, Manual Transfer Planetary Ring
36273	90521-99108	Ring, Hole Snap (For Manual Transfer Planetary Ring Gear)
36278	36278-28010	Washer, Manual Transfer Planetary Carrier
36278	36278-28020	Washer, Manual Transfer Planetary Carrier
36278	36278-28030	Washer, Manual Transfer Planetary Carrier
36278	36278-28040	Washer, Manual Transfer Planetary Carrier
36278	36278-28050	Washer, Manual Transfer Planetary Carrier
36278	36278-28060	Washer, Manual Transfer Planetary Carrier
36291	90364-40001	Bearing (For Transfer High Speed Output Gear)
36292	36292-28032	Sprocket, Transfer Driven
36292	90363-28004	Bearing, Radial Ball (For Transfer Input Gear)
36292	90363-30064	Bearing (For Transfer Output Front Shaft)
36293	36293-28021	Chain, Transfer Front Drive
41330	41330-26011	Coupling Assy, Center Differential Control
41330	41330-26012	Coupling Assy, Center Differential Control

OEM	Part name	Category
33481-26080	Gear, Speedometer Drive (For Transfer)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36205-26020	Sprocket Sub-Assy, Transfer Drive	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36211-28040	Shaft, Transfer Input	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36216-28010	Ring, Transfer Input Shaft Seal, No.1	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36216-28020	Ring, Transfer Input Shaft Seal, No.2	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36218-28030	Plug, Transfer Input Shaft	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36218-28040	Plug, Transfer Input Shaft	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36231-28040	Shaft, Transfer Output, Rear	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36255-28020	Hub, Transfer Clutch	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36270-28021	Gear Assy, Manual Transfer Planetary	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36273-28020	Gear, Manual Transfer Planetary Ring	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36278-28010	Washer, Manual Transfer Planetary Carrier	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36278-28020	Washer, Manual Transfer Planetary Carrier	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36278-28030	Washer, Manual Transfer Planetary Carrier	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36278-28040	Washer, Manual Transfer Planetary Carrier	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36278-28050	Washer, Manual Transfer Planetary Carrier	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36278-28060	Washer, Manual Transfer Planetary Carrier	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36292-28032	Sprocket, Transfer Driven	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
36293-28021	Chain, Transfer Front Drive	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
41330-26011	Coupling Assy, Center Differential Control	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
41330-26012	Coupling Assy, Center Differential Control	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90363-28004	Bearing, Radial Ball (For Transfer Input Gear)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90363-30064	Bearing (For Transfer Output Front Shaft)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90363-32006	Bearing (For Transfer Counter Gear)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90363-75001	Bearing (For Transfer Input Shaft)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90364-31007	Bearing, Needle Roller (For Transfer Output Shaft Front)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90364-40001	Bearing (For Transfer High Speed Output Gear)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90520-48002	Ring, Shaft Snap (For Manual Transfer Planetary Gear)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90520-48003	Ring, Shaft Snap (For Manual Transfer Planetary Gear)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90520-48004	Ring, Shaft Snap (For Manual Transfer Planetary Gear)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90520-48005	Ring, Shaft Snap (For Manual Transfer Planetary Gear)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90520-48006	Ring, Shaft Snap (For Manual Transfer Planetary Gear)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90520-71221	Ring, Shaft Snap (For Front Bearing)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90520-72001	Ring, Hole Snap (For Transfer Input Shaft)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90520-72002	Ring, Hole Snap (For Transfer Input Shaft)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90520-72003	Ring, Hole Snap (For Transfer Input Shaft)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90520-72004	Ring, Hole Snap (For Transfer Input Shaft)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90520-72005	Ring, Hole Snap (For Transfer Input Shaft)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90520-99001	Ring, Shaft Snap (For Transfer Input Shaft)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90521-38004	Ring, Hole Snap (For Transfer Input Shaft Plug)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
90521-99108	Ring, Hole Snap (For Manual Transfer Planetary Ring Gear)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
96721-24028	Ring, O(For Oil Strainer)	Transfer Gear ([08.1995 - ] (9308-9508)KZH106,116,126 ; (9508- )4WD)
