LH168

Toyota HIACE · 1998 · 4,789 parts · 265 categories

4,789 items

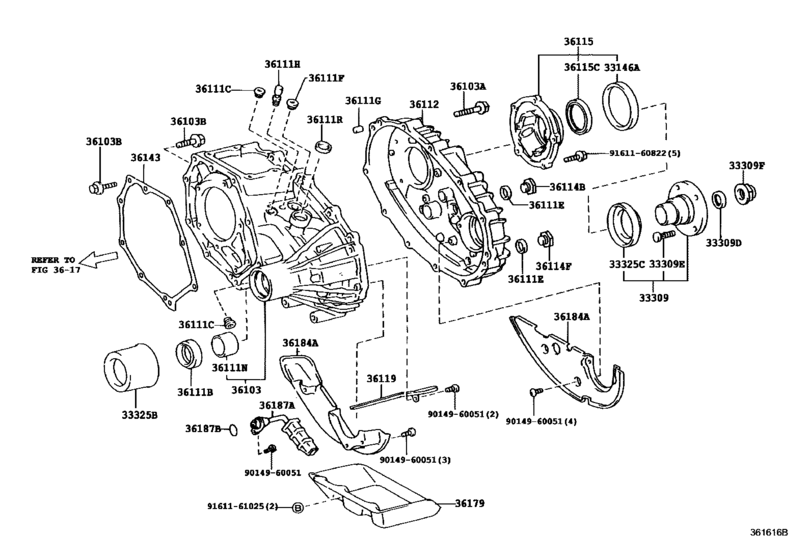

Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD) 40

#	OEM	Part name
33146	33146-28020	Deflector, Transfer Extension Housing Dust
33309	33309-28021	Flange Sub-Assy, Transfer Output Shaft Companion
33309	90312-23001	Seal, Oil(For Transfer Output Shaft Companion Flange)
33309	90114-10017	Bolt (For Transfer Output Shaft Companion Flange)
33309	90114-10061	Bolt (For Transfer Output Shaft Companion Flange)
33309	90179-20010	Nut (For Transfer Output Shaft Companion Flange)
33325	33325-28020	Deflector, Dust (For Transfer Extension Front Housing)
33325	33325-28040	Deflector, Dust (For Transfer Extension Rear Housing)
36103	36103-26020	Case Sub-Assy, Transfer
36103	90119-10610	Bolt (For Transfer Case)
36103	91612-61055	Bolt (For Transfer Case)
36103	90119-10615	Bolt (For Transfer Case & Adapter Setting)
36111	90311-37003	Seal, Type T, Oil (For Transfer Output Shaft)
36111	90341-12014	Plug, W/head Straight Screw, No.1(For Cylinder Block)
36111	90430-18008	Gasket
36111	90430-T0021	Gasket(For Manual Transmission Filler Plug)
36111	90341-14008	Plug, W/head Taper Screw, No.1
36111	90250-10214	Pin, Straight(For End Plate)
36111	90930-03085	Plug, Breather
36111	90999-73139	Bush (For Transfer Case)
36111	96411-12800	Plug, Tight, No.2
36111	96411-42800	Plug, Tight, No.1
36112	36112-26020	Case, Transfer, Rear
36114	90341-18006	Plug (No magnet)
36114	90341-18057	Drain Plug (with Magnet)
36115	36105-28020	Housing, Transfer Extension
36115	90311-52021	Seal, Type T Oil (For Transfer Extension Housing)
36119	36119-25010	Receiver, Transfer Oil, No.1
36143	36143-28020	Gasket, Transfer Case, Front
36179	36179-28020	Protector, Transfer Case Lower
36179	36179-25010	Protector, Transfer Case Lower
36179	36179-28030	Protector, Transfer Case Lower
36184	36184-26010	Separator, Transfer Oil
36184	36184-28030	Separator, Transfer Oil
36187	36187-25010	Strainr, Transfer Oil, No.1
36187	96721-24017	Ring, O (For Transfer Oil Strainer)
9014960051	90149-60051	New Genuine Part
9161160822	91611-60822	Bolt
9161161025	91611-61025	Bolt(For Transaxle & Engine Setting)
9161161025	91612-61025	Bolt (For Control Shaft Cover)

OEM	Part name	Category
33146-28020	Deflector, Transfer Extension Housing Dust	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
33309-28021	Flange Sub-Assy, Transfer Output Shaft Companion	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
33325-28020	Deflector, Dust (For Transfer Extension Front Housing)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
33325-28040	Deflector, Dust (For Transfer Extension Rear Housing)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
36103-26020	Case Sub-Assy, Transfer	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
36105-28020	Housing, Transfer Extension	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
36112-26020	Case, Transfer, Rear	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
36119-25010	Receiver, Transfer Oil, No.1	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
36143-28020	Gasket, Transfer Case, Front	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
36179-25010	Protector, Transfer Case Lower	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
36179-28020	Protector, Transfer Case Lower	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
36179-28030	Protector, Transfer Case Lower	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
36184-26010	Separator, Transfer Oil	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
36184-28030	Separator, Transfer Oil	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
36187-25010	Strainr, Transfer Oil, No.1	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90114-10017	Bolt (For Transfer Output Shaft Companion Flange)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90114-10061	Bolt (For Transfer Output Shaft Companion Flange)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90119-10610	Bolt (For Transfer Case)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90119-10615	Bolt (For Transfer Case & Adapter Setting)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90149-60051	New Genuine Part	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90179-20010	Nut (For Transfer Output Shaft Companion Flange)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90250-10214	Pin, Straight(For End Plate)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90311-37003	Seal, Type T, Oil (For Transfer Output Shaft)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90311-52021	Seal, Type T Oil (For Transfer Extension Housing)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90312-23001	Seal, Oil(For Transfer Output Shaft Companion Flange)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90341-12014	Plug, W/head Straight Screw, No.1(For Cylinder Block)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90341-14008	Plug, W/head Taper Screw, No.1	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90341-18006	Plug (No magnet)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90341-18057	Drain Plug (with Magnet)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90430-18008	Gasket	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90930-03085	Plug, Breather	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
90999-73139	Bush (For Transfer Case)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
91611-60822	Bolt	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
91611-61025	Bolt(For Transaxle & Engine Setting)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
91612-61025	Bolt (For Control Shaft Cover)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
91612-61055	Bolt (For Transfer Case)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
96411-12800	Plug, Tight, No.2	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
96411-42800	Plug, Tight, No.1	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
96721-24017	Ring, O (For Transfer Oil Strainer)	Transfer Case & Extension Housing ([03.1995 - ] (9503- )4WD)
