LH168

Toyota HIACE · 1998 · 4,789 parts · 265 categories

← Back to categories

4,789 items

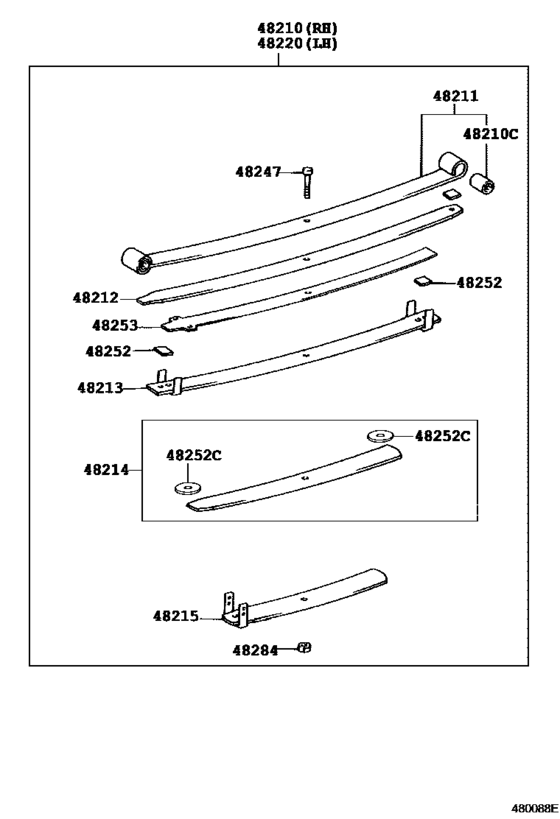

Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188) 16

#	OEM	Part name
48210	48210-2F071	Spring Assy, Rear Rh
48210	90389-14007	Bush(For Rear Spring Leaf)
48210	90389-14036	Bush(For Rear Spring Leaf)
48211	48201-2F070	Leaf, Rear Spring, No.1
48212	48212-2F070	Leaf, Rear Spring, No.2
48212	48212-2F080	Leaf, Rear Spring, No.2
48213	48202-2F070	Leaf, Rear Spring, No.3
48214	48203-2F070	Leaf, Rear Spring, No.4
48214	48203-2F080	Leaf, Rear Spring, No.4
48215	48204-2F071	Leaf, Rear Spring, No.5
48215	48204-2F081	Leaf, Rear Spring, No.5
48247	48247-26720	Bolt, Rear Spring, Center
48252	48252-26070	Silencer, Front Spring
48252	48252-26401	Silencer, Rear Spring
48253	48255-26620	Spacer, Rear Spring, No.1
48284	48284-37130	Nut, Front Spring Center Bolt

OEM	Part name	Category
48201-2F070	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188)
48202-2F070	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188)
48203-2F070	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188)
48203-2F080	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188)
48204-2F071	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188)
48204-2F081	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188)
48210-2F071	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188)
48212-2F070	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188)
48212-2F080	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188)
48247-26720	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188)
48252-26070	Silencer, Front Spring	Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188)
48252-26401	Silencer, Rear Spring	Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188)
48255-26620	Spacer, Rear Spring, No.1	Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188)
48284-37130	Nut, Front Spring Center Bolt	Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188)
90389-14007	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188)
90389-14036	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([08.1989 - ] 5-LEAF(TYPE A OR TYPE F) (8908- )LH109,113,119,168,17#,188)

Source: Public OEM parts-catalog data
Variants: 1 / 2
Category: 265
Collected: 2026-08-03
