| 04474-35070 |
Cylinder Kit, Rear Wheel |

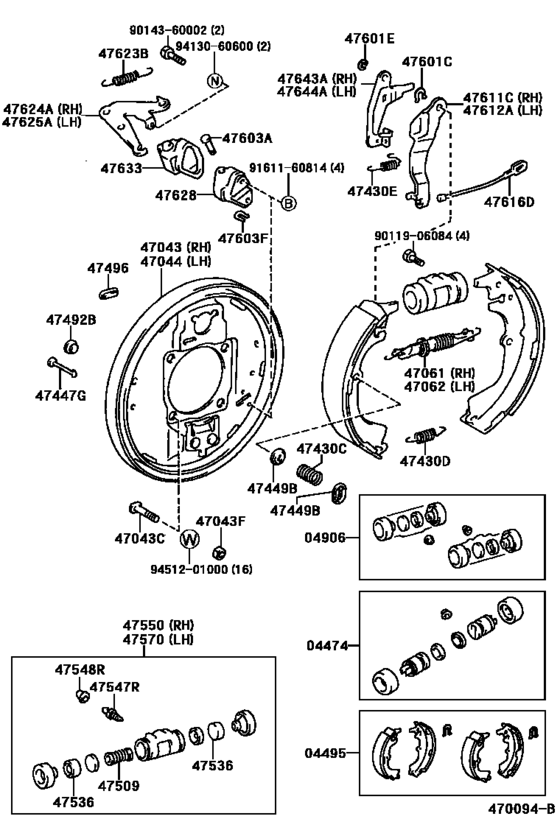

Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 04495-26190 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 04906-35140 |
Cup Kit, Rear Wheel Cylinder |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 31478-30010 |
Bleeder Plug Cap |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47043-26130 |
Plate Sub-Assy, Brake Backing, Rear Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47044-26130 |
Plate Sub-Assy, Brake Backing, Rear Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47061-35020 |
Strut Set, Parking Brake Shoe, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47062-35020 |
Strut Set, Parking Brake Shoe, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47447-20010 |
Pin, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47449-30020 |
Cup, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47491-20011 |
Plug, Hole(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47492-06010 |
Plug, Shoe Inspection(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47492-28010 |
Plug, Shoe Inspection(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47547-20030 |
Plug, Bleeder(For Power Steering By-Pass Valve) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47550-35180 |
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47611-26050 |
Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47612-26050 |
Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47616-26040 |
Wire, Parking Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47624-26060 |
Crank, Parking Brake Bell, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47625-26060 |
Crank, Parking Brake Bell, Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47628-26010 |
Bracket Sub-Assy, Bell Crank, Rh (For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47633-26010 |
Boot, Parking Brake Bellcrank |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47643-26010 |
Lever, Rear Brake Automatic Adjust, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47643-26020 |
Lever, Rear Brake Automatic Adjust, Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47644-26010 |
Lever, Rear Brake Automatic Adjust, Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 47644-26020 |
Lever, Rear Brake Automatic Adjust, Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 90029-60009 |
Spring Sub-Assy, Rear Wheel Cylinder Piston |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 90114-10002 |
Bolt, Serration (For Rear Axle Flange) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 90119-06084 |
Bolt(For Rear Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 90143-60002 |
Bolt, Bellcrank Stopper(For Parking Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 90179-10041 |
Nut(For Backing Plate To Rear Axle Housing Setting) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 90213-06013 |
Washer, Type C(For Parking Brake Shoe) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 90213-07010 |
Washer, Type C(For Parking Brake Shoe) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 90249-08075 |
Pin, Parking Brake Bellcrank |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 90501-20012 |
Spring(For Front Brake Shoe Hold Down) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 90506-20070 |
Spring, Tension(For Rear Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 90507-12036 |
Spring, Tension(For Rear Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 90507-23013 |
Spring, Tension(For Parking Brake Bell Crank Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 91611-60814 |
Bolt |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 94130-60600 |
Nut, Wire Adjusting, No.1 |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 94512-01000 |
Washer, No.1 (For Propeller Shaft & Differential Setting) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
| 96160-00500 |
Ring, E(For Over Center Lever) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH102,104,105,11#,164,172,174,RZH10#, 11#..LHD) |
