LH164

Toyota HIACE · 2000 · 4,168 parts · 242 categories
LH164 ×

← Back to categories

4,168 items

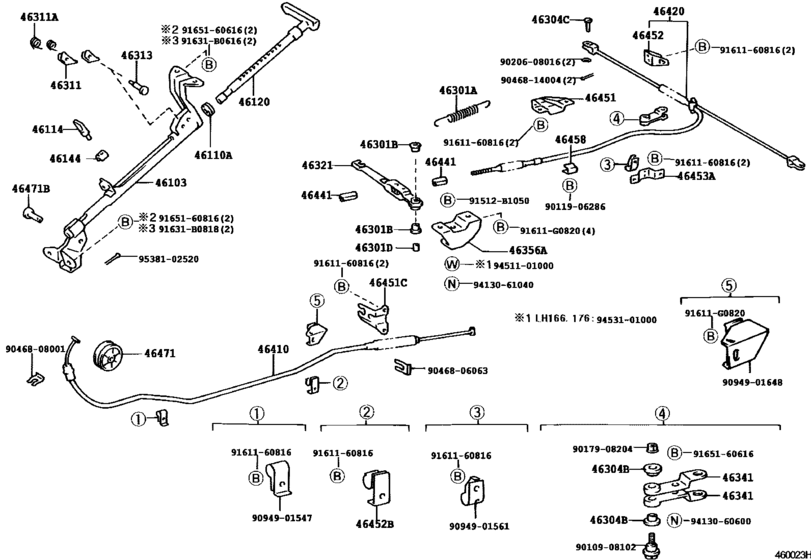

Parking Brake & Cable ([08.1989 - ] (8908- )LH102,104,105,11#,164,166,17#,RZH10#, 11#..LHD) 53
#OEMPart name
46103 46103-26170 Guide Sub-Assy, Parking Brake Plunger
46110 90386-11195 Bush Or Ring, O (For Parking Brake Plunger)
46114 46114-20010 Pin(For Parking Brake Handle Set)
46120 46120-26120 Plunger Assy, Parking Brake
46144 46144-30020 Anti-Rattle, Parking Brake Plunger
46301 90506-27001 Spring, Tension(For Intermediate Lever)
46301 90386-16009 Bush(For Intermediate Lever)
46301 90387-10110 Collar(For Intermediate Lever)
46304 90385-12029 Bush(For Parking Brake Equalizer)
46304 90240-08028 Pin, W/hole (For Column Shift Gear Selecting Rod)
46311 46311-26010 Pawl, Parking Brake
46311 90508-08106 Spring, Torsion(For Parking Brake Plunger)
46313 46313-40010 Pin, Parking Brake Pawl
46321 46321-26130 Lever, Parking Brake Intermediate
46341 46341-26050 Equalizer, Parking Brake
46356 46356-26120 Bracket, Intermediate Lever(For Parking Brake)
46410 46410-26320 Cable Assy, Parking Brake, No.1
46420 46420-26311 Cable Assy, Parking Brake, No.2
46441 46441-30030 Nut, Wire Adjusting, No.1
46451 46452-26100 Bracket, Cable Support
46451 46451-26110 Bracket, Parking Brake Cable Support, No.1
46452 46452-26111 Bracket, Parking Brake Cable Support, No.2
46452 90949-01548 Bracket, Cable Support, No.2
46453 46453-26010 Bracket, Cable Support, No.3
46458 46458-28010 Retainer, Cable
46471 46471-20010 Pulley, Wire
46471 90240-08017 Pin, W/hole(For Parking Brake Cable)
91512 91512-B1050 BOLT FLANGE
91611 91611-G0820 Bolt
91631 91631-B0616 BOLT WWASHER
91631 91631-B0818 BOLTWWASHER
9010908102 90109-08102 NUT
9011906286 90119-06286 New Genuine Part
9011906286 91611-B0612 New Genuine Part
9017908204 90179-08204 Nut
9017908204 90080-18070 NUT, WWASHER
9020608016 90206-08016 Washer, Wave (For Low Speed Connecting Rod)
9046806063 90468-06063 CLIP
9046808001 90468-08001 CLIP
9046814004 90468-14004 Union, Auxiliary Fuel Band
9094901547 90949-01547 New Genuine Part
9094901561 90949-01561 New Genuine Part
9094901648 90949-01648 New Genuine Part
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9165160616 91651-60616 BOLT
9165160816 91651-60816 BOLT
9165160816 90080-11396 Bolt
9413060600 94130-60600 Nut, Wire Adjusting, No.1
9413061040 94130-61040 New Genuine Part
9451101000 94511-01000 Washer(For Rear Drive Shaft)
9453101000 94531-01000 WASHER
9538102520 95381-02520 PINCOTTER
