LH162

Toyota HIACE · 1998 · 4,399 parts · 244 categories
LH162 ×

← Back to categories

4,399 items

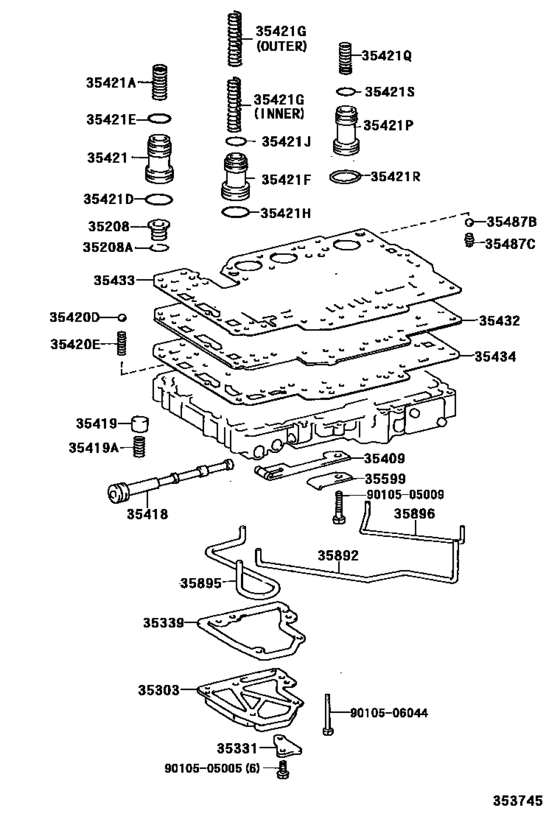

Valve Body & Oil Strainer (Atm) ([08.2000 - ] A45DL (0008- )LH162,172,184..4FC) 81
#OEMPart name
35208 35208-26010 Spring Sub-Assy, B-2 Accumulator
35208 90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)
35303 35303-14010 Strainer Sub-Assy, Oil
35331 35331-14010 Cover, Oil Strainer
35339 35339-28020 Gasket, Oil Strainer
35408 35408-30010 Plug Sub-Assy, Primary Down Shift
35409 35409-30010 Spring Sub-Assy, Manual Detent
35409 35409-30030 Spring Sub-Assy, Manual Detent
35418 35418-30050 Valve, Manual
35419 35419-22010 Valve, Check, No.1
35419 90501-16083 Spring, Compression (For Check Valve)
35420 35495-22020 Ball (For Transfer Upper Valve Body)
35420 35496-22030 Ball (For Lower Valve Body)
35420 90501-04727 Spring (For Lower Valve Body)
35421 35421-26010 Piston, Accumulator, No.1
35421 90501-25033 Spring, Compression (For Accumulator Piston No.1)
35421 90301-29011 Ring (For Accumulator Piston No.1)
35421 90301-23010 Ring (For Accumulator Piston No.1)
35421 35423-30010 Piston, Accumulator, No.2
35421 90501-16093 Spring, Compression (For Accumulator Piston No.1)
35421 90501-18041 Spring, Compression (For Accumulator Piston No.2)
35421 90301-26012 Ring (For Accumulator Piston No.1)
35421 90301-18010 Ring (For Accumulator Piston No.2)
35421 35424-26010 Piston, Accumulator, No.3
35421 90501-20063 Spring Sub-Assy, C-1 Accumulator
35421 90301-21012 Ring (For Accumulator Piston No.3)
35422 35422-22010 Stopper, Valve Vibrating
35430 35430-26060 Body Assy, Rear Upper Valve
35430 90360-06023 Ball (For Rear Upper Valve Body)
35432 35432-26180 Plate, Valve Body, No.1
35433 35433-14012 Gasket, Valve Body, No.1
35434 35434-14012 Gasket, Valve Body, No.2
35440 35440-26011 Body Assy, Front Upper Valve
35444 35444-22010 Valve, Intermediate Modulator
35444 90501-09686 Spring, Compression (For Intermediate Modulator Valve)
35445 35445-22010 Valve, Low Modulator
35445 90501-08725 Spring, Compression (For Intermediate Modulator Valve)
35446 35446-20010 Valve, Governor Modulator
35447 35447-22010 Valve, Reverse Clutch Sequence
35449 90501-12055 Spring, Compression (For Reverse Clutch Sequence Valve)
35456 35456-22010 Valve, 2-3 Shift
35456 90501-08724 Spring, Compression (For 2-3 Shift Valve)
35456 35452-22010 Plug (For 2-3 Shift Valve)
35456 35493-22020 Seat, Plug (For Lock Up Relay Valve)
35457 35457-22010 Valve, Detent Regulator
35457 90501-09025 Spring, Compression (For Detent Regulator Valve)
35457 35438-22020 Seat (For Direct Clutch Modulator Valve Plug)
35458 35458-22010 Valve, Cut Back
35458 35459-22010 Plug (For Cut Back Valve)
35462 35462-22011 Valve, Throttle
35462 90501-07680 Spring, Compression (For Throttle Valve)
35462 90501-12045 Spring, Compression (For Throttle Valve)
35462 90523-06023 Ring, E (For Throttle Valve)
35465 35465-22010 Plug, Intermediate Shift Valve
35467 35467-22010 Valve, Intermediate Shift
35468 35204-30010 Valve, Secondary Regulator
35468 90501-19001 Spring, Compression (For Secondary Regulator Valve)
35472 35472-22010 Cover, Valve Body, No.2
35473 35473-22010 Cover, Transmission Valve Body
35479 35479-22010 Seat, Intermediate Shift Valve
35487 35487-30010 Ball, Check, No.4
35487 90504-05006 Spring, Compression (For Check Ball)
35493 35493-22010 Seat (For Cut Back Valve)
35521 35521-20010 Cam, Throttle Valve
35521 90508-12331 Spring (For Throttle Valve Cam Return)
35521 90201-06472 Washer (For Throttle Valve Cam Set)
35522 35522-22010 Pin, Throttle Valve Cam
35599 35599-30010 Cover, Manual Detent Spring
35599 35599-30030 Cover, Manual Detent Spring
35892 35892-28020 Tube, Overdrive Brake
35895 35895-14011 Tube, Front Clutch Apply
35896 35896-30020 Tube, Overdrive Switch Apply
9010505002 90105-05002 New Genuine Part
9010505005 90105-05005 Bolt (For Transfer Relief Valve Plate)
9010505009 90105-05009 New Genuine Part
9010505012 90105-05012 New Genuine Part
9010505033 90105-05033 New Genuine Part
9010506018 90105-06018 Bolt (For Throttle Valve Cam Set)
9010506044 90105-06044 New Genuine Part
9011905023 90119-05023 New Genuine Part
9011905035 90119-05035 Bolt (For Pressure Regulator Valve No.2)
