Search › Model › LH162

LH162

Toyota HIACE · 1998 · 4,399 parts · 244 categories

4,399 items

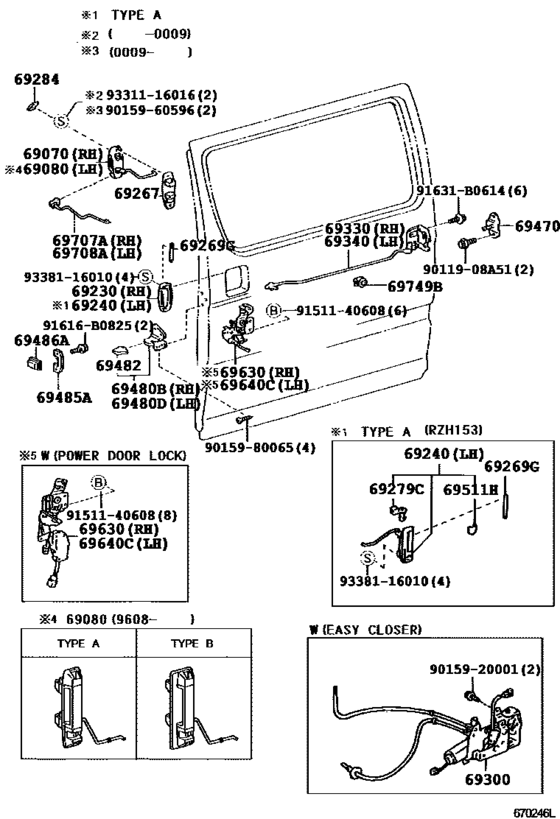

Rear Door Lock & Handle ([08.1989 - ] (8908- )) 39

#	OEM	Part name
69070	69070-26030-B2	Handle Assy, Slide Door, Inside, Rh
69080	69080-26030-B2	Handle Assy, Slide Door, Inside, Lh
69230	69230-26020	Handle Assy, Rear Door Outside, Rh
69230	69230-26050	Handle Assy, Rear Door Outside, Rh
69240	69240-26040	Handle Assy, Rear Door Outside, Lh
69240	69240-26060	Handle Assy, Rear Door Outside, Lh
69267	69267-26010	Seal, Slide Door Inside Handle, No.1
69267	69268-95J01	Seal, Slide Door Inside Handle, No.1
69284	69284-95J00-B3	Plug, Slide Door Inside Handle
69330	69330-95J00	Lock Assy, Rear Door, Rh
69340	69340-95J01	Lock Assy, Rear Door, Lh
69470	69470-26010	Plate Assy, Slide Door Lock Striker
69480	69480-26020	Hook Assy, Slide Door Front Lock
69480	69481-25010	Hook Assy, Slide Door Front Lock
69482	69482-26010	Cover, Slide Door Front Lock Hook
69485	69485-26010	Bracket, Slide Door Front Lock Striker
69486	69486-95701	Cover, Slide Door Front Lock Striker
69630	69630-26070	Control Assy, Slide Door Lock Remote
69630	69630-26080	Control Assy, Slide Door Lock Remote
69630	69630-26130	Control Assy, Slide Door Lock Remote
69630	69630-26140	Control Assy, Slide Door Lock Remote
69640	69640-26150	Control Assy, Slide Door Lock Remote, Lh
69640	69640-26160	Control Assy, Slide Door Lock Remote, Lh
69640	69640-26240	Control Assy, Slide Door Lock Remote, Lh
69640	69640-26250	Control Assy, Slide Door Lock Remote, Lh
69707	69707-95J01-B2	Rod Sub-Assy, Slide Door Locking Control Push, Rh
69707	69707-95J01-B1	Rod Sub-Assy, Slide Door Locking Control Push, Rh
69708	69708-95J01-B2	Rod Sub-Assy, Slide Door Locking Control Push, Lh
69708	69708-95J01-B1	Rod Sub-Assy, Slide Door Locking Control Push, Lh
69749	69749-95J00	Clamp, Rear Door Lock Link
91616	91616-B0825	New Genuine Part
91631	91631-B0614	BOLT WWASHER
9011908	90119-08A51	New Genuine Part
9015920001	90159-20001	New Genuine Part
9015960596	90159-60596	SCREW WWASHER
9015980065	90159-80065	New Genuine Part
9151140608	91511-40608	New Genuine Part
9331116016	93311-16016	SCREW
9338116010	93381-16010	New Genuine Part

OEM	Part name	Category
69070-26030-B2	Handle Assy, Slide Door, Inside, Rh	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69080-26030-B2	Handle Assy, Slide Door, Inside, Lh	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69230-26020	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69230-26050	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69240-26040	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69240-26060	Handle Assy, Rear Door Outside, Lh	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69267-26010	Seal, Slide Door Inside Handle, No.1	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69268-95J01	Seal, Slide Door Inside Handle, No.1	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69284-95J00-B3	Plug, Slide Door Inside Handle	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69330-95J00	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69340-95J01	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69470-26010	Plate Assy, Slide Door Lock Striker	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69480-26020	Hook Assy, Slide Door Front Lock	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69481-25010	Hook Assy, Slide Door Front Lock	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69482-26010	Cover, Slide Door Front Lock Hook	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69485-26010	Bracket, Slide Door Front Lock Striker	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69486-95701	Cover, Slide Door Front Lock Striker	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69630-26070	Control Assy, Slide Door Lock Remote	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69630-26080	Control Assy, Slide Door Lock Remote	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69630-26130	Control Assy, Slide Door Lock Remote	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69630-26140	Control Assy, Slide Door Lock Remote	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69640-26150	Control Assy, Slide Door Lock Remote, Lh	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69640-26160	Control Assy, Slide Door Lock Remote, Lh	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69640-26240	Control Assy, Slide Door Lock Remote, Lh	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69640-26250	Control Assy, Slide Door Lock Remote, Lh	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69707-95J01-B1	Rod Sub-Assy, Slide Door Locking Control Push, Rh	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69707-95J01-B2	Rod Sub-Assy, Slide Door Locking Control Push, Rh	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69708-95J01-B1	Rod Sub-Assy, Slide Door Locking Control Push, Lh	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69708-95J01-B2	Rod Sub-Assy, Slide Door Locking Control Push, Lh	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
69749-95J00	Clamp, Rear Door Lock Link	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
90119-08A51	New Genuine Part	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
90159-20001	New Genuine Part	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
90159-60596	SCREW WWASHER	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
90159-80065	New Genuine Part	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
91511-40608	New Genuine Part	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
91616-B0825	New Genuine Part	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
91631-B0614	BOLT WWASHER	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
93311-16016	SCREW	Rear Door Lock & Handle ([08.1989 - ] (8908- ))
93381-16010	New Genuine Part	Rear Door Lock & Handle ([08.1989 - ] (8908- ))

Source: Public OEM parts-catalog data
Variants: 1 / 19
Category: 244
Collected: 2026-08-03
