Search › Model › LH154

LH154

Toyota HIACE · 2000 · 4,293 parts · 245 categories

4,293 items

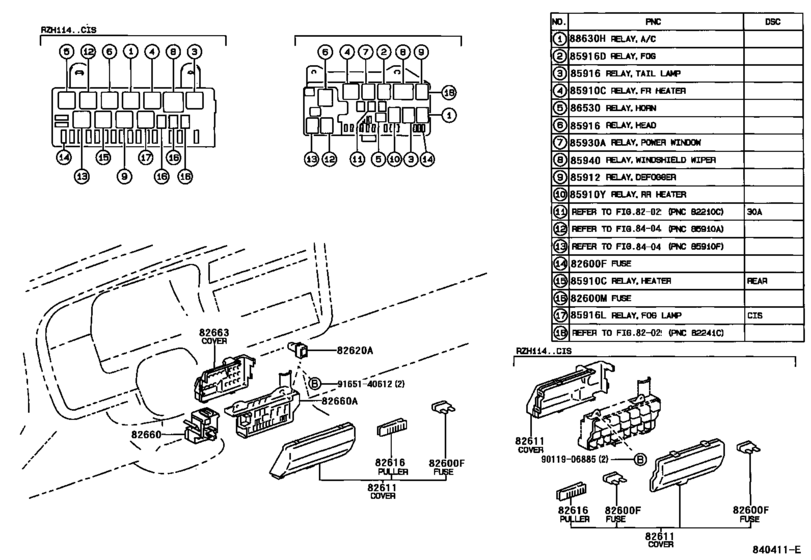

Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD) 21

#	OEM	Part name
82600	90982-09005	Fuse, Fuse Block
82600	90982-09008	Fusible Link
82600	90982-09010	Fusible Link
82600	90982-09011	Fusible Link
82600	90982-10001	Instrument Panel Fusible Link
82600	90982-10002	Fuse, Fuse Block
82611	82611-26095	Cover, Fuse Block
82611	82611-26360	Cover, Fuse Block
82616	82616-20010	Puller, Fuse
82660	82660-26190	Block Assy, Relay, Engine Room
82660	82660-26181	Block Assy, Relay, Cowl Side
82663	82663-26060	Cover, Relay Block, Lower
85910	90987-04002	Relay, Ignition, No.1
85912	90987-02012	Relay, Ignition, No.1
85912	90987-02024	Relay, Ignition, No.1
85916	90987-02006	Relay
86530	86530-20070	Relay Assy, Horn
88630	90987-04004	Relay, Starter Cut
9011906885	90119-06885	Bolt, Radiator Tank Pipe
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part

OEM	Part name	Category
82611-26095	Cover, Fuse Block	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
82611-26360	Cover, Fuse Block	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
82616-20010	Puller, Fuse	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
82660-26181	Block Assy, Relay, Cowl Side	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
82660-26190	Block Assy, Relay, Engine Room	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
82663-26060	Cover, Relay Block, Lower	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
86530-20070	Relay Assy, Horn	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
90080-11225	New Genuine Part	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
90119-06885	Bolt, Radiator Tank Pipe	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
90982-09005	Fuse, Fuse Block	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
90982-09008	Fusible Link	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
90982-09010	Fusible Link	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
90982-09011	Fusible Link	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
90982-10001	Instrument Panel Fusible Link	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
90982-10002	Fuse, Fuse Block	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
90987-02006	Relay	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
90987-02012	Relay, Ignition, No.1	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
90987-02024	Relay, Ignition, No.1	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
90987-04002	Relay, Ignition, No.1	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
90987-04004	Relay, Starter Cut	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)
91651-40612	BOLT	Switch & Relay & Computer ([08.1996 - ] INSTRUMENT PANEL RELAY (9608- )LHD)

Source: Public OEM parts-catalog data
Variants: 1 / 4
Category: 245
Collected: 2026-08-03
