LH154

Toyota HIACE · 2000 · 4,293 parts · 245 categories
LH154 ×

← Back to categories

4,293 items

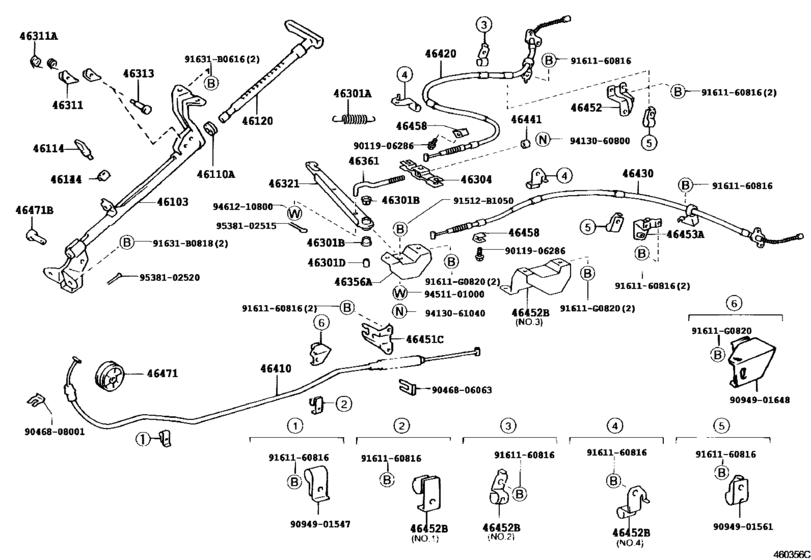

Parking Brake & Cable ([08.2000 - ] (0008- )LH154,RZH155) 49
#OEMPart name
46103 46103-26170 Guide Sub-Assy, Parking Brake Plunger
46110 90386-11195 Bush Or Ring, O (For Parking Brake Plunger)
46114 46114-20010 Pin(For Parking Brake Handle Set)
46120 46120-26120 Plunger Assy, Parking Brake
46144 46144-30020 Anti-Rattle, Parking Brake Plunger
46301 90506-19008 Spring, Tension(For Intermediate Lever)
46301 90386-16009 Bush(For Intermediate Lever)
46301 90387-10110 Collar(For Intermediate Lever)
46304 46304-28010 Equalizer Sub-Assy, Parking Brake
46311 46311-26010 Pawl, Parking Brake
46311 90508-08106 Spring, Torsion(For Parking Brake Plunger)
46313 46313-40010 Pin, Parking Brake Pawl
46321 46321-26190 Lever, Parking Brake Intermediate
46356 46356-26120 Bracket, Intermediate Lever(For Parking Brake)
46361 46361-26070 Rod, Parking Brake Pull
46410 46410-26320 Cable Assy, Parking Brake, No.1
46420 46420-26600 Cable Assy, Parking Brake, No.2
46430 46430-26430 Cable Assy, Parking Brake, No.3
46441 46441-35010 Nut, Wire Adjusting, No.1
46451 46451-26110 Bracket, Parking Brake Cable Support, No.1
46452 46452-26090 Bracket, Parking Brake Cable Support, No.2
46452 46452-26130 Bracket, Cable Support, No.2
46452 46452-26200 Bracket, Cable Support, No.2
46452 90949-01548 Bracket, Cable Support, No.2
46452 90949-01C49 Bracket, Cable Support, No.2
46453 46453-26060 Bracket, Cable Support, No.3
46458 46458-28010 Retainer, Cable
46471 46471-20010 Pulley, Wire
46471 90240-08017 Pin, W/hole(For Parking Brake Cable)
91512 91512-B1050 BOLT FLANGE
91611 91611-G0820 Bolt
91631 91631-B0616 BOLT WWASHER
91631 91631-B0818 BOLTWWASHER
9011906286 90119-06286 New Genuine Part
9011906286 91611-B0612 New Genuine Part
9046806063 90468-06063 CLIP
9046808001 90468-08001 CLIP
9094901547 90949-01547 New Genuine Part
9094901561 90949-01561 New Genuine Part
9094901648 90949-01648 New Genuine Part
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9413060800 94130-60800 Nut(For Clutch Pedal Stopper)
9413060800 90170-A0003 New Genuine Part
9413061040 94130-61040 New Genuine Part
9451101000 94511-01000 Washer(For Rear Drive Shaft)
9461210800 94612-10800 Washer, Plate(For Repair Actuator Set)
9538102515 95381-02515 PIN
9538102520 95381-02520 PINCOTTER
