LH154

Toyota HIACE · 2000 · 4,293 parts · 245 categories

4,293 items

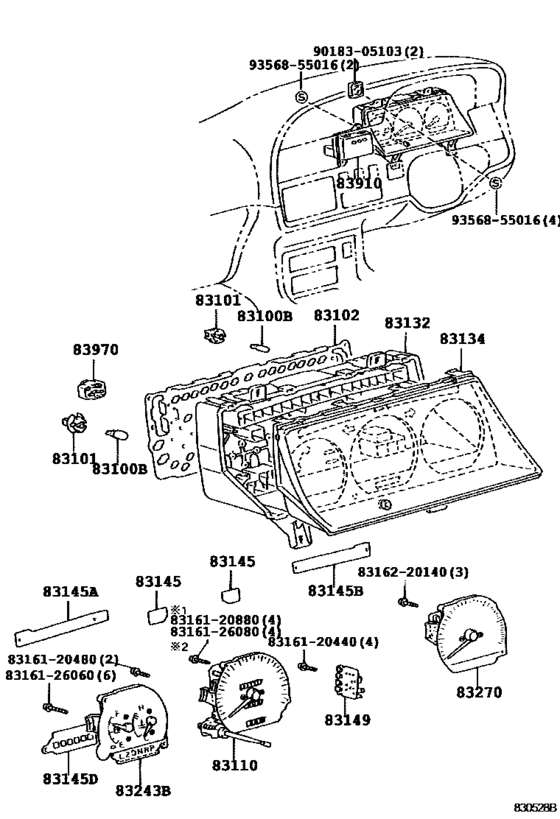

Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#) 23

#	OEM	Part name
83100	83120-60020	Bulb, Combination Meter, No.1
83100	90010-06006	Bulb, Combination Meter, No.1
83100	90010-06007	Bulb, Combination Meter, No.1
83102	83861-2F290	Plate Sub-Assy, Combination Meter Circuit, No.1
83110	83110-26431	Speedometer Assy
83132	83132-26120	Case, Combination Meter
83134	83141-26030	Cover, Combination Meter, No.1
83145	83145-2B460	Lens, Meter, No.1
83145	83145-2F030	Lens, Meter, No.2
83145	83145-2F060	Lens, Meter, No.2
83145	83145-26220	Lens, Meter, No.2
83149	83149-2F070	Plate, Meter Circuit, No.2
83243	83243-26160	Gauge Assy, Combination
83270	83242-26320	Tachometer Assy, Engine
83910	83910-95J05	Clock Assy
8316120440	83161-20440	Case, Combination Meter Mirror, No.1
8316120480	83161-20480	Case, Combination Meter Mirror, No.1
8316120880	83161-20880	Case, Combination Meter Mirror, No.1
8316126060	83161-26060	Case, Combination Meter Mirror, No.1
8316126080	83161-26080	Case, Combination Meter Mirror, No.1
8316220140	83162-20140	Case, Combination Meter Mirror, No.2
9018305103	90183-05103	NUT
9356855016	93568-55016	Screw

OEM	Part name	Category
83110-26431	Speedometer Assy	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83120-60020	Bulb, Combination Meter, No.1	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83132-26120	Case, Combination Meter	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83141-26030	Cover, Combination Meter, No.1	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83145-26220	Lens, Meter, No.2	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83145-2B460	Lens, Meter, No.1	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83145-2F030	Lens, Meter, No.2	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83145-2F060	Lens, Meter, No.2	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83149-2F070	Plate, Meter Circuit, No.2	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83161-20440	Case, Combination Meter Mirror, No.1	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83161-20480	Case, Combination Meter Mirror, No.1	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83161-20880	Case, Combination Meter Mirror, No.1	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83161-26060	Case, Combination Meter Mirror, No.1	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83161-26080	Case, Combination Meter Mirror, No.1	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83162-20140	Case, Combination Meter Mirror, No.2	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83242-26320	Tachometer Assy, Engine	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83243-26160	Gauge Assy, Combination	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83861-2F290	Plate Sub-Assy, Combination Meter Circuit, No.1	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
83910-95J05	Clock Assy	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
90010-06006	Bulb, Combination Meter, No.1	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
90010-06007	Bulb, Combination Meter, No.1	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
90183-05103	NUT	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
93568-55016	Screw	Meter ([08.1993 - ] SPEEDOMETER, W(TACHOMETER) (9308- )RZH112..SRF ; (9308- )LH174..10S,1 5S ; (9308- )LH10#,11#,125,154,1 6#,172,176,184,RZ H10#,113,114,115,125,135,15#)
