LH154

Toyota HIACE · 2000 · 4,293 parts · 245 categories

4,293 items

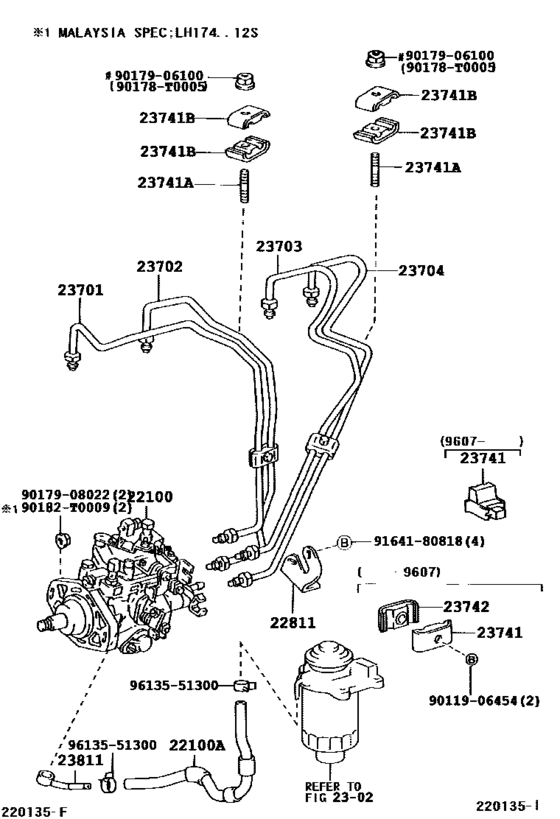

Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L) 22

#	OEM	Part name
22100	22100-5D060	Pump Assy, Injection Or Supply
22100	23271-54040	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22811	22811-54042	Stay, Injection Pump, No.1
23701	23701-54140	Pipe Sub-Assy, Injection, No.1
23702	23702-54140	Pipe Sub-Assy, Injection, No.2
23703	23703-54100	Pipe Sub-Assy, Injection, No.3
23703	23703-05011	Pipe Sub-Assy, Injection, No.3
23704	23704-54100	Pipe Sub-Assy, Injection, No.4
23704	23704-05010	Pipe Sub-Assy, Injection, No.4
23741	23741-54030	Clamp, Injection Pipe, No.1
23741	90116-06095	Bolt, Stud(For Head To Cylinder Head Cover)
23741	23741-56010	Clamp, Injection Pipe, No.1
23811	23811-05030	Pipe, Fuel(For Fuel Filter To Injection Pump)
23811	23811-54172	Pipe, Fuel(For Fuel Filter To Injection Pump)
90178	90178-T0005	NUT
90182	90182-T0009	New Genuine Part
9011906454	90119-06454	Bolt
9017906100	90179-06100	New Genuine Part
9017906100	90179-06204	NUT
9017908022	90179-08022	NUT
9164180818	91641-80818	BOLT WWASHER
9613551300	96135-51300	Clamp, Hose

OEM	Part name	Category
22100-5D060	Pump Assy, Injection Or Supply	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
22811-54042	Stay, Injection Pump, No.1	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
23271-54040	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
23701-54140	Pipe Sub-Assy, Injection, No.1	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
23702-54140	Pipe Sub-Assy, Injection, No.2	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
23703-05011	Pipe Sub-Assy, Injection, No.3	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
23703-54100	Pipe Sub-Assy, Injection, No.3	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
23704-05010	Pipe Sub-Assy, Injection, No.4	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
23704-54100	Pipe Sub-Assy, Injection, No.4	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
23741-54030	Clamp, Injection Pipe, No.1	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
23741-56010	Clamp, Injection Pipe, No.1	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
23811-05030	Pipe, Fuel(For Fuel Filter To Injection Pump)	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
23811-54172	Pipe, Fuel(For Fuel Filter To Injection Pump)	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
90116-06095	Bolt, Stud(For Head To Cylinder Head Cover)	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
90119-06454	Bolt	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
90178-T0005	NUT	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
90179-06100	New Genuine Part	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
90179-06204	NUT	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
90179-08022	NUT	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
90182-T0009	New Genuine Part	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
91641-80818	BOLT WWASHER	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
96135-51300	Clamp, Hose	Injection Pump Assembly ([08.1989 - ] (8908- )2L,3L,5L)
