LH140

Toyota HIACE · 1990 · 4,488 parts · 267 categories
LH140 ×

← Back to categories

4,488 items

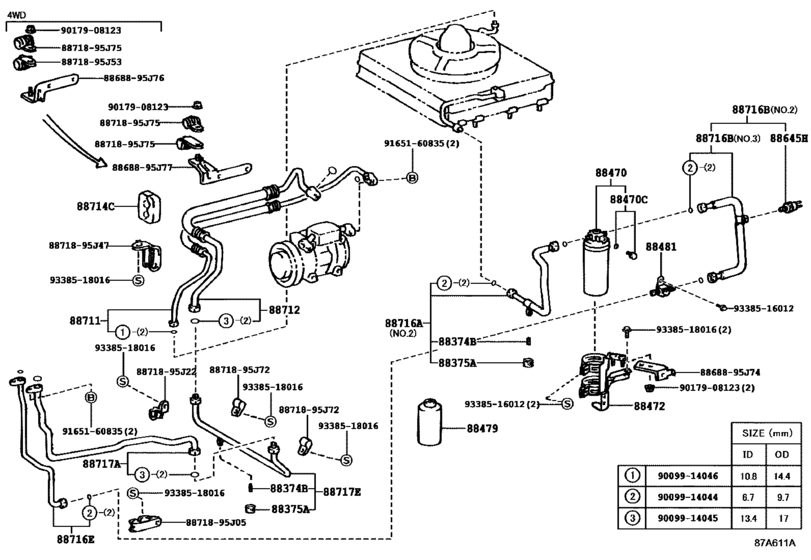

Heating & Air Conditioning - Cooler Piping ([08.1989 - 08.1993] FRONT PIPING--SINGLE(DEALER OPT) (8908-9308)) 46
#OEMPart name
88374 88374-12020 Valve, Service, No.1
88374 88374-20020 Valve, Service, No.1
88375 88375-20010 Cap, Service Valve (For Cooler Pipe)
88375 88375-30270 Cap, Cooler Compressor Service Valve
88470 88470-20080 Receiver & Dryer Assy, Cooler
88470 88475-20040 Bolt, Fuse
88470 88475-12020 Bolt, Fuse
88472 88472-95J02 Bracket, Receiver Tank, No.1
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88481 88481-87002 Glass Sub-Assy, Sight
88645 88645-10020 Switch, Pressure
88645 88645-95J02 Switch, Pressure No.1
88711 88711-26100 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-95J00 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-26H04 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-95J19 Hose, Cooler Refrigerant Suction, No.1
88714 88714-95J13 Insulator, Cooler Refrigerant Hose, No.1
88716 88716-26060 Pipe, Cooler Refrigerant Liquid, A
88716 88716-95J27 Pipe, Cooler Refrigerant Liquid, A
88716 88716-95J75 Pipe, Cooler Refrigerant Liquid, A
88716 88716-95N10 Pipe, Cooler Refrigerant Liquid, A
88716 88716-95J80 Pipe, Cooler Refrigerant Liquid, B
88716 88716-95J82 Pipe, Cooler Refrigerant Liquid, B
88716 88716-95J85 Pipe, Cooler Refrigerant Liquid, B
88716 88716-95N08 Pipe, Cooler Refrigerant Liquid, B
88716 88716-95N09 Pipe, Cooler Refrigerant Liquid, B
88716 88716-26040 Pipe, Cooler Refrigerant Liquid, E
88717 88717-95J40 Pipe, Cooler Refrigerant Suction, A
88717 88717-95J41 Pipe, Cooler Refrigerant Suction, E
88717 88717-95J42 Pipe, Cooler Refrigerant Suction, E
8868895 88688-95J74 Bracket, Cooler Diaphragm
8868895 88688-95J76 Bracket, Cooler Diaphragm
8868895 88688-95J77 Bracket, Cooler Diaphragm
8871895 88718-95J05 Clamp(For Cooler Refrigerant Pipe), No.2
8871895 88718-95J22 Pipe, Cooler Refrigerant Suction, No.2
8871895 88718-95J47 Pipe, Cooler Refrigerant Suction, No.2
8871895 88718-95J53 Pipe, Cooler Refrigerant Suction, No.2
8871895 88718-95J72 Pipe, Cooler Refrigerant Suction, No.2
8871895 88718-95J75 Pipe, Cooler Refrigerant Suction, No.2
9009914044 90099-14044 Ring, O(For Cooler Refrigerant Liquid Hose)
9009914045 90099-14045 Ring, O(For Cooler Refrigerant Suction Hose)
9009914046 90099-14046 Ring, O(For Cooler Refrigerant Discharge Hose)
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9338516012 93385-16012 New Genuine Part
9338518016 93385-18016 New Genuine Part
