LH129

Toyota HIACE · 1989 · 5,724 parts · 268 categories

5,724 items

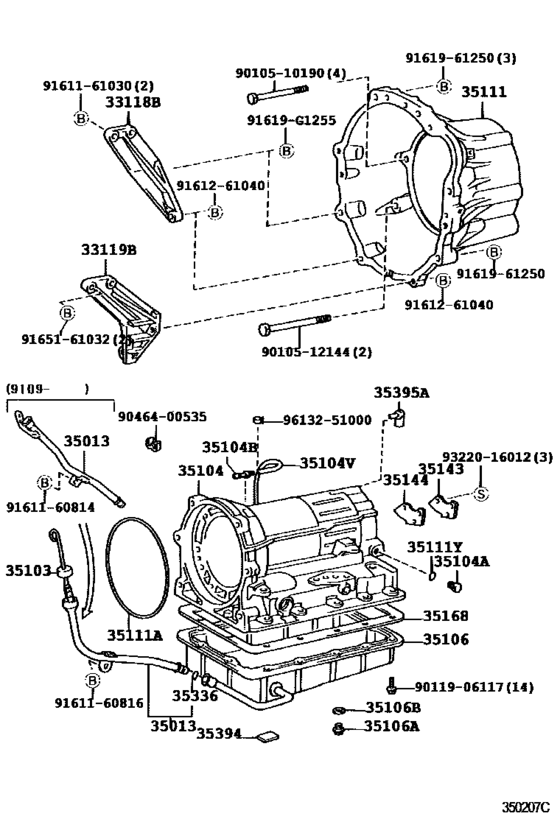

Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC) 41

#	OEM	Part name
33118	33118-25020	Plate, Stiffener, Rh(Mtm)
33119	33119-25060	Plate, Stiffener, Lh(Mtm)
33119	33119-26010	Plate, Stiffener, Lh(Mtm)
35013	35013-26111	Tube Sub-Assy, Transmission Oil Filler
35103	35103-26090	Gage Sub-Assy, Transmission Oil Level
35104	35104-26030	Case Sub-Assy, Automatic Transmission
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90930-03098	Plug, Breather, No.1 (Atm)
35104	90930-03099	Plug, Breather, No.1 (Atm)
35104	90445-11096	Hose (For Breather Plug)
35106	35106-28030	Pan Sub-Assy, Automatic Transmission Oil
35106	35106-30051	Pan Sub-Assy, Automatic Transmission Oil
35106	90341-10006	Plug (For Transfer Oil Pan)
35106	90341-10011	Drain Plug (No Type)
35106	35178-30010	Drain Plug Gasket
35111	35111-26020	Housing, Automatic Transmission
35111	35111-26021	Housing, Automatic Transmission
35111	90301-99054	Ring, O (For Automatic Transmission Housing)
35111	90301-06196	O Ring, Transaxle Case, No.1
35143	35143-22010	Cover, Transmission Case, Rear
35144	35144-28010	Gasket, Transmission Case Rear Cover
35168	35168-22011	Gasket, Automatic Transmission Oil Pan
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35395	35395-40010	Strainer, Governor Oil
91619	91619-G1255	New Genuine Part
9010510190	90105-10190	New Genuine Part
9010512144	90105-12144	New Genuine Part
9011906117	90119-06117	Bolt (For Automatic Transmission Oil Pan)
9011906117	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
9046400535	90464-00535	Clamp, Throttle Cable, No.1
9161160814	91611-60814	Bolt
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161161030	91611-61030	Bolt (For Transmission Control Cable Bracket)
9161161030	91612-61030	Bolt (For Transmission Control Cable Bracket)
9161261040	91612-61040	Bolt(For Transmission Case & Engine Setting)
9161961250	91619-61250	Bolt
9165161032	91651-61032	BOLT
9322016012	93220-16012	SCREW
9613251000	96132-51000	Clip Or Clamp(For Ventilation Hose)

OEM	Part name	Category
33118-25020	Plate, Stiffener, Rh(Mtm)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
33119-25060	Plate, Stiffener, Lh(Mtm)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
33119-26010	Plate, Stiffener, Lh(Mtm)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
35013-26111	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
35103-26090	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
35104-26030	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
35106-28030	Pan Sub-Assy, Automatic Transmission Oil	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
35106-30051	Pan Sub-Assy, Automatic Transmission Oil	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
35111-26020	Housing, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
35111-26021	Housing, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
35143-22010	Cover, Transmission Case, Rear	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
35144-28010	Gasket, Transmission Case Rear Cover	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
35168-22011	Gasket, Automatic Transmission Oil Pan	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
35178-30010	Drain Plug Gasket	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
35395-40010	Strainer, Governor Oil	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
90105-10190	New Genuine Part	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
90105-12144	New Genuine Part	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
90119-06117	Bolt (For Automatic Transmission Oil Pan)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
90301-99054	Ring, O (For Automatic Transmission Housing)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
90341-10006	Plug (For Transfer Oil Pan)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
90341-10011	Drain Plug (No Type)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
90445-11096	Hose (For Breather Plug)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
90464-00535	Clamp, Throttle Cable, No.1	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
90930-03098	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
90930-03099	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
91611-60814	Bolt	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
91611-61030	Bolt (For Transmission Control Cable Bracket)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
91611-B0816	Bolt	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
91612-61030	Bolt (For Transmission Control Cable Bracket)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
91612-61040	Bolt(For Transmission Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
91619-61250	Bolt	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
91619-G1255	New Genuine Part	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
91651-61032	BOLT	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
93220-16012	SCREW	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Transmission Case & Oil Pan (Atm) ([10.1990 - 08.1998] A44DE,A45DL,A45DF,A45DE (8908-9010)LH100,102,107,113,119,123..4FC ; (901 0-9808)LH102,103,107,113,119,123,12 9..4FC)
