LH129

Toyota HIACE · 1989 · 5,724 parts · 268 categories
LH129 ×

← Back to categories

5,724 items

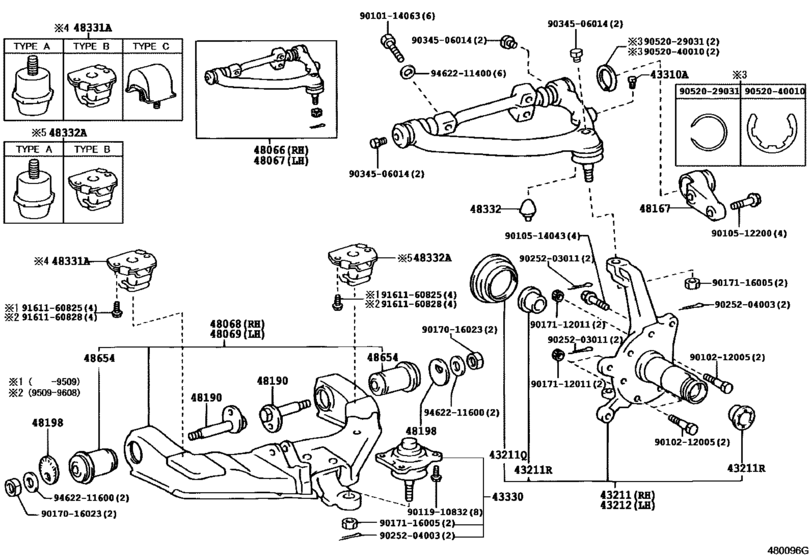

Front Axle Arm & Steering Knuckle ([08.1989 - ] (8908- )4WD) 56
#OEMPart name
43211 43201-26030 Knuckle, Steering, Rh
43211 43201-26031 Knuckle, Steering, Rh
43211 90304-76005 Seal, Dust(For Front Axle Outer Shaft)
43211 90316-60002 Seal, Oil (For Steering Knuckle)
43211 90316-60004 Seal, Oil (For Steering Knuckle)
43211 90381-30003 Bush (For Steering Knuckle)
43211 90381-30006 Bush (For Steering Knuckle)
43212 43202-26030 Knuckle, Steering, Lh
43212 43202-26031 Knuckle, Steering, Lh
43330 43330-29305 Joint Assy, Lower Ball, Front
43330 43330-29345 Joint Assy, Lower Ball, Front
48066 48066-29025 Arm Sub-Assy, Front Suspension, Upper Rh
48066 48066-29045 Arm Sub-Assy, Front Suspension, Upper Rh
48066 48066-29105 Arm Sub-Assy, Front Suspension, Upper Rh
48067 48067-29025 Arm Sub-Assy, Front Suspension, Upper Lh
48067 48067-29045 Arm Sub-Assy, Front Suspension, Upper Lh
48067 48067-29105 Arm Sub-Assy, Front Suspension, Upper Lh
48068 48068-26061 Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068 48068-26062 Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48068 48068-26110 Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48069 48069-26061 Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48069 48069-26062 Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48069 48069-26110 Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48167 48106-26020 Arm, Torque
48167 48106-25020 Arm, Torque
48190 48190-26020 Cam Assy, Camber Adjust
48198 48198-26010 Cam, Camber Adjust, No.2
48331 48331-26051 Bumper, Front Spring, No.1
48331 48331-26111 Bumper, Front Spring, No.1
48331 48331-26121 Bumper, Front Spring, No.1
48331 48331-26122 Bumper, Front Spring, No.1
48332 48332-35020 Bumper, Front Spring, No.2
48332 48331-26061 Bumper, Front Spring, No.3
48332 48332-26031 Bumper, Front Spring, No.3
48332 48332-26041 Bumper, Front Spring, No.3
48332 48332-26042 Bumper, Front Spring, No.3
48654 48061-26040 Bush, Lower Arm
48654 48061-35011 Bush, Lower Arm
9010114063 90101-14063 New Genuine Part
9010212005 90102-12005 Bolt(For Backing Plate To Steering Knuckle Arm Setting)
9010512200 90105-12200 Bolt(For Torque Arm Setting)
9010514043 90105-14043 Bolt(For Steering Knuckle Arm Rh)
9011910832 90119-10832 Bolt
9017016023 90170-16023 NUT
9017112011 90171-12011 Nut
9017116005 90171-16005 Nut, Castle(For Tie Rod End)
9025203011 90252-03011 PIN
9025204003 90252-04003 PIN
9034506014 90345-06014 Plug (For Ball Joint)
9052029031 90520-29031 New Genuine Part
9052040010 90520-40010 New Genuine Part
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9161160828 91611-60828 Bolt(For Clutch Release Cylinder Setting)
9462211400 94622-11400 New Genuine Part
9462211600 94622-11600 WASHER
