LH129

Toyota HIACE · 1989 · 5,724 parts · 268 categories
LH129 ×

← Back to categories

5,724 items

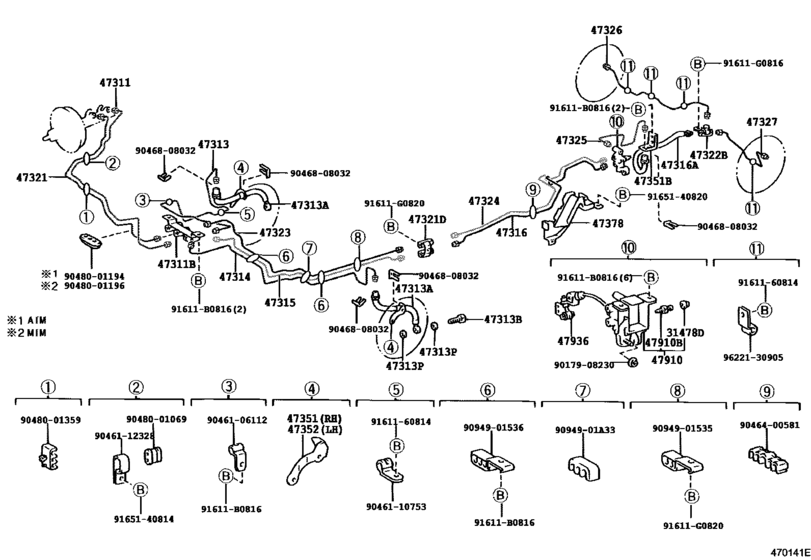

Brake Tube & Clamp ([08.1993 - 08.1998] (9308-9808)LH109,119,129 ; (9808- )LH168,178, 186,188) 55
#OEMPart name
31478 31478-30010 Bleeder Plug Cap
47311 47311-26440 Tube, Front Brake, No.1
47311 47311-26441 Tube, Front Brake, No.1
47311 90414-10022 Way, No.1(For Front Brake Tube)
47313 47313-26160 Tube, Front Brake, No.3
47313 90947-02759 Hose, Flexible, No.1(For Front)
47313 90947-02829 Hose, Flexible, No.1(For Front)
47313 90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313 90430-10074 Gasket(For Oil Pressure Regulator)
47314 47314-26210 Tube, Front Brake, No.4
47315 47315-26150 Tube, Front Brake, No.5
47316 47316-26160 Tube, Front Brake, No.6
47316 96940-33805 Hose, Clutch, No.1
47321 47321-26350 Tube, Rear Brake, No.1
47321 47321-26351 Tube, Rear Brake, No.1
47321 90412-10166 Way, No.1(For Rear Brake Tube)
47322 90413-10243 Way, No.2(For Rear Brake Tube)
47323 47323-26340 Tube, Rear Brake, No.3
47324 47324-26200 Tube, Rear Brake, No.4
47325 47325-26250 Tube, Rear Brake, No.5
47326 47326-26300 Tube, Rear Brake, No.6
47327 47327-26150 Tube, Rear Brake, No.7
47351 47351-26131 Bracket, Flexible Hose(For Front Rh)
47351 47351-26160 Bracket, Flexible Hose(For Front Rh)
47351 47351-26120 Bracket, Flexible Hose, No.1
47352 47352-26121 Bracket, Flexible Hose(For Front Lh)
47352 47352-26150 Bracket, Flexible Hose(For Front Lh)
47378 47378-26020 Protector, Brake Tube
47378 47378-26021 Protector, Brake Tube
47910 47910-26230 Valve Assy, Load Sensing Proportioning
47910 47910-26231 Valve Assy, Load Sensing Proportioning
47910 47547-27020 Plug, Bleeder(For Front Drum Brake)
47910 47547-27030 Plug, Bleeder(For Front Disc Brake)
47936 47936-35040 Shackle, Load Sensing Spring, No.2
91611 91611-B0816 Bolt
91611 91611-G0816 Bolt
91611 91611-G0820 Bolt
9094901 90949-01A33 New Genuine Part
9017908230 90179-08230 New Genuine Part
9046106112 90461-06112 Clamp, Brake Tube, No.6
9046110753 90461-10753 New Genuine Part
9046112328 90461-12328 New Genuine Part
9046400581 90464-00581 New Genuine Part
9046808032 90468-08032 CLIP
9048001069 90480-01069 Grommet(For Brake Tube)
9048001194 90480-01194 New Genuine Part
9048001196 90480-01196 New Genuine Part
9048001359 90480-01359 New Genuine Part
9094901535 90949-01535 New Genuine Part
9094901536 90949-01536 Clamp, Brake Tube, No.15
9161160814 91611-60814 Bolt
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165140820 91651-40820 Bolt
9622130905 96221-30905 CLAMP
