LH125

Toyota HIACE · 1989 · 4,649 parts · 255 categories

4,649 items

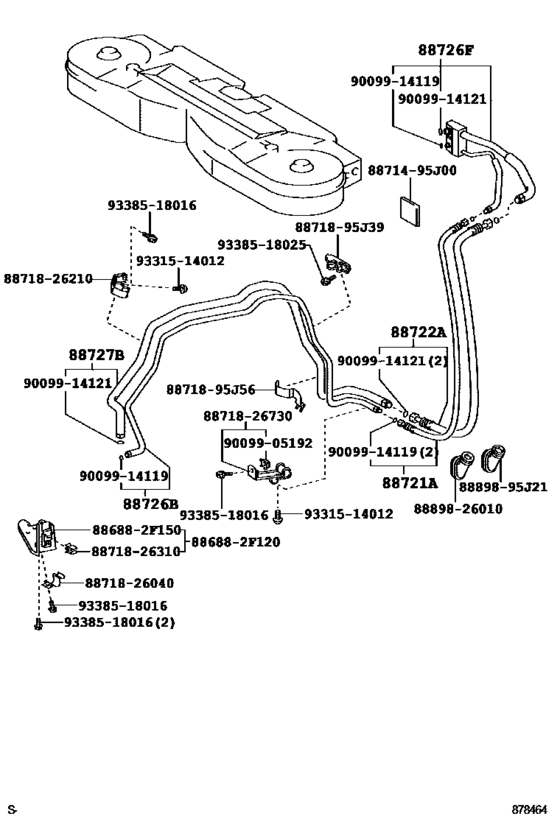

Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL) 24

#	OEM	Part name
88721	88721-26080	Hose, Liquid, A
88722	88712-26230	Hose, Suction, A
88726	88716-2F610	Pipe, Cooler Refrigerant Liquid, B
88726	88710-2F290	Pipe, Cooler Refrigerant Liquid, F
88727	88717-2F340	Pipe, Cooler Refrigerant Suction, B
886882	88688-2F120	Bracket, Cooler Diaphragm
886882	88688-2F150	Bracket, Cooler Diaphragm
8871495	88714-95J00	Protector, Wiring Harness, No.4
8871895	88718-95J39	Pipe, Cooler Refrigerant Suction, No.2
8871895	88718-95J56	Pipe, Cooler Refrigerant Suction, No.2
8889895	88898-95J21	Tube Sub-assy, Equalizer
8871826040	88718-26040	Pipe, Cooler Refrigerant Suction, No.2
8871826210	88718-26210	Pipe, Cooler Refrigerant Suction, No.2
8871826310	88718-26310	Pipe, Cooler Refrigerant Suction, No.2
8871826730	88718-26730	Pipe, Cooler Refrigerant Suction, No.2
8889826010	88898-26010	Tube Sub-assy, Equalizer
9009905192	90099-05192	New Genuine Part
9009914119	90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119	90099-14119-TH	O RING
9009914121	90099-14121	O-Ring, Cooler Evaporator No.1(Suction)
9331514012	93315-14012	Screw with washer
9338518016	93385-18016	New Genuine Part
9338518025	93385-18025	New Genuine Part
9338518025	90091-20817	New Genuine Part

OEM	Part name	Category
88688-2F120	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
88688-2F150	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
88710-2F290	Pipe, Cooler Refrigerant Liquid, F	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
88712-26230	Hose, Suction, A	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
88714-95J00	Protector, Wiring Harness, No.4	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
88716-2F610	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
88717-2F340	Pipe, Cooler Refrigerant Suction, B	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
88718-26040	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
88718-26210	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
88718-26310	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
88718-26730	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
88718-95J39	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
88718-95J56	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
88721-26080	Hose, Liquid, A	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
88898-26010	Tube Sub-assy, Equalizer	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
88898-95J21	Tube Sub-assy, Equalizer	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
90091-20817	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
90099-05192	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
90099-14119-TH	O RING	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
90099-14121	O-Ring, Cooler Evaporator No.1(Suction)	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
93315-14012	Screw with washer	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
93385-18016	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
93385-18025	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([08.1998 - 08.2000] REAR PIPING(DEALER OPT) (9808-0008)LH125 ; (9808- )RZH125 ; (0008- )LH184..5F..ARL)
