LH125

Toyota HIACE · 1989 · 4,649 parts · 255 categories
LH125 ×

← Back to categories

4,649 items

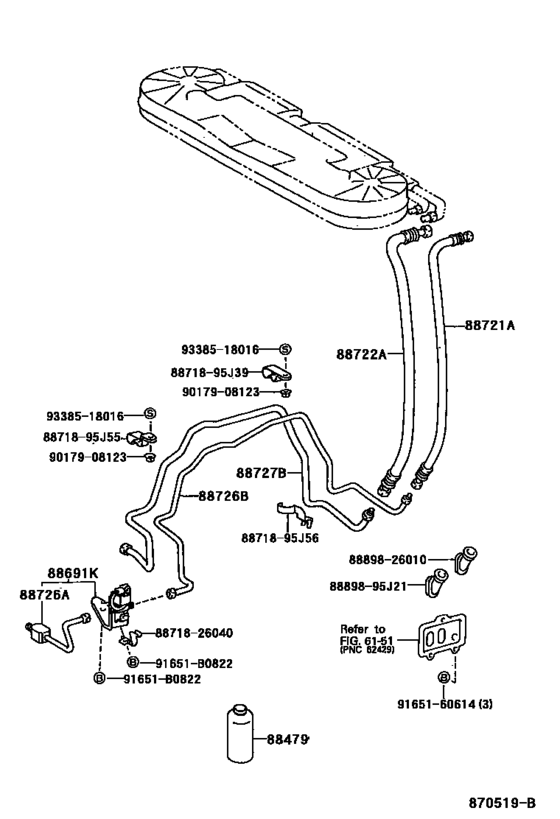

Heating & Air Conditioning - Cooler Piping ([08.1993 - ] REAR PIPING(DEALER OPT) (9308- )LH125,RZH103,125..SG) 14
#OEMPart name
88721 88721-26080 Hose, Liquid, A
88722 88712-26230 Hose, Suction, A
88726 88716-2F610 Pipe, Cooler Refrigerant Liquid, B
88727 88717-2F340 Pipe, Cooler Refrigerant Suction, B
91651 91651-B0822 BOLT WWASHER
8871895 88718-95J39 Pipe, Cooler Refrigerant Suction, No.2
8871895 88718-95J55 Pipe, Cooler Refrigerant Suction, No.2
8871895 88718-95J56 Pipe, Cooler Refrigerant Suction, No.2
8889895 88898-95J21 Tube Sub-assy, Equalizer
8871826040 88718-26040 Pipe, Cooler Refrigerant Suction, No.2
8889826010 88898-26010 Tube Sub-assy, Equalizer
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9165160614 91651-60614 Bolt
9338518016 93385-18016 New Genuine Part
