Search › Model › LH120

LH120

Toyota HIACE · 1989 · 4,599 parts · 263 categories

4,599 items

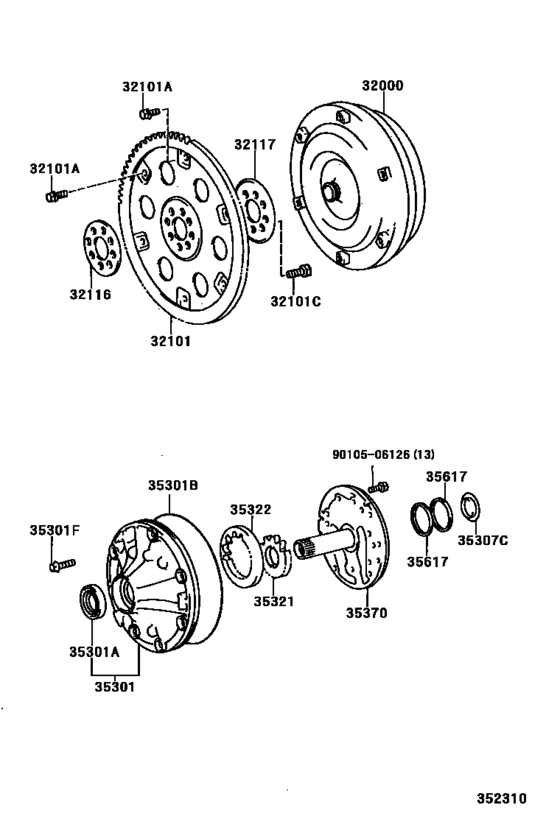

Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC) 27

#	OEM	Part name
32000	32000-60070	Converter Assy, Torque
32101	32101-35020	Gear Sub-Assy, Drive Plate & Ring
32101	90119-09009	Bolt(For Drive Plate & Torque Converter Setting)
32101	90119-09010	Bolt(For Drive Plate & Torque Converter Setting)
32101	90105-12014	Bolt, Hexagon(For Drive Plate Setting)
32116	32116-35010	Spacer, Drive Plate, Front
32117	32117-35010	Spacer, Drive Plate, Rear
35301	35301-30040	Body Sub-Assy, Front Oil Pump
35301	90311-38029	Seal, Oil (For Front Oil Pump)
35301	90311-38020	Seal, Oil (For Front Oil Pump)
35301	90301-99033	Ring, O (For Front Oil Pump Body)
35301	90105-08091	Bolt (For Front Oil Pump Setting)
35307	35789-30020	Race, Thrust Bearing (For Stator Shaft)
35307	35789-30340	Race, Thrust Bearing (For Stator Shaft)
35321	35321-12070	Gear, Front Oil Pump Drive
35321	35321-12080	Gear, Front Oil Pump Drive
35321	35321-12090	Gear, Front Oil Pump Drive
35321	35321-12100	Gear, Front Oil Pump Drive
35321	35321-12110	Gear, Front Oil Pump Drive
35322	35322-12060	Gear, Front Oil Pump Driven
35322	35322-12070	Gear, Front Oil Pump Driven
35322	35322-12080	Gear, Front Oil Pump Driven
35322	35322-12090	Gear, Front Oil Pump Driven
35322	35322-12100	Gear, Front Oil Pump Driven
35370	35370-30031	Shaft Sub-Assy, Stator
35617	35617-30020	Ring, Clutch Drum Oil Seal
9010506126	90105-06126	Bolt (For Stator Shaft)

OEM	Part name	Category
32000-60070	Converter Assy, Torque	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
32101-35020	Gear Sub-Assy, Drive Plate & Ring	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
32116-35010	Spacer, Drive Plate, Front	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
32117-35010	Spacer, Drive Plate, Rear	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
35301-30040	Body Sub-Assy, Front Oil Pump	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
35321-12070	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
35321-12080	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
35321-12090	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
35321-12100	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
35321-12110	Gear, Front Oil Pump Drive	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
35322-12060	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
35322-12070	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
35322-12080	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
35322-12090	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
35322-12100	Gear, Front Oil Pump Driven	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
35370-30031	Shaft Sub-Assy, Stator	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
35617-30020	Ring, Clutch Drum Oil Seal	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
35789-30020	Race, Thrust Bearing (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
35789-30340	Race, Thrust Bearing (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
90105-06126	Bolt (For Stator Shaft)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
90105-08091	Bolt (For Front Oil Pump Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
90105-12014	Bolt, Hexagon(For Drive Plate Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
90119-09009	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
90119-09010	Bolt(For Drive Plate & Torque Converter Setting)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
90301-99033	Ring, O (For Front Oil Pump Body)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
90311-38020	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)
90311-38029	Seal, Oil (For Front Oil Pump)	Torque Converter, Front Oil Pump & Chain (Atm) ([10.1990 - 08.1993] A340E (9010-9308)LH100,120..4FC)

Source: Public OEM parts-catalog data
Variants: 1 / 6
Category: 263
Collected: 2026-08-03
