Search › Model › LH120

LH120

Toyota HIACE · 1989 · 4,599 parts · 263 categories

4,599 items

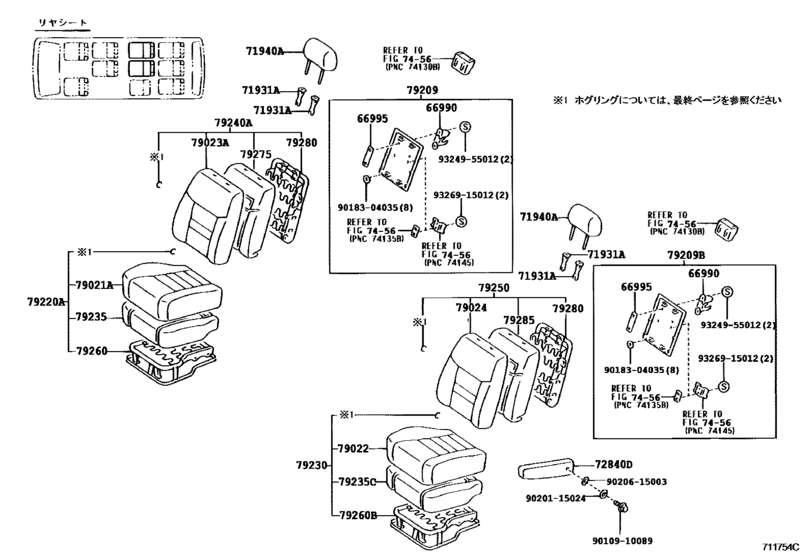

Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN) 42

#	OEM	Part name
66990	66990-90B01-02	Holder Assy, Cup
66990	66990-36020-B0	Holder Assy, Cup
66995	66995-90B01	Retainer, Cup Holder
71836	71836-95J00-02	Cover, Rear Seat Reclining, Lower Lh
71879	71879-95J01-02	Cover, Rear Seat Reclining, Inner Lh
71931	71956-30020-12	Support, Front Seat Headrest
71931	71990-30020-12	Support, Front Seat Headrest
71940	71940-95J20-02	Headrest Assy, Rear Seat
72526	72525-26010-D0	Handle, Reclining Adjuster Release, Lh
72526	72525-95J01-02	Handle, Reclining Adjuster Release, Rh
72840	72840-26020-D1	Armrest Assy, Rear Seat, Lh
79021	79011-26140-D0	Cover Sub-Assy, No.1 Seat Cushion
79023	79013-26080-D0	Cover Sub-Assy, No.1 Seat Back
79024	79014-26040-D0	Cover Sub-Assy, No.1 Seat Back, Lh
79137	79137-95J00-02	Cover, No.1 Seat Hinge
79137	79137-95J00-B0	Cover, No.1 Seat Hinge
79205	79205-26020-D0	Leg Sub-Assy, No.2 Seat
79220	79120-26140-D0	Cushion Assy, No.1 Seat
79235	79135-95J12	Pad, No.1 Seat Cushion
79240	79140-26080-D0	Back Assy, No.1 Seat
79250	79150-26040-D0	Back Assy, No.1 Seat, Lh
79280	79180-95J18	Spring Assy, No.1 Seat Back
79280	79180-26071	Spring Assy, No.1 Seat Back
79280	79190-26050	Spring Assy, No.1 Seat Back
9010910089	90109-10089	New Genuine Part
9011908766	90119-08766	BOLT WWASHER
9011910315	90119-10315	BOLT
9011910391	90119-10391	New Genuine Part
9015480045	90154-80045	New Genuine Part
9016740044	90167-40044	BOLT
9018304035	90183-04035	New Genuine Part
9020115024	90201-15024	WASHER PLATE
9020615003	90206-15003	New Genuine Part
9038612051	90386-12051	Bush (For Front Seat Hinge Pin)
9046709143	90467-09143	Piece, Rear Bumper
9052308001	90523-08001	E Ring (For Tilt Motor Shaft, Lower)
9095001913	90950-01913	New Genuine Part
9161661025	91616-61025	Bolt (For Control Shaft Cover)
9161661025	91612-61025	Bolt (For Control Shaft Cover)
9324955012	93249-55012	New Genuine Part
9326915012	93269-15012	New Genuine Part
9356054016	93560-54016	SCREW

OEM	Part name	Category
66990-36020-B0	Holder Assy, Cup	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
66990-90B01-02	Holder Assy, Cup	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
66995-90B01	Retainer, Cup Holder	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
71836-95J00-02	Cover, Rear Seat Reclining, Lower Lh	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
71879-95J01-02	Cover, Rear Seat Reclining, Inner Lh	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
71940-95J20-02	Headrest Assy, Rear Seat	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
71956-30020-12	Support, Front Seat Headrest	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
71990-30020-12	Support, Front Seat Headrest	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
72525-26010-D0	Handle, Reclining Adjuster Release, Lh	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
72525-95J01-02	Handle, Reclining Adjuster Release, Rh	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
72840-26020-D1	Armrest Assy, Rear Seat, Lh	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
79011-26140-D0	Cover Sub-Assy, No.1 Seat Cushion	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
79013-26080-D0	Cover Sub-Assy, No.1 Seat Back	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
79014-26040-D0	Cover Sub-Assy, No.1 Seat Back, Lh	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
79120-26140-D0	Cushion Assy, No.1 Seat	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
79135-95J12	Pad, No.1 Seat Cushion	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
79137-95J00-02	Cover, No.1 Seat Hinge	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
79137-95J00-B0	Cover, No.1 Seat Hinge	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
79140-26080-D0	Back Assy, No.1 Seat	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
79150-26040-D0	Back Assy, No.1 Seat, Lh	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
79180-26071	Spring Assy, No.1 Seat Back	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
79180-95J18	Spring Assy, No.1 Seat Back	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
79190-26050	Spring Assy, No.1 Seat Back	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
79205-26020-D0	Leg Sub-Assy, No.2 Seat	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
90109-10089	New Genuine Part	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
90119-08766	BOLT WWASHER	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
90119-10315	BOLT	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
90119-10391	New Genuine Part	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
90154-80045	New Genuine Part	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
90167-40044	BOLT	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
90183-04035	New Genuine Part	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
90201-15024	WASHER PLATE	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
90206-15003	New Genuine Part	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
90386-12051	Bush (For Front Seat Hinge Pin)	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
90467-09143	Piece, Rear Bumper	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
90523-08001	E Ring (For Tilt Motor Shaft, Lower)	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
90950-01913	New Genuine Part	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
91612-61025	Bolt (For Control Shaft Cover)	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
91616-61025	Bolt (For Control Shaft Cover)	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
93249-55012	New Genuine Part	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
93269-15012	New Genuine Part	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)
93560-54016	SCREW	Seat & Seat Track ([05.1992 - ] ﾘﾔｼ-ﾄ NO.2 (9205- )KZH12#,LH120..DX,GCGN)

Source: Public OEM parts-catalog data
Variants: 1 / 6
Category: 263
Collected: 2026-08-03
