Search › Model › LH120

LH120

Toyota HIACE · 1989 · 4,599 parts · 263 categories

← Back to categories

4,599 items

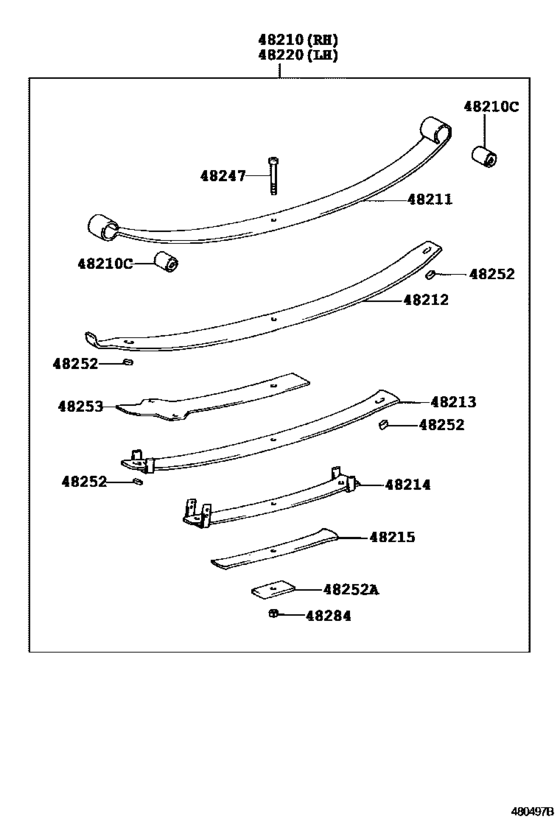

Rear Spring & Shock Absorber ([05.1992 - 08.1993] 5-LEAF(TYPE D) (9205-9308)LH110,120,RZH110) 13

#	OEM	Part name
48210	48210-2F010	Spring Assy, Rear Rh
48210	90389-14007	Bush(For Rear Spring Leaf)
48210	90389-14037	Bush(For Rear Spring Leaf)
48211	48201-2F010	Leaf, Rear Spring, No.1
48212	48212-2F010	Leaf, Rear Spring, No.2
48213	48202-2F010	Leaf, Rear Spring, No.3
48214	48203-2F010	Leaf, Rear Spring, No.4
48215	48215-2F010	Leaf, Rear Spring, No.5
48247	48247-26280	Bolt, Rear Spring, Center
48252	48252-26070	Silencer, Front Spring
48252	48216-35390	Spacer, Rear Spring, No.2
48253	48255-26620	Spacer, Rear Spring, No.1
48284	48299-28010	Nut, Rear Spring Center Bolt

OEM	Part name	Category
48201-2F010	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([05.1992 - 08.1993] 5-LEAF(TYPE D) (9205-9308)LH110,120,RZH110)
48202-2F010	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([05.1992 - 08.1993] 5-LEAF(TYPE D) (9205-9308)LH110,120,RZH110)
48203-2F010	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([05.1992 - 08.1993] 5-LEAF(TYPE D) (9205-9308)LH110,120,RZH110)
48210-2F010	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([05.1992 - 08.1993] 5-LEAF(TYPE D) (9205-9308)LH110,120,RZH110)
48212-2F010	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([05.1992 - 08.1993] 5-LEAF(TYPE D) (9205-9308)LH110,120,RZH110)
48215-2F010	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([05.1992 - 08.1993] 5-LEAF(TYPE D) (9205-9308)LH110,120,RZH110)
48216-35390	Spacer, Rear Spring, No.2	Rear Spring & Shock Absorber ([05.1992 - 08.1993] 5-LEAF(TYPE D) (9205-9308)LH110,120,RZH110)
48247-26280	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([05.1992 - 08.1993] 5-LEAF(TYPE D) (9205-9308)LH110,120,RZH110)
48252-26070	Silencer, Front Spring	Rear Spring & Shock Absorber ([05.1992 - 08.1993] 5-LEAF(TYPE D) (9205-9308)LH110,120,RZH110)
48255-26620	Spacer, Rear Spring, No.1	Rear Spring & Shock Absorber ([05.1992 - 08.1993] 5-LEAF(TYPE D) (9205-9308)LH110,120,RZH110)
48299-28010	Nut, Rear Spring Center Bolt	Rear Spring & Shock Absorber ([05.1992 - 08.1993] 5-LEAF(TYPE D) (9205-9308)LH110,120,RZH110)
90389-14007	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([05.1992 - 08.1993] 5-LEAF(TYPE D) (9205-9308)LH110,120,RZH110)
90389-14037	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([05.1992 - 08.1993] 5-LEAF(TYPE D) (9205-9308)LH110,120,RZH110)
