Search › Model › LH120

LH120

Toyota HIACE · 1989 · 4,599 parts · 263 categories

4,599 items

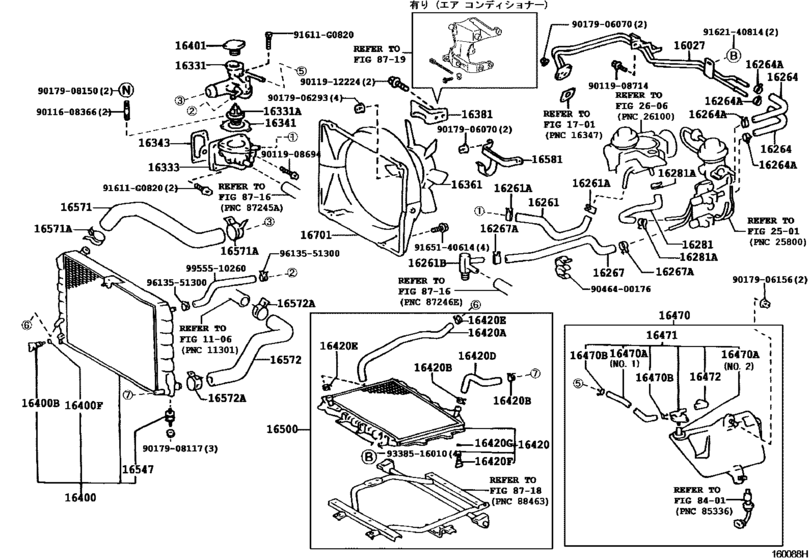

Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE) 66

#	OEM	Part name
16027	16027-54042	Pipe Sub-Assy, Turbo Water, No.1
16261	16261-54110	Hose, Water By-Pass
16261	90467-15022	Clip Or Clamp(For Ventilation Hose)
16261	90404-54040	Union(For Water By-Pass Hose)
16261	90404-54037	Union(For Water By-Pass Hose)
16264	16264-54090	Hose, Water By-Pass, No.2
16267	16267-54070	Hose, Water By-Pass, No.3
16281	16281-54020	Hose, Water By-Pass, No.4
16331	16331-54121	Outlet, Water
16331	90916-03099	Thermostat
16333	16333-54162	Housing, Water Outlet
16341	16341-54040	Gasket, Water Outlet
16343	16343-54040	Gasket, Water Outlet Housing
16361	16361-54050	Fan
16361	16361-67030	Fan
16381	16381-54070	Bar, Fan Belt Adjusting
16381	16381-54071	Bar, Fan Belt Adjusting
16400	16400-54780	Radiator Assy
16400	16400-54783	Radiator Assy
16400	16400-54782	Radiator Assy
16400	16417-75010	Plug, Radiator Drain Cock
16400	16418-24200	Packing(For Radiator Drain Cock)
16401	16401-71010	Cap Sub-Assy(For Water Outlet)
16401	16401-54750	Radiator Cap
16420	16510-54020	Radiator Assy, Sub
16420	16551-54020	Hose, Sub Radiator, Inlet
16420	96112-10330	Clamp Or Clip, Hose(For Water By-Pass Hose)
16420	16552-54020	Hose, Sub Radiator, No.2
16420	90910-09054	Plug, Radiator Drain Cock
16420	96711-19007	Packing(For Radiator Drain Cock)
16470	16470-54213	Tank Assy, Radiator Reserve
16470	16470-54214	Tank Assy, Radiator Reserve
16470	85338-54190	Hose Or Pipe(For Radiator Reserve Tank)
16470	90445-12078	Hose(For Radiator Breather)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16471	16405-54202	Cap Sub-Assy, Reserve Tank
16472	85338-54191	Hose, Breather
16547	16547-67040	Bush, Radiator Support, No.1
16571	16571-54320	Hose, Radiator, Inlet
16571	90467-37001	Clip(For Water Inlet Hose)
16571	90467-37003	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-54320	Hose, Radiator, Outlet
16572	96111-10480	Clamp Or Clip, Hose(For Radiator Outlet No.1)
16581	16581-54010	Clamp, Hose(For Water Hose)
16581	16581-54100	Clamp, Hose(For Water Hose) - HOSE(FOR RADIATOR HOSE)
16701	16701-54220	Shroud Sub-Assy, Fan
91611	91611-G0820	Bolt
9011608366	90116-08366	Stud
9011908694	90119-08694	BOLT
9011908714	90119-08714	New Genuine Part
9011908714	91621-40812	BOLT
9011912224	90119-12224	BOLT WWASHER
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9017906156	90179-06156	Nut (For Transmission Control Cable)
9017906293	90179-06293	NUT
9017908117	90179-08117	New Genuine Part
9017908117	90179-08230	New Genuine Part
9017908150	90179-08150	NUT
9046400176	90464-00176	Clamp(For Clutch Booster Vacuum)
9162140814	91621-40814	Bolt
9165140614	91651-40614	Bolt
9338516010	93385-16010	New Genuine Part
9613551300	96135-51300	Clamp, Hose
9955510260	99555-10260	Hose, Intake Manifold Water, No.1
9955510260	99555-10500	Hose, Water, No.1

OEM	Part name	Category
16027-54042	Pipe Sub-Assy, Turbo Water, No.1	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16261-54110	Hose, Water By-Pass	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16264-54090	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16267-54070	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16281-54020	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16331-54121	Outlet, Water	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16333-54162	Housing, Water Outlet	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16341-54040	Gasket, Water Outlet	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16343-54040	Gasket, Water Outlet Housing	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16361-54050	Fan	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16361-67030	Fan	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16381-54070	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16381-54071	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16400-54780	Radiator Assy	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16400-54782	Radiator Assy	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16400-54783	Radiator Assy	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16401-54750	Radiator Cap	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16401-71010	Cap Sub-Assy(For Water Outlet)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16405-54202	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16417-75010	Plug, Radiator Drain Cock	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16418-24200	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16470-54213	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16470-54214	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16510-54020	Radiator Assy, Sub	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16547-67040	Bush, Radiator Support, No.1	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16551-54020	Hose, Sub Radiator, Inlet	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16552-54020	Hose, Sub Radiator, No.2	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16571-54320	Hose, Radiator, Inlet	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16572-54320	Hose, Radiator, Outlet	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16581-54010	Clamp, Hose(For Water Hose)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16581-54100	Clamp, Hose(For Water Hose) - HOSE(FOR RADIATOR HOSE)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
16701-54220	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
85338-54190	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
85338-54191	Hose, Breather	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90116-08366	Stud	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90119-08694	BOLT	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90119-08714	New Genuine Part	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90119-12224	BOLT WWASHER	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90179-06156	Nut (For Transmission Control Cable)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90179-06293	NUT	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90179-08117	New Genuine Part	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90179-08150	NUT	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90179-08230	New Genuine Part	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90404-54037	Union(For Water By-Pass Hose)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90404-54040	Union(For Water By-Pass Hose)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90464-00176	Clamp(For Clutch Booster Vacuum)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90467-37001	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90467-37003	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90910-09054	Plug, Radiator Drain Cock	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
90916-03099	Thermostat	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
91611-G0820	Bolt	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
91621-40812	BOLT	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
91621-40814	Bolt	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
91651-40614	Bolt	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
93385-16010	New Genuine Part	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
96111-10480	Clamp Or Clip, Hose(For Radiator Outlet No.1)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
96112-10330	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
96135-51300	Clamp, Hose	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
96711-19007	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
99555-10260	Hose, Intake Manifold Water, No.1	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
99555-10500	Hose, Water, No.1	Radiator & Water Outlet ([10.1990 - 08.1993] (9010-9308)2LTE)
