Search › Model › LH120

LH120

Toyota HIACE · 1989 · 4,599 parts · 263 categories

4,599 items

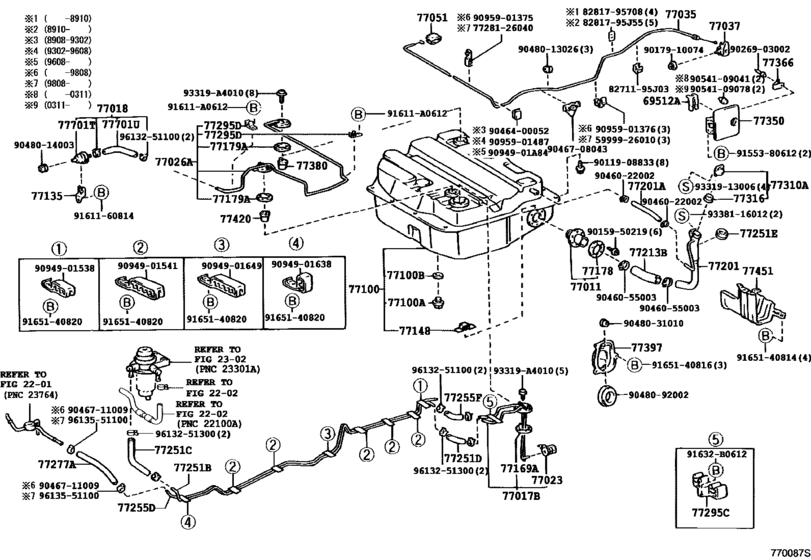

Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG) 89

#	OEM	Part name
77011	77011-26010	Pipe Sub-Assy, Fuel Tank Filler, Lower
77017	77017-26130	Tube Sub-Assy, Fuel Tank Vent
77017	77017-26131	Tube Sub-Assy, Fuel Tank Vent
77018	77018-26160	Valve Sub-Assy, Fuel Vapour Separate
77023	77023-32010	Filter Sub-Assy, Fuel Suction Tube
77026	77026-26040	Tube Sub-Assy, Fuel Evaporation, No.1
77026	77026-26041	Tube Sub-Assy, Fuel Evaporation, No.1
77035	77035-95J09	Cable Sub-Assy, Fuel Lid Lock Control
77037	77037-32010	Lock Sub-Assy, Fuel Tank Cap
77051	77051-95J01-02	Lever Sub-Assy, Fuel Lid Open
77051	77051-95J01-C0	Lever Sub-Assy, Fuel Lid Open
77100	77001-26500	Tank Assy, Fuel
77100	77001-26900	Tank Assy, Fuel (lpg)
77100	90105-12116	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77135	77135-26010	Bracket, Check Valve
77169	77169-14020	Gasket, Fuel Tank Vent
77178	77178-20010	Gasket, Fuel Tank Filler Pipe, Lower
77179	77179-26010	Gasket, Fuel Tank Evap/vent Tube
77179	77179-26011	Gasket, Fuel Suction Tube Set, No.1
77201	77201-26141	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-26170	Pipe Sub-Assy, Fuel Tank Inlet
77201	95311-13032	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77213	77213-26080	Hose, Fuel Tank To Filler Pipe
77251	77251-26590	Tube, Fuel Main
77251	95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77251	95333-08020	Hose, Lpg Injector
77251	95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77251	90480-75002	Shield, Fuel Tank Inlet Pipe
77255	77255-26350	Tube, Fuel Return
77255	95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77255	95337-06020	Hose, Differential Pressure Control
77277	90447-12118	Hose, Fuel, No.1(For Return Tube, No.1)
77310	77310-32011	Cap Assy, Fuel Tank
77316	77316-16010	Gasket (For Fuel Tank Cap)
77350	77350-26010	Lid Assy, Fuel Filler Opening
77366	77366-95J01	Spring, Fuel Filler Opening Lid Hinge
77380	77380-26010	Valve Assy, Fuel Cut Off
77397	77397-95J01	Plate, Fuel Inlet Pipe Seal
77420	77420-26010	Valve Assy, Fuel Cut Off, No.2
77451	77451-26010	Protector, Fuel Inlet Hose
77701	90917-10082	Hose, Fuel, No.1 (For Breather Valve)
77701	95333-06030	Hose, Fuel
77701	95338-06030	HOSE, FUEL
91611	91611-A0612	New Genuine Part
91632	91632-B0612	New Genuine Part
91632	91631-J0612	BRACKET
93319	93319-A4010	SCREW WWASHER
8271195	82711-95J03	Wire, Fuse To Fuse(for Combustion Heater)
8281795	82817-95J55	Support, Slide Roof Rain Channel Hose
9094901	90949-01A84	Clamp, Height Control Tube, No.3
5999926010	59999-26010	Clamp(for Floor Mat)
7728126040	77281-26040	Bracket, Fuel Main Tube, No.1
8281795708	82817-95708	Protector, Wiring Harness, No.15
9011908833	90119-08833	New Genuine Part
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9017910074	90179-10074	New Genuine Part
9026903002	90269-03002	RIVET
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046055003	90460-55003	Clamp Or Clip(For Air Hose, No.1)
9046400052	90464-00052	New Genuine Part
9046708043	90467-08043	Clamp, Hood Lock Control Cable
9046711009	90467-11009	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009	96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)
9048013026	90480-13026	New Genuine Part
9048014003	90480-14003	New Genuine Part
9048031010	90480-31010	Grommet
9048092002	90480-92002	GROMMET
9054109041	90541-09041	Cushion, Hood Bumper
9054109078	90541-09078	Cushion, Front Door Panel
9094901538	90949-01538	New Genuine Part
9094901541	90949-01541	New Genuine Part
9094901638	90949-01638	New Genuine Part
9094901649	90949-01649	New Genuine Part
9095901375	90959-01375	New Genuine Part
9095901376	90959-01376	New Genuine Part
9095901487	90959-01487	New Genuine Part
9155380612	91553-80612	BOLT FLANGE
9161160814	91611-60814	Bolt
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
9165140816	91651-40816	BOLT
9165140820	91651-40820	Bolt
9331913006	93319-13006	New Genuine Part
9338116012	93381-16012	Screw
9613251100	96132-51100	Clip (For Hose)
9613251300	96132-51300	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
59999-26010	Clamp(for Floor Mat)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77001-26500	Tank Assy, Fuel	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77001-26900	Tank Assy, Fuel (lpg)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77011-26010	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77017-26130	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77017-26131	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77018-26160	Valve Sub-Assy, Fuel Vapour Separate	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77023-32010	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77026-26040	Tube Sub-Assy, Fuel Evaporation, No.1	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77026-26041	Tube Sub-Assy, Fuel Evaporation, No.1	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77035-95J09	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77037-32010	Lock Sub-Assy, Fuel Tank Cap	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77051-95J01-02	Lever Sub-Assy, Fuel Lid Open	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77051-95J01-C0	Lever Sub-Assy, Fuel Lid Open	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77135-26010	Bracket, Check Valve	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77169-14020	Gasket, Fuel Tank Vent	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77178-20010	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77179-26010	Gasket, Fuel Tank Evap/vent Tube	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77179-26011	Gasket, Fuel Suction Tube Set, No.1	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77201-26141	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77201-26170	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77213-26080	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77251-26590	Tube, Fuel Main	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77255-26350	Tube, Fuel Return	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77281-26040	Bracket, Fuel Main Tube, No.1	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77310-32011	Cap Assy, Fuel Tank	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77350-26010	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77366-95J01	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77380-26010	Valve Assy, Fuel Cut Off	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77397-95J01	Plate, Fuel Inlet Pipe Seal	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77420-26010	Valve Assy, Fuel Cut Off, No.2	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
77451-26010	Protector, Fuel Inlet Hose	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
82711-95J03	Wire, Fuse To Fuse(for Combustion Heater)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
82817-95708	Protector, Wiring Harness, No.15	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
82817-95J55	Support, Slide Roof Rain Channel Hose	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90080-11228	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90105-12116	Plug(For Fuel Tank)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90119-08833	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90159-50219	BOLT	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90159-A0057	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90179-10074	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90269-03002	RIVET	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90447-12118	Hose, Fuel, No.1(For Return Tube, No.1)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90460-22001	CLAMP	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90460-22002	CLAMP	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90460-55003	Clamp Or Clip(For Air Hose, No.1)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90464-00052	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90467-08043	Clamp, Hood Lock Control Cable	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90467-11009	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90480-13026	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90480-14003	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90480-31010	Grommet	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90480-75002	Shield, Fuel Tank Inlet Pipe	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90480-92002	GROMMET	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90541-09041	Cushion, Hood Bumper	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90541-09078	Cushion, Front Door Panel	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90917-10082	Hose, Fuel, No.1 (For Breather Valve)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90949-01538	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90949-01541	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90949-01638	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90949-01649	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90949-01A84	Clamp, Height Control Tube, No.3	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90959-01375	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90959-01376	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
90959-01487	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
91553-80612	BOLT FLANGE	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
91611-60814	Bolt	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
91611-A0612	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
91631-J0612	BRACKET	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
91632-B0612	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
91651-40814	BOLT	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
91651-40816	BOLT	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
91651-40820	Bolt	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
93319-13006	New Genuine Part	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
93319-A4010	SCREW WWASHER	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
93381-16012	Screw	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
95311-13032	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
95333-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
95333-06030	Hose, Fuel	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
95333-08020	Hose, Lpg Injector	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
95338-06030	HOSE, FUEL	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
96132-51300	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
96135-51100	Clamp Or Clip(For Turbo Oil Outlet Hose)	Fuel Tank & Tube ([08.1989 - ] (8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140, 16#,17#,18#..COM,V1,WG)
