LH120

Toyota HIACE · 1989 · 4,599 parts · 263 categories

4,599 items

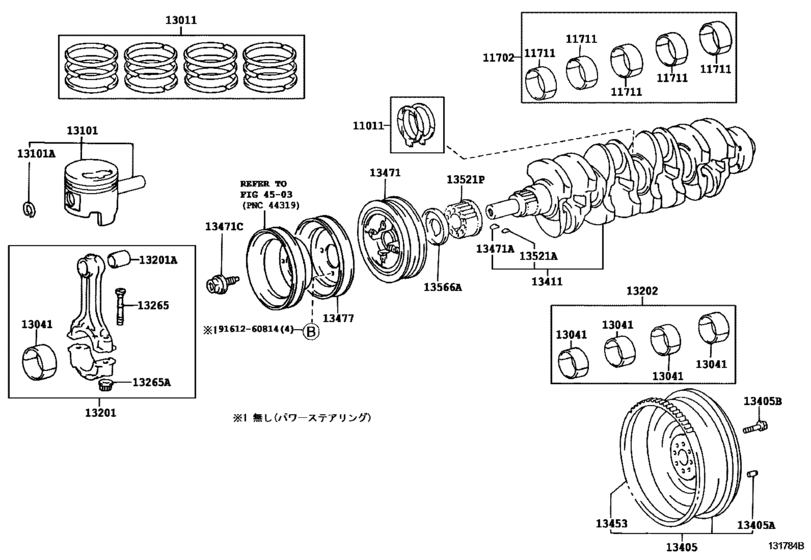

Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#) 58

#	OEM	Part name
11011	11011-54020	Washer Set, Crankshaft Thrust
11011	11012-54020	Washer Set, Crankshaft Thrust
11011	11013-54020	Washer Set, Crankshaft Thrust
11702	11704-54061	Bearing Set, Crankshaft
11702	11704-54081	Bearing Set, Crankshaft (0.25)
11702	11705-54061	Bearing Set, Crankshaft
11702	11705-54081	Bearing Set, Crankshaft (0.50)
11711	11701-54061-01	Bearing, Crankshaft
11711	11701-54081-01	Bearing, Crankshaft
11711	11701-51081-01	Bearing, Crankshaft
11711	11701-54061-02	Bearing, Crankshaft
11711	11701-54081-02	Bearing, Crankshaft
11711	11701-54061-03	Bearing, Crankshaft
11711	11701-54081-03	Bearing, Crankshaft
13011	13011-54100	Ring Set, Piston
13011	13013-54100	Ring Set, Piston
13011	13014-54100	Ring Set, Piston
13011	13015-54100	Ring Set, Piston
13041	13041-54041-01	Bearing, Connecting Rod
13041	13041-54042-01	Bearing, Connecting Rod
13041	13041-54041-02	Bearing, Connecting Rod
13041	13041-54042-02	Bearing, Connecting Rod
13041	13041-54041-03	Bearing, Connecting Rod
13041	13041-54042-03	Bearing, Connecting Rod
13101	13101-54090-01	Piston Sub-Assy, W/pin
13101	13101-54091-01	Piston Sub-Assy, W/pin
13101	13101-54090-02	Piston Sub-Assy, W/pin
13101	13101-54091-02	Piston Sub-Assy, W/pin
13101	13101-54090-03	Piston Sub-Assy, W/pin
13101	13101-54091-03	Piston Sub-Assy, W/pin
13101	13103-54090	Piston Sub-Assy, W/pin
13101	13103-54091	Piston Sub-Assy, W/pin
13101	13104-54090	Piston Sub-Assy, W/pin
13101	13104-54091	Piston Sub-Assy, W/pin
13101	13105-54090	Piston Sub-Assy, W/pin
13101	13105-54091	Piston Sub-Assy, W/pin
13101	90521-31001	Ring, Hole Snap(For Piston Pin)
13201	13201-59105	Rod Sub-Assy, Connecting
13201	13201-59216	Rod Sub-Assy, Connecting
13201	90999-73115	Bush(For Connecting Rod Small End)
13202	13204-54041	Bearing Set, Connecting Rod
13202	13204-54042	Bearing Set, Connecting Rod (0.25)
13202	13205-54041	Bearing Set, Connecting Rod (0.50)
13202	13205-54042	Bearing Set, Connecting Rod (0.50)
13265	13265-54020	Bolt, Connecting Rod
13265	13265-54021	Bolt, Connecting Rod
13265	90179-10123	Nut, Hexagon(For Connecting Rod Bolt)
13411	13401-54070	Crankshaft
13471	13408-54070	Pulley, Crankshaft
13471	13408-54090	Pulley, Crankshaft
13471	95161-30622	Key, Crankshaft(For Crankshaft Pulley Set)
13471	90119-14031	Bolt(For Crankshaft Pulley Set)
13471	90901-19028	Bolt(For Crankshaft Pulley Set)
13477	88451-95J03	Pulley, Crankshaft, No.2
13521	13521-54030	Pulley, Crankshaft Timing
13566	13566-54040	Guide, Timing Belt
9161260814	91612-60814	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161260814	91611-60814	Bolt

OEM	Part name	Category
11011-54020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
11012-54020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
11013-54020	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
11701-51081-01	Bearing, Crankshaft	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
11701-54061-01	Bearing, Crankshaft	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
11701-54061-02	Bearing, Crankshaft	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
11701-54061-03	Bearing, Crankshaft	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
11701-54081-01	Bearing, Crankshaft	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
11701-54081-02	Bearing, Crankshaft	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
11701-54081-03	Bearing, Crankshaft	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
11704-54061	Bearing Set, Crankshaft	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
11704-54081	Bearing Set, Crankshaft (0.25)	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
11705-54061	Bearing Set, Crankshaft	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
11705-54081	Bearing Set, Crankshaft (0.50)	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13011-54100	Ring Set, Piston	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13013-54100	Ring Set, Piston	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13014-54100	Ring Set, Piston	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13015-54100	Ring Set, Piston	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13041-54041-01	Bearing, Connecting Rod	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13041-54041-02	Bearing, Connecting Rod	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13041-54041-03	Bearing, Connecting Rod	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13041-54042-01	Bearing, Connecting Rod	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13041-54042-02	Bearing, Connecting Rod	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13041-54042-03	Bearing, Connecting Rod	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13101-54090-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13101-54090-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13101-54090-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13101-54091-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13101-54091-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13101-54091-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13103-54090	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13103-54091	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13104-54090	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13104-54091	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13105-54090	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13105-54091	Piston Sub-Assy, W/pin	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13201-59105	Rod Sub-Assy, Connecting	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13201-59216	Rod Sub-Assy, Connecting	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13204-54041	Bearing Set, Connecting Rod	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13204-54042	Bearing Set, Connecting Rod (0.25)	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13205-54041	Bearing Set, Connecting Rod (0.50)	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13205-54042	Bearing Set, Connecting Rod (0.50)	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13265-54020	Bolt, Connecting Rod	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13265-54021	Bolt, Connecting Rod	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13401-54070	Crankshaft	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13408-54070	Pulley, Crankshaft	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13408-54090	Pulley, Crankshaft	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13521-54030	Pulley, Crankshaft Timing	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
13566-54040	Guide, Timing Belt	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
88451-95J03	Pulley, Crankshaft, No.2	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
90119-14031	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
90179-10123	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
90521-31001	Ring, Hole Snap(For Piston Pin)	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
90901-19028	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
90999-73115	Bush(For Connecting Rod Small End)	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
91611-60814	Bolt	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
91612-60814	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
95161-30622	Key, Crankshaft(For Crankshaft Pulley Set)	Crankshaft & Piston ([08.1989 - ] (8908- )2L,2LT#,3L,5L..LH100,102,103,109,11#, 12#,140,16#,17#,18#)
