LH120

Toyota HIACE · 1989 · 4,599 parts · 263 categories

4,599 items

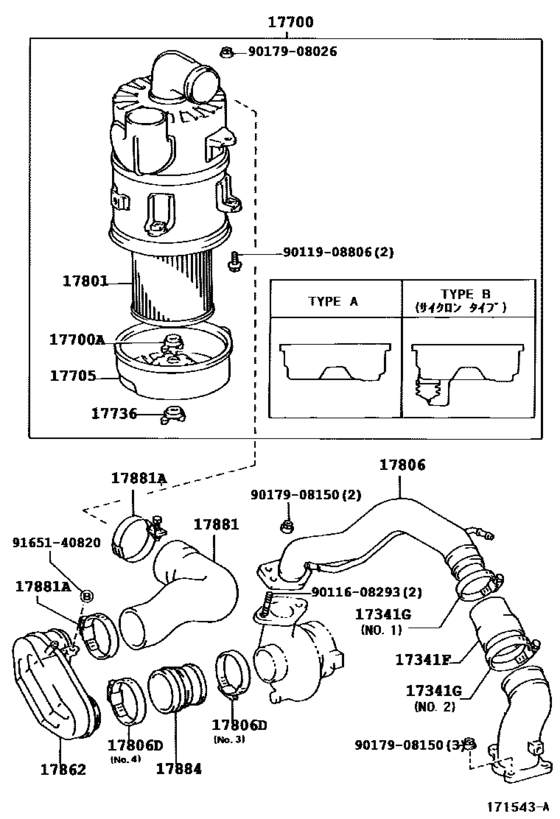

Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE) 24

#	OEM	Part name
17341	17341-54030	Hose, Air, No.1
17341	90460-65008	Clamp Or Clip(For Air Hose, No.1)
17341	90460-65002	Clamp Or Clip(For Air Hose, No.1)
17341	90467-60001	Clamp Or Clip(For Air Hose, No.1)
17700	17700-54670	Cleaner Assy, Air
17700	17700-54680	Cleaner Assy, Air
17700	90175-08008	Nut, Wing(For Air Cleaner)
17705	17705-75010	Cap Sub-Assy, Air Cleaner
17705	17705-75020	Cap Sub-Assy, Air Cleaner
17736	90175-06003	Nut, Wing(For Air Cleaner)
17801	17801-54110	Element Sub-Assy, Air Cleaner Filter
17806	17103-54110	Pipe Sub-Assy, Air Cleaner, No.2
17806	90460-67004	Clamp Or Clip(For Air Hose, No.1)
17806	90460-75001	Clamp Or Clip(For Air Hose, No.1)
17806	90460-75004	Clamp(For Air Cleaner Pipe)
17862	17862-54021	Connector, Intake Air, No.2
17881	17881-54430	Hose, Air Cleaner, No.1
17881	96111-10780	Clamp, Hose(For Air Connector)
17884	17884-54011	Hose, Air Cleaner, No.2
9011608293	90116-08293	Bolt, Stud(For Manifold To Venturi)
9011908806	90119-08806	BOLT WWASHER
9017908026	90179-08026	Nut (For Front Wiper Arm Setting)
9017908150	90179-08150	NUT
9165140820	91651-40820	Bolt

OEM	Part name	Category
17103-54110	Pipe Sub-Assy, Air Cleaner, No.2	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
17341-54030	Hose, Air, No.1	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
17700-54670	Cleaner Assy, Air	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
17700-54680	Cleaner Assy, Air	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
17705-75010	Cap Sub-Assy, Air Cleaner	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
17705-75020	Cap Sub-Assy, Air Cleaner	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
17801-54110	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
17862-54021	Connector, Intake Air, No.2	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
17881-54430	Hose, Air Cleaner, No.1	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
17884-54011	Hose, Air Cleaner, No.2	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
90116-08293	Bolt, Stud(For Manifold To Venturi)	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
90119-08806	BOLT WWASHER	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
90175-06003	Nut, Wing(For Air Cleaner)	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
90175-08008	Nut, Wing(For Air Cleaner)	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
90179-08026	Nut (For Front Wiper Arm Setting)	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
90179-08150	NUT	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
90460-65002	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
90460-65008	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
90460-67004	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
90460-75001	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
90460-75004	Clamp(For Air Cleaner Pipe)	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
90467-60001	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
91651-40820	Bolt	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
96111-10780	Clamp, Hose(For Air Connector)	Air Cleaner ([10.1990 - 08.1993] (9010-9308)2LTE)
