Search › Model › LH11
LH11

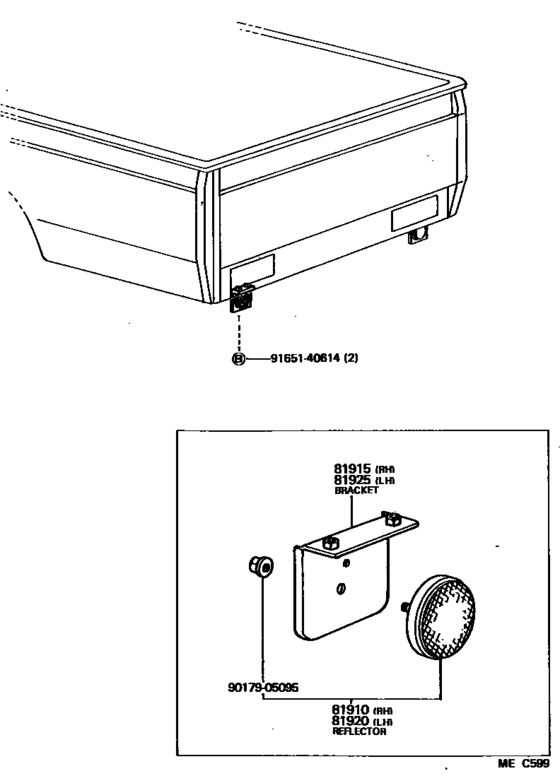

Reflex Reflector ([11.1982 - ] (8211- )) 5
| # | OEM | Part name |
|---|---|---|
| 81910 | 81910-39055 | Reflector Assy, Reflex, Rh |
| 81915 | 81941-95600 | Bracket, Reflex Reflector, Rh |
| 9017905095 | 90179-05095 | NUT |
| 9017905095 | 90179-05004 | NUT |
| 9165140614 | 91651-40614 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 81910-39055 | Reflector Assy, Reflex, Rh | Reflex Reflector ([11.1982 - ] (8211- )) |
| 81941-95600 | Bracket, Reflex Reflector, Rh | Reflex Reflector ([11.1982 - ] (8211- )) |
| 90179-05004 | NUT | Reflex Reflector ([11.1982 - ] (8211- )) |
| 90179-05095 | NUT | Reflex Reflector ([11.1982 - ] (8211- )) |
| 91651-40614 | Bolt | Reflex Reflector ([11.1982 - ] (8211- )) |
