Search › Model › LH11

LH11

Toyota HIACE · 1979 · 3,721 parts · 166 categories

3,721 items

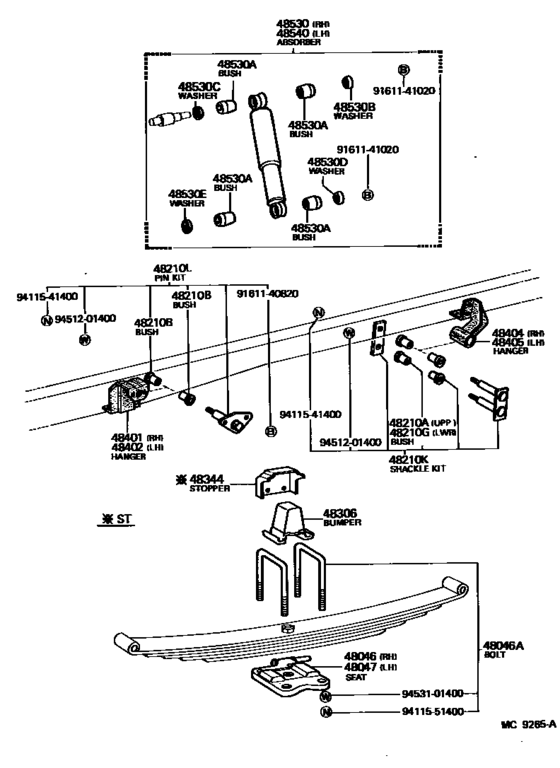

Rear Spring & Shock Absorber ([11.1982 - ] (8211- )) 48

#	OEM	Part name
48046	48046-26040	Seat Sub-Assy, Spring U Bolt, Rh
48046	90118-14200	Bolt, U(For Rear Spring)
48046	90117-14025	Bolt, U(For Rear Spring)
48047	48047-26040	Seat Sub-Assy, Spring U Bolt, Lh
48210	90385-18046	Bush(For Front Spring Shackle)
48210	04483-26010	Shackle Kit, Rear Spring
48210	04483-35040	Shackle Kit, Rear Spring
48210	04484-27010	Pin Kit, Rear Spring
48210	04482-35030	Pin Kit, Front Spring
48210	48210-26210	Spring Assy, Rear Rh
48211	48211-26060	Leaf, Rear Spring, No.1
48212	48212-26060	Leaf, Rear Spring, No.2
48213	48202-26060	Leaf, Rear Spring, No.3
48213	48202-26111	Leaf, Rear Spring, No.3
48214	48214-26060	Leaf, Rear Spring, No.4
48215	48203-26060	Leaf, Rear Spring, No.5
48215	48204-26060	Leaf, Rear Spring, No.5
48216	48216-26060	Leaf, Rear Spring, No.6
48216	48216-26110	Leaf, Rear Spring, No.6
48220	48220-26210	Spring Assy, Rear Lh
48220	48220-26060	Spring Assy, Rear Lh
48241	48241-26060	Clip, Rear Spring, No.1
48242	48242-26011	Clip, Rear Spring, No.2
48246	48246-26060	Case, Rear Spring Clip Bolt
48247	48247-36052	Bolt, Rear Spring, Center
48256	48256-26010	Bolt, Hexagon(For Rear Spring Clip Set)
48306	48306-26050	Bumper Sub-Assy, Rear Spring
48344	48344-25010	Stopper, Bumper, Rear
48401	48414-26011	Bracket Sub-Assy, Rear Spring, Front Rh
48404	48416-26011	Bracket Sub-Assy, Rear Spring, Rear Rh
48405	48417-26011	Bracket Sub-Assy, Rear Spring, Rear Lh
48530	48531-29385	Absorber Assy, Shock, Rear Rh
48530	48531-29018	Absorber Assy, Shock, Rear Rh
48530	90385-16007	Cushion, Front Shock Absorber
48530	90948-03012	Washer, Front Shock Absorber Cushion, No.1
48530	90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)
9161141020	91611-41020	Bolt(for Transaxle & Engine Setting)
9161141020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9411041000	94110-41000	Nut(For Steering Damper)
9411541400	94115-41400	Nut(For Backing Plate To Steering Knuckle Setting)
9411551400	94115-51400	Nut, Lock
9451201400	94512-01400	Washer(For Rear Spring U Bolt)
9453101400	94531-01400	New Genuine Part
9511100818	95111-00818	New Genuine Part
9511100922	95111-00922	New Genuine Part

OEM	Part name	Category
04482-35030	Pin Kit, Front Spring	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
04483-26010	Shackle Kit, Rear Spring	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
04483-35040	Shackle Kit, Rear Spring	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
04484-27010	Pin Kit, Rear Spring	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48046-26040	Seat Sub-Assy, Spring U Bolt, Rh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48047-26040	Seat Sub-Assy, Spring U Bolt, Lh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48202-26060	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48202-26111	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48203-26060	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48204-26060	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48210-26210	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48211-26060	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48212-26060	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48214-26060	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48216-26060	Leaf, Rear Spring, No.6	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48216-26110	Leaf, Rear Spring, No.6	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48220-26060	Spring Assy, Rear Lh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48220-26210	Spring Assy, Rear Lh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48241-26060	Clip, Rear Spring, No.1	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48242-26011	Clip, Rear Spring, No.2	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48246-26060	Case, Rear Spring Clip Bolt	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48247-36052	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48256-26010	Bolt, Hexagon(For Rear Spring Clip Set)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48306-26050	Bumper Sub-Assy, Rear Spring	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48344-25010	Stopper, Bumper, Rear	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48414-26011	Bracket Sub-Assy, Rear Spring, Front Rh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48416-26011	Bracket Sub-Assy, Rear Spring, Rear Rh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48417-26011	Bracket Sub-Assy, Rear Spring, Rear Lh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48531-29018	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
48531-29385	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
90117-14025	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
90118-14200	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
90385-16007	Cushion, Front Shock Absorber	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
90385-18046	Bush(For Front Spring Shackle)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
90948-03012	Washer, Front Shock Absorber Cushion, No.1	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
91611-41020	Bolt(for Transaxle & Engine Setting)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
91612-B1020	Bolt (For Transfer Case)Cover No.2	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
94110-40800	Nut(For Steering Damper)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
94110-41000	Nut(For Steering Damper)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
94115-41400	Nut(For Backing Plate To Steering Knuckle Setting)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
94115-51400	Nut, Lock	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
94130-00802	Nut, No.1 (For Center Support Bearing)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
94512-01400	Washer(For Rear Spring U Bolt)	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
94531-01400	New Genuine Part	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
95111-00818	New Genuine Part	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
95111-00922	New Genuine Part	Rear Spring & Shock Absorber ([11.1982 - ] (8211- ))
