LH11

Toyota HIACE · 1979 · 3,721 parts · 166 categories

3,721 items

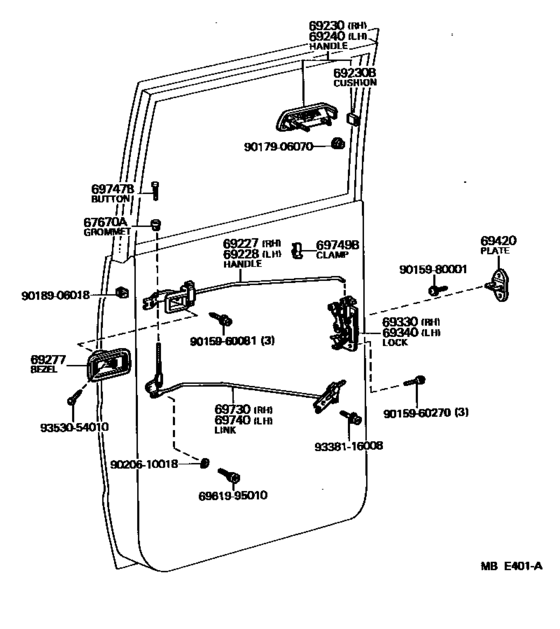

Rear Door Lock & Handle ([11.1982 - ] (8211- )) 29

#	OEM	Part name
67670	90480-10102	Grommet(For Door Panel Lock Button)
67670	90480-10102-01	Grommet(For Rear Door Panel Lock Button)
69227	69750-95A02	Handle, Rear Door Inside, Rh
69228	69760-95A02	Handle, Rear Door Inside, Lh
69230	69210-95011	Handle Assy, Front Door, Outside Rh
69230	69239-95700	Cushion(For Front Door Outside Handle)
69240	69220-95011	Handle Assy, Front Door Outside, Lh
69277	69276-10012-01	Bezel, Front Door Inside Handle
69330	69310-95012	Lock Assy, Rear Door, Rh
69340	69320-95014	Lock Assy, Rear Door, Lh
69420	69410-95010	Striker, Tail Gate Lock
69420	69410-37010	Plate Assy, Rear Door Lock Striker
69730	69701-95A00	Link Assy, Rear Door Open Control, Rh
69740	69702-95A00	Link Assy, Rear Door Open Control, Lh
69747	69747-20020-01	Button, Door Locking
69747	69747-20020-C0	Button, Door Locking(For Front Door)
69749	69749-30020	Clamp, No.1(For Back Door Lock Control Cable)
6961995010	69619-95010	Bolt, Rear Door Locking Control
9015960081	90159-60081	SCREW
9015960270	90159-60270	New Genuine Part
9015980001	90159-80001	SCREW
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9018906018	90189-06018	GROMMET
9020610018	90206-10018	Washer, Wave(For Gear Selecting Rod, No.2)
9338116008	93381-16008	Bolt, Exhaust Valve Link Cover
9338116008	46791-37150	Bolt, Exhaust Valve Link Cover
9353054010	93530-54010	SCREW
9353054010	90084-16012	SCREW

OEM	Part name	Category
46791-37150	Bolt, Exhaust Valve Link Cover	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
69210-95011	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
69220-95011	Handle Assy, Front Door Outside, Lh	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
69239-95700	Cushion(For Front Door Outside Handle)	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
69276-10012-01	Bezel, Front Door Inside Handle	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
69310-95012	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
69320-95014	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
69410-37010	Plate Assy, Rear Door Lock Striker	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
69410-95010	Striker, Tail Gate Lock	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
69619-95010	Bolt, Rear Door Locking Control	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
69701-95A00	Link Assy, Rear Door Open Control, Rh	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
69702-95A00	Link Assy, Rear Door Open Control, Lh	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
69747-20020-01	Button, Door Locking	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
69747-20020-C0	Button, Door Locking(For Front Door)	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
69749-30020	Clamp, No.1(For Back Door Lock Control Cable)	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
69750-95A02	Handle, Rear Door Inside, Rh	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
69760-95A02	Handle, Rear Door Inside, Lh	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
90084-16012	SCREW	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
90159-60081	SCREW	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
90159-60270	New Genuine Part	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
90159-80001	SCREW	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
90189-06018	GROMMET	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
90206-10018	Washer, Wave(For Gear Selecting Rod, No.2)	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
90480-10102	Grommet(For Door Panel Lock Button)	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
90480-10102-01	Grommet(For Rear Door Panel Lock Button)	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
93381-16008	Bolt, Exhaust Valve Link Cover	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
93530-54010	SCREW	Rear Door Lock & Handle ([11.1982 - ] (8211- ))
