LH11

Toyota HIACE · 1979 · 3,721 parts · 166 categories
LH11 ×

← Back to categories

3,721 items

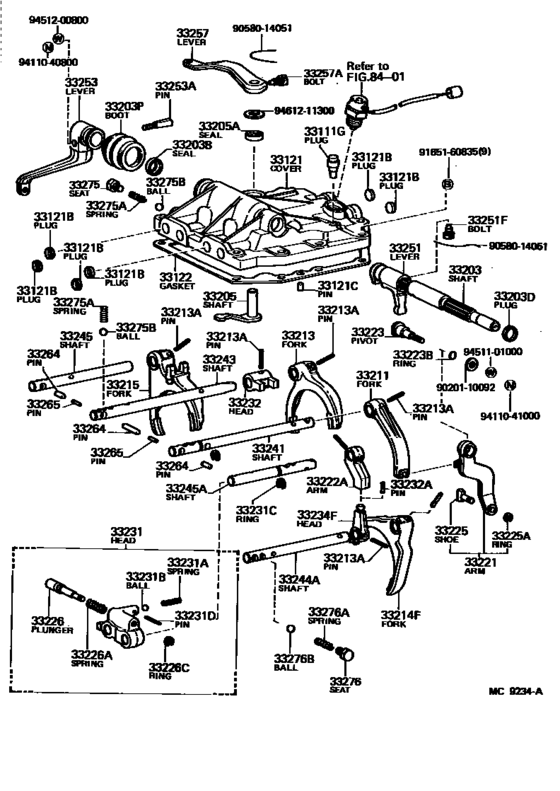

Gear Shift Fork & Lever Shaft (Mtm) ([11.1982 - 01.1984] (8211-8401)5H) 106
#OEMPart name
33111 90930-03065 Plug, Breather(For Manual Transmission)
33121 33121-35060 Cover, Manual Transmission Case
33121 33121-28010 Cover, Manual Transmission Case
33121 90341-18049 Plug(For Oil Heater Houl)
33121 90430-18008 Gasket
33121 90331-14004 Plug, Manual Transmission Case
33121 90250-10214 Pin, Straight(For End Plate)
33122 33122-35020 Gasket, Manual Transmission Case Cover
33203 33261-26030 Shaft Sub-Assy, Shift Lever, No.1
33203 90311-18002 Seal, Oil(For Extension Housing Rear)
33203 90313-20001 Seal, Oil(For Shift Lever Shaft)
33203 90331-24002 Plug, Tight(For Shift Lever Shaft)
33203 33531-26010 Boot, Dust(For Shift Lever Shaft)
33205 33262-28020 Shaft Sub-Assy, Select Lever
33205 33262-35031 Shaft Sub-Assy, Select Lever
33205 90313-13001 Seal, Oil(For Shift Lever Shaft)
33211 33211-28010 Fork, Reverse Shift
33211 33211-35020 Fork, Reverse Shift
33213 33212-26030 Fork, Gear Shift, No.1
33213 33212-35010 Fork, 1St & 2Nd Shift
33213 90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)
33213 90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)
33214 33214-28010 Fork, 5Th Shift
33214 33395-35020 Sleeve, Transmission Hub, No.3
33214 33214-26020 Fork, 5Th Shift
33214 33245-26010 Shaft, 5Th Shift Fork
33214 90105-06143 Bolt(For Shift Fork Set)
33214 33214-35011 Fork, 5Th Shift
33215 33213-28011 Fork, Gear Shift, No.2
33215 33220-26010 Fork, Gear Shift, No.2
33215 33364-26020 Sleeve, Transmission Hub, No.2
33215 33213-35020 Fork, 3Rd & 4Th Shift
33221 33201-35020 Arm, Reverse Shift
33221 33221-28010 Arm, Reverse Shift
33222 33233-28011 Arm, 5Th Shift
33223 33223-35020 Pivot, Shift Arm
33223 96711-19010 Ring, O(For Oil Level Gage Guide)
33225 33225-35020 Shoe, Shift Arm
33225 33225-35030 Shoe, Shift Arm
33225 90520-08098 Ring, Shaft Snap(For Shift Arm Shoe)
33225 96160-00800 Ring, E(For Counter Weight)
33226 33226-35011 Plunger, Reverse Shift Return
33226 90501-14046 Spring, Compression(For Reverse Shift Return Plunger)
33226 90520-06001 Ring, Shaft Snap(For Reverse Shift Return Plunger)
33231 33202-26011 Head, Reverse Shift
33231 33231-28010 Head, Reverse Shift
33231 33231-28020 Head, Reverse Shift
33231 33232-28020 Head, 1St & 2Nd Shift
33231 90501-10046 Spring, Reverse Shift Restrict
33231 90360-06004 Ball, Detent(For Gear Shift Head No.4)
33231 90080-36191 Ball, Check Valve
33231 90360-10003 Ball(For Transmission Oil Pump Cover)
33231 90523-12001 Ring(For Reverse Shift Head)
33231 96160-01200 Ring, E(For Clutch Release Cable)
33231 90254-03006 Pin(For Reverse Shift Head)
33232 33232-28010 Head, 1St & 2Nd Shift
33232 33232-35010 Head, 1St & 2Nd Shift
33232 90254-03005 Pin (For Oil Pump Drive Shaft Cap)
33234 33234-35010 Head, Reverse & 5Th Shift
33241 33244-28010 Shaft, Reverse Shift Fork
33241 33244-28011 Shaft, Reverse Shift Fork
33241 90520-12003 Ring(For Reverse Shift Head)
33241 33245-35020 Shaft, Reverse Shift Fork
33243 33242-26020 Shaft, Gear Shift Fork, No.1
33243 33242-35010 Shaft, 1St & 2Nd Shift Fork
33244 33245-28010 Shaft, 5Th Shift Fork
33244 33246-35010 Shaft, 5Th Shift Fork
33245 33243-28010 Shaft, 3Rd & 4Th Shift Fork
33245 33243-28020 Shaft, 3Rd & 4Th Shift Fork
33245 33243-35051 Shaft, Gear Shift Fork, No.2
33245 33243-35050 Shaft, Gear Shift Fork, No.2
33245 33244-35010 Shaft, 5Th Shift Arm
33251 33251-26030 Lever, Shift & Select
33251 33251-28011 Lever, Shift & Select
33251 33251-28030 Lever, Shift & Select
33251 33261-28030 Shaft, Shift & Select Lever
33251 33218-35010 Bolt, Shift Lever Lock
33253 33253-26030 Lever, Shift Outer, No.1
33253 33253-26040 Lever, Shift Outer, No.1
33253 33281-16020 Pin, Lever Lock (For Shift Outer Lever)
33253 33282-57010 Pin, Lever Lock (For Shift Outer Lever)
33257 33257-26030 Lever, Select Outer
33257 33257-26050 Lever, Select Outer
33264 90361-10001 Pin, Or Ball, Shift Inter Lock, No.1
33264 90361-10002 Pin, Or Ball, Shift Inter Lock, No.1
33264 90361-10003 Pin, Or Ball, Shift Inter Lock, No.1
33264 90361-10008 Pin, Or Ball, Shift Inter Lock, No.1
33265 90250-05010 Pin, Shift Inter Lock, No.2
33265 90250-05020 Pin, Straight (For Shift & Select Lever Shaft)
33275 90341-12003 Seat, Shift Detent Ball Spring, No.1
33275 90341-12014 Plug, W/head Straight Screw, No.1(For Cylinder Block)
33275 90501-13004 Spring, Compression (For Shift Detent Ball Low Side)
33275 90501-14123 Spring, Compression (For Shift Detent Ball Low Side)
33275 90501-13006 Spring, Compression (For Shift Detent Ball Low Side)
33275 90501-14061 Spring, Compression (For Shift Detent Ball Low Side)
33275 90501-14062 Spring, Compression (For Shift Detent Ball Low Side)
33275 90501-14132 Spring, Compression (For Shift Detent Ball Low Side)
9020110092 90201-10092 Washer, Plate(For Cylinder Head Set)
9058014051 90580-14051 Wire (For Shift & Select Lever)
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9411041000 94110-41000 Nut(For Steering Damper)
9451101000 94511-01000 Washer(For Rear Drive Shaft)
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9461211300 94612-11300 Washer(For Outer Lever Oil Setting)
