Search › Model › LH11

LH11

Toyota HIACE · 1979 · 3,721 parts · 166 categories

3,721 items

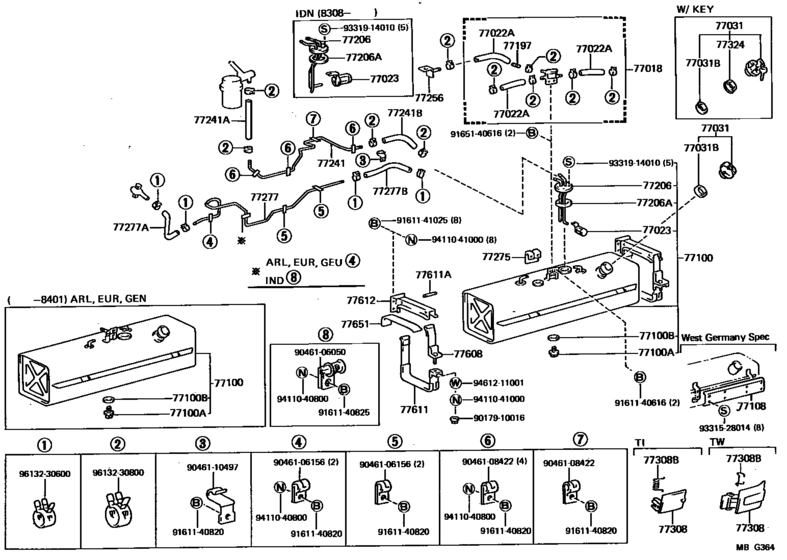

Fuel Tank & Tube ([11.1982 - ] (8211- )LH11) 81

#	OEM	Part name
77018	77018-26040	Valve Sub-Assy, Fuel Vapour Separate
77018	77018-26120	Valve Sub-Assy, Fuel Vapour Separate
77022	95332-08020	Hose, Fuel Pipe, No.1
77022	95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77022	95332-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77022	95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77023	77023-22040	Filter Sub-Assy, Fuel Suction Tube
77031	69058-89102	Cylinder & Key Set, Fuel Inlet Lock
77031	69058-95406	Cylinder & Key Set, Fuel Filler Lid
77031	77310-55080	Cap Assy, Fuel Tank
77031	77310-60100	Cap Assy, Fuel Tank
77031	77316-12031	Gasket, Fuel Filler Lid Cylinder
77031	77316-27010	Gasket (For Fuel Tank Cap)
77031	69058-95A05	Cap Assy, Fuel Tank
77100	77001-26091	Tank Assy, Fuel
77100	77001-26170	Tank Assy, Fuel
77100	77001-26092	Tank Assy, Fuel
77100	90105-12018	Plug(For Fuel Tank)
77100	90430-12245	Gasket(For Fuel Tank)
77108	77161-26010	Protector Sub-Assy, Fuel Tank
77197	77198-35010	Orifice, Fuel Vapor
77206	77017-26090	Tube Sub-Assy, Fuel Tank Suction
77206	77169-14020	Gasket, Fuel Tank Vent
77241	77251-26102	Tube, Fuel Main, No.1
77241	77251-26260	Tube, Fuel Main, No.1
77241	95332-08040	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241	95337-08040	Hose, Fuel, No.2 (For Main Tube, No.1)
77241	77251-26290	Tube, Fuel Main, No.1
77256	77244-26010	Tube, Fuel Emission, No.3
77256	77244-26030	Tube, Fuel Emission, No.3
77275	77197-25010	Protector, Fuel Evaporative Separator
77277	77256-26150	Tube, Fuel Return, No.1
77277	95332-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)
77277	95337-06020	Hose, Differential Pressure Control
77277	95332-06030	Hose(For Carburetor)
77277	95333-06030	Hose, Fuel
77277	95332-06040	Hose(For Valve To Timing Gear)
77277	95333-06040	Hose
77277	77256-26170	Tube, Fuel Return, No.1
77308	64016-95A00	Cover Sub-Assy, Fuel Inlet Box
77308	65644-91336	Spring, Torsion(For Fuel Inlet Box Cover)
77308	65640-95600	Cover Sub-Assy, Fuel Inlet Box
77308	90508-23186	Spring, Torsion(For Fuel Inlet Box Cover)
77324	77324-12011	Spring, Fuel Tank Cap
77608	77603-25010	Band Sub-Assy, Fuel Tank, No.2
77608	77603-26011	Band Sub-Assy, Fuel Tank, No.2
77608	77603-28010	Band Sub-Assy, Fuel Tank, No.2
77611	77601-25090	Band Sub-Assy, Fuel Tank, No.1
77611	77601-26040	Band, Fuel Tank
77611	77601-26050	Band Sub-Assy, Fuel Tank, No.1
77611	77629-25010	Pin (For Fuel Tank Band)
77612	77501-28011	Bracket Sub-Assy, Fuel Tank
77612	77501-25091	Bracket Sub-Assy, Fuel Tank
77651	77651-25050	Packing, Fuel Tank Bracket
77651	77651-26040	Packing, Fuel Tank Bracket
9017910016	90179-10016	Nut(For Counter Gear Shaft)
9017910016	90179-10132	Nut
9046106050	90461-06050	New Genuine Part
9046106156	90461-06156	New Genuine Part
9046108422	90461-08422	New Genuine Part
9046110497	90461-10497	New Genuine Part
9161140616	91611-40616	Bolt, Hexagon(For Steering Column Bracket)
9161140616	91611-B0616	Bolt(For Transaxle Case Receiver)
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)
9161140825	91611-40825	Bolt(For Clutch Release Cylinder Setting)
9161140825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9161141025	91611-41025	Bolt(for Transaxle & Engine Setting)
9161141025	91612-61025	Bolt (For Control Shaft Cover)
9165140616	91651-40616	BOLT
9165140616	91621-60614	Bolt(For Transaxle & Engine Setting)
9165140616	90080-11395	New Genuine Part
9331528014	93315-28014	New Genuine Part
9331914010	93319-14010	SCREW
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9411041000	94110-41000	Nut(For Steering Damper)
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)
9613230600	96132-30600	Clip(For Actuator Hose)
9613230600	96132-51100	Clip (For Hose)
9613230800	96132-30800	Clip, No.3(For Idle-Up Hose)
9613230800	96132-51300	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
64016-95A00	Cover Sub-Assy, Fuel Inlet Box	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
65640-95600	Cover Sub-Assy, Fuel Inlet Box	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
65644-91336	Spring, Torsion(For Fuel Inlet Box Cover)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
69058-89102	Cylinder & Key Set, Fuel Inlet Lock	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
69058-95406	Cylinder & Key Set, Fuel Filler Lid	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
69058-95A05	Cap Assy, Fuel Tank	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77001-26091	Tank Assy, Fuel	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77001-26092	Tank Assy, Fuel	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77001-26170	Tank Assy, Fuel	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77017-26090	Tube Sub-Assy, Fuel Tank Suction	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77018-26040	Valve Sub-Assy, Fuel Vapour Separate	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77018-26120	Valve Sub-Assy, Fuel Vapour Separate	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77023-22040	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77161-26010	Protector Sub-Assy, Fuel Tank	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77169-14020	Gasket, Fuel Tank Vent	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77197-25010	Protector, Fuel Evaporative Separator	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77198-35010	Orifice, Fuel Vapor	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77244-26010	Tube, Fuel Emission, No.3	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77244-26030	Tube, Fuel Emission, No.3	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77251-26102	Tube, Fuel Main, No.1	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77251-26260	Tube, Fuel Main, No.1	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77251-26290	Tube, Fuel Main, No.1	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77256-26150	Tube, Fuel Return, No.1	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77256-26170	Tube, Fuel Return, No.1	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77310-55080	Cap Assy, Fuel Tank	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77310-60100	Cap Assy, Fuel Tank	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77316-12031	Gasket, Fuel Filler Lid Cylinder	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77316-27010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77324-12011	Spring, Fuel Tank Cap	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77501-25091	Bracket Sub-Assy, Fuel Tank	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77501-28011	Bracket Sub-Assy, Fuel Tank	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77601-25090	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77601-26040	Band, Fuel Tank	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77601-26050	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77603-25010	Band Sub-Assy, Fuel Tank, No.2	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77603-26011	Band Sub-Assy, Fuel Tank, No.2	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77603-28010	Band Sub-Assy, Fuel Tank, No.2	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77629-25010	Pin (For Fuel Tank Band)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77651-25050	Packing, Fuel Tank Bracket	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
77651-26040	Packing, Fuel Tank Bracket	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
90080-11395	New Genuine Part	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
90105-12018	Plug(For Fuel Tank)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
90179-10016	Nut(For Counter Gear Shaft)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
90179-10132	Nut	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
90430-12245	Gasket(For Fuel Tank)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
90461-06050	New Genuine Part	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
90461-06156	New Genuine Part	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
90461-08422	New Genuine Part	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
90461-10497	New Genuine Part	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
90508-23186	Spring, Torsion(For Fuel Inlet Box Cover)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
91611-40616	Bolt, Hexagon(For Steering Column Bracket)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
91611-40825	Bolt(For Clutch Release Cylinder Setting)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
91611-41025	Bolt(for Transaxle & Engine Setting)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
91611-B0616	Bolt(For Transaxle Case Receiver)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
91612-61025	Bolt (For Control Shaft Cover)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
91621-60614	Bolt(For Transaxle & Engine Setting)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
91651-40616	BOLT	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
93315-28014	New Genuine Part	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
93319-14010	SCREW	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
94110-40800	Nut(For Steering Damper)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
94110-41000	Nut(For Steering Damper)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
94130-00802	Nut, No.1 (For Center Support Bearing)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
95332-06020	Hose, Fuel(For Injection Pump To Fuel Pipe)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
95332-06030	Hose(For Carburetor)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
95332-06040	Hose(For Valve To Timing Gear)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
95332-08020	Hose, Fuel Pipe, No.1	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
95332-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
95332-08040	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
95333-06030	Hose, Fuel	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
95333-06040	Hose	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
95333-08030	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
95337-08040	Hose, Fuel, No.2 (For Main Tube, No.1)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
96132-30600	Clip(For Actuator Hose)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
96132-30800	Clip, No.3(For Idle-Up Hose)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
96132-51300	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([11.1982 - ] (8211- )LH11)
