Search › Model › LH11

LH11

Toyota HIACE · 1979 · 3,721 parts · 166 categories

3,721 items

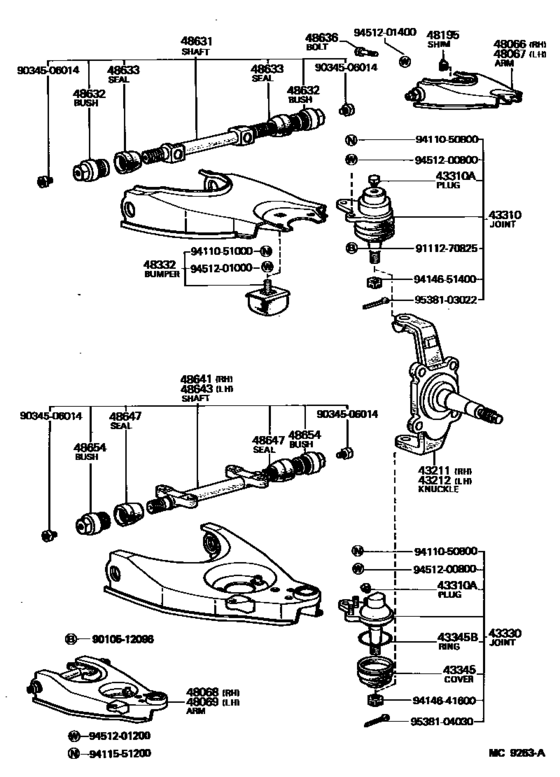

Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- )) 42

#	OEM	Part name
43211	43211-26020	Knuckle, Steering, Rh
43211	43211-26030	Knuckle, Steering, Rh
43212	43212-26010	Knuckle, Steering, Lh
43310	43350-29025	Joint Assy, Upper Ball
43310	91111-80825	Bolt, Flexible Attaching(for Steering Main Shaft)
43310	43350-29026	Joint Assy, Front Upper Ball, Rh
43310	94110-50800	Nut(For Repair Actuator Set)
43310	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
43310	43360-29025	Joint Assy, Upper Ball
43310	90345-06014	Plug (For Ball Joint)
43330	43330-39045	Joint Assy, Lower Ball, Front
43330	43340-39075	Joint Assy, Lower Ball, Front
43345	43345-35010	Cover, Lower Ball Joint Dust
43345	90522-58039	Ring, Set (For Lower Ball Joint Dust Cover)
43345	90580-09002	Ring, Set (For Lower Ball Joint Dust Cover)
48066	48066-26010	Arm Sub-Assy, Front Suspension, Upper Rh
48067	48067-26010	Arm Sub-Assy, Front Suspension, Upper Lh
48068	48068-26011	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48069	48069-26011	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48195	90565-15001	Shim, Camber Adjust
48195	90565-15016	Shim, Camber Adjust
48195	90565-15017	Shim, Camber Adjust
48195	90565-15018	Shim, Camber Adjust
48332	48305-29016	Bumper, Front Spring, No.2
48631	04485-26020	Shaft, Front Suspension Upper Arm
48632	48632-30012	Bush, Upper Arm
48633	48633-35010	Seal, Upper Arm Pivot Dust
48636	91112-71455	Bolt, Upper Arm Set
48636	91112-81455	Bolt, Upper Arm Set
48641	04486-26010	Shaft, Lower Arm, Rh
48647	48645-35010	Seal, Lower Arm Bush Dust
9010512096	90105-12096	New Genuine Part
9111270825	91112-70825	Bolt, Flexible Attaching(For Steering Main Shaft)
9411051000	94110-51000	Nut(For Steering Center Arm)
9411551200	94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)
9414641600	94146-41600	New Genuine Part
9414651400	94146-51400	Nut, Castle(For Tie Rod End)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201200	94512-01200	Washer
9451201400	94512-01400	Washer(For Rear Spring U Bolt)
9538103022	95381-03022	Cotter pin
9538104030	95381-04030	PIN

OEM	Part name	Category
04485-26020	Shaft, Front Suspension Upper Arm	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
04486-26010	Shaft, Lower Arm, Rh	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
43211-26020	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
43211-26030	Knuckle, Steering, Rh	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
43212-26010	Knuckle, Steering, Lh	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
43330-39045	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
43340-39075	Joint Assy, Lower Ball, Front	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
43345-35010	Cover, Lower Ball Joint Dust	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
43350-29025	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
43350-29026	Joint Assy, Front Upper Ball, Rh	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
43360-29025	Joint Assy, Upper Ball	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
48066-26010	Arm Sub-Assy, Front Suspension, Upper Rh	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
48067-26010	Arm Sub-Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
48068-26011	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
48069-26011	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
48305-29016	Bumper, Front Spring, No.2	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
48632-30012	Bush, Upper Arm	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
48633-35010	Seal, Upper Arm Pivot Dust	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
48645-35010	Seal, Lower Arm Bush Dust	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
90105-12096	New Genuine Part	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
90345-06014	Plug (For Ball Joint)	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
90522-58039	Ring, Set (For Lower Ball Joint Dust Cover)	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
90565-15001	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
90565-15016	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
90565-15017	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
90565-15018	Shim, Camber Adjust	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
90580-09002	Ring, Set (For Lower Ball Joint Dust Cover)	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
91111-80825	Bolt, Flexible Attaching(for Steering Main Shaft)	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
91112-70825	Bolt, Flexible Attaching(For Steering Main Shaft)	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
91112-71455	Bolt, Upper Arm Set	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
91112-81455	Bolt, Upper Arm Set	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
94110-50800	Nut(For Repair Actuator Set)	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
94110-51000	Nut(For Steering Center Arm)	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
94146-41600	New Genuine Part	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
94146-51400	Nut, Castle(For Tie Rod End)	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
94512-01200	Washer	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
94512-01400	Washer(For Rear Spring U Bolt)	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
95381-03022	Cotter pin	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
95381-04030	PIN	Front Axle Arm & Steering Knuckle ([11.1982 - ] (8211- ))
