Search › Model › LH11

LH11

Toyota HIACE · 1979 · 3,721 parts · 166 categories
LH11 ×

← Back to categories

3,721 items

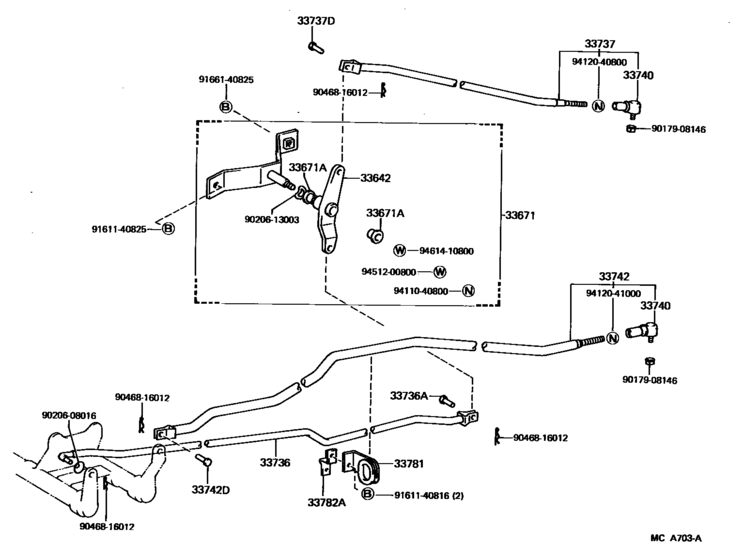

Control Shaft & Crossshaft ([01.1984 - ] (8401- )5H) 36
#OEMPart name
33642 33643-26050 Lever, Gear Selecting, No.2
33642 33643-26051 Lever, Gear Selecting, No.2
33671 33670-26180 Support, Control Rod, No.1
33671 33670-26181 Support, Control Rod, No.1
33671 90386-13007 Bush(For Clutch Pedal)
33671 90386-13192 Bush(For Over Center Plate)
33736 33701-26110 Rod, Gear Selecting, No.2(For Column Shift)
33736 33701-26111 Rod, Gear Selecting, No.2(For Column Shift)
33736 90240-08094 Pin, W/hole (For Column Shift Gear Selecting Rod)
33737 33850-26011 Rod, Gear Selecting, No.3 (For Column Shift)
33737 33850-26012 Rod, Gear Selecting, No.3 (For Column Shift)
33740 33740-26010 End Assy, Connecting Rod, No.1(For Column Shift)
33740 33740-36010 End Assy, Connecting Rod, No.1(For Column Shift)
33740 33740-36050 End Assy, Connecting Rod, No.1(For Column Shift)
33742 33730-26020 Rod, Gear Shifting, No.2(For Column Shift)
33742 33742-26080 Rod, Gear Shifting, No.2(For Column Shift)
33781 33781-26011 Guide, Shifting Rod
33782 33782-26010 Bracket, Shifting Rod Guide
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9020608016 90206-08016 Washer, Wave (For Low Speed Connecting Rod)
9020613003 90206-13003 Washer, Wave (For Power Take-Off Shift Lever)
9046816012 90468-16012 Pin, Sub Seat Cushion Pin
9161140816 91611-40816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816 91611-B0816 Bolt
9161140825 91611-40825 Bolt(For Clutch Release Cylinder Setting)
9161140825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9166140825 91661-40825 New Genuine Part
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9412040800 94120-40800 Nut(For Clutch Pedal Stopper)
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
9451200800 94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)
9461410800 94614-10800 Spacer (For Control Select Lever Support)
9461410800 94613-10800 Spacer (For Control Select Lever Support)
Source
Public OEM parts-catalog data
Variants
2 / 48
Category
166
Collected
2026-08-03
