LH11

Toyota HIACE · 1979 · 3,721 parts · 166 categories

← Back to categories

3,721 items

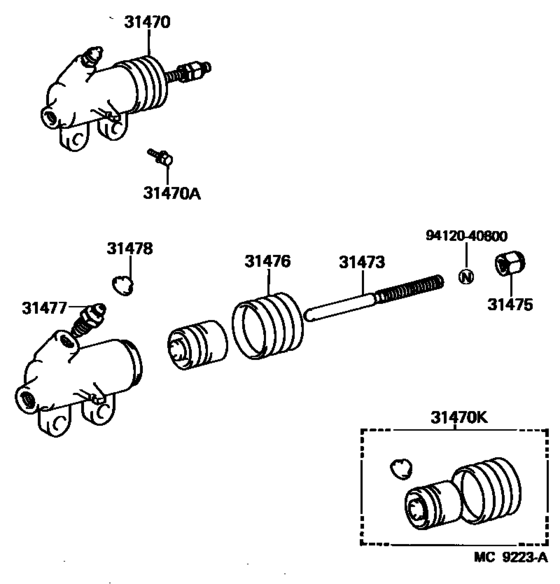

Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11) 16

#	OEM	Part name
31470	31470-26030	Cylinder Assy, Clutch Release
31470	31470-35060	Cylinder Assy, Clutch Release
31470	91611-40825	Bolt(For Clutch Release Cylinder Setting)
31470	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
31470	04313-25010	Cylinder Kit, Clutch Release
31470	04313-35040	Cylinder Kit, Clutch Release
31470	04313-36150	Cylinder Kit, Clutch Release
31470	31470-26070	Cylinder Assy, Clutch Release
31473	31473-25010	Rod, Clutch Release Cylinder Push, No.1
31473	31473-35040	Rod, Clutch Release Cylinder Push, No.1
31473	31473-22010	Rod, Clutch Release Cylinder Push, No.1
31475	31475-30020	Nut, Clutch Release Cylinder Push Rod
31476	31476-22010	Boot, Clutch Release Cylinder
31477	47547-12010	Plug, Bleeder(For Release Cylinder)
31478	31478-30010	Bleeder Plug Cap
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)

OEM	Part name	Category
04313-25010	Cylinder Kit, Clutch Release	Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11)
04313-35040	Cylinder Kit, Clutch Release	Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11)
04313-36150	Cylinder Kit, Clutch Release	Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11)
31470-26030	Cylinder Assy, Clutch Release	Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11)
31470-26070	Cylinder Assy, Clutch Release	Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11)
31470-35060	Cylinder Assy, Clutch Release	Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11)
31473-22010	Rod, Clutch Release Cylinder Push, No.1	Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11)
31473-25010	Rod, Clutch Release Cylinder Push, No.1	Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11)
31473-35040	Rod, Clutch Release Cylinder Push, No.1	Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11)
31475-30020	Nut, Clutch Release Cylinder Push Rod	Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11)
31476-22010	Boot, Clutch Release Cylinder	Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11)
31478-30010	Bleeder Plug Cap	Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11)
47547-12010	Plug, Bleeder(For Release Cylinder)	Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11)
91611-40825	Bolt(For Clutch Release Cylinder Setting)	Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11)
94120-40800	Nut(For Clutch Pedal Stopper)	Clutch Release Cylinder ([11.1982 - 01.1984] (8211-8401)LH11)

Source: Public OEM parts-catalog data
Variants: 2 / 48
Category: 166
Collected: 2026-08-03
