Search › Model › LH11

LH11

Toyota HIACE · 1979 · 3,721 parts · 166 categories

3,721 items

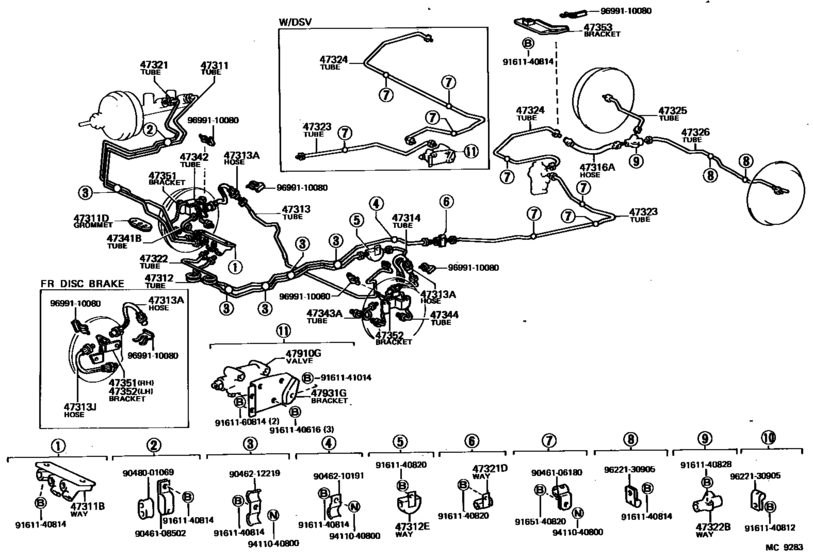

Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN) 60

#	OEM	Part name
47311	47311-26150	Tube, Front Brake, No.1
47311	90412-10028	Way, No.1(For Front Brake Tube)
47311	90480-01030	Grommet(For Front Brake Tube)
47312	47312-26160	Tube, Front Brake, No.2
47312	47312-26151	Tube, Front Brake, No.2
47312	90413-10146	Way, No.2(For Front Brake Tube)
47313	47313-26080	Tube, Front Brake, No.3
47313	47313-26070	Tube, Front Brake, No.3
47313	90947-02348	Hose, Flexible, No.1(For Front)
47313	90947-02350	Hose, Flexible, No.1(For Front)
47313	96960-32205	Hose, Flexible, No.2(For Front)
47314	47314-26070	Tube, Front Brake, No.4
47314	47314-26060	Tube, Front Brake, No.4
47316	96910-33805	Hose, Flexible(For Rear Brake Tube)
47321	47321-26060	Tube, Rear Brake, No.1
47321	90412-10006	Way(For Front Brake Tube)
47322	47322-26080	Tube, Rear Brake, No.2
47322	47322-26071	Tube, Rear Brake, No.2
47322	90413-10147	Way, 3(For Rear Brake Tube)
47323	47323-26120	Tube, Rear Brake, No.3
47323	47323-26130	Tube, Rear Brake, No.3
47323	47323-26150	Tube, Rear Brake, No.3
47324	47324-26060	Tube, Rear Brake, No.4
47324	47324-26080	Tube, Rear Brake, No.4
47324	47324-26070	Tube, Rear Brake, No.4
47325	47325-26120	Tube, Rear Brake, No.5
47325	47325-26130	Tube, Rear Brake, No.5
47326	47326-26100	Tube, Rear Brake, No.6
47326	47326-26110	Tube, Rear Brake, No.6
47341	47341-26020	Tube, Wheel Cylinder, Front Rh No.1
47342	47342-26010	Tube, Wheel Cylinder, Front Rh No.1
47343	47343-26010	Tube, Wheel Cylinder, Front Lh No.1
47351	47351-26030	Bracket, Flexible Hose(For Front Rh)
47351	47351-26042	Bracket, Flexible Hose(For Front Rh)
47352	47352-26030	Bracket, Flexible Hose(For Front Lh)
47352	47352-26042	Bracket, Flexible Hose(For Front Lh)
47353	47355-26030	Bracket, Flexible Hose(For Rear)
47910	47910-26050	Valve Assy, Deceleration Sensing Proportioning
47931	47931-26050	Bracket, Deceleration Sensing Valve
9046106180	90461-06180	New Genuine Part
9046108502	90461-08502	New Genuine Part
9046210191	90462-10191	New Genuine Part
9046212219	90462-12219	New Genuine Part
9048001069	90480-01069	Grommet(For Brake Tube)
9161140616	91611-40616	Bolt, Hexagon(For Steering Column Bracket)
9161140616	91611-B0616	Bolt(For Transaxle Case Receiver)
9161140812	91611-40812	Bolt(for Drive Plate & Torque Converter Setting)
9161140812	91611-B0812	Bolt
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)
9161140828	91611-40828	Bolt(For Clutch Release Cylinder Setting)
9161140828	91611-60828	Bolt(For Clutch Release Cylinder Setting)
9161141014	91611-41014	New Genuine Part
9161141014	91612-B1014	BOLT WWASHER
9165140820	91651-40820	Bolt
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9622130905	96221-30905	CLAMP
9699110080	96991-10080	CLIP

OEM	Part name	Category
47311-26150	Tube, Front Brake, No.1	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47312-26151	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47312-26160	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47313-26070	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47313-26080	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47314-26060	Tube, Front Brake, No.4	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47314-26070	Tube, Front Brake, No.4	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47321-26060	Tube, Rear Brake, No.1	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47322-26071	Tube, Rear Brake, No.2	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47322-26080	Tube, Rear Brake, No.2	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47323-26120	Tube, Rear Brake, No.3	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47323-26130	Tube, Rear Brake, No.3	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47323-26150	Tube, Rear Brake, No.3	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47324-26060	Tube, Rear Brake, No.4	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47324-26070	Tube, Rear Brake, No.4	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47324-26080	Tube, Rear Brake, No.4	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47325-26120	Tube, Rear Brake, No.5	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47325-26130	Tube, Rear Brake, No.5	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47326-26100	Tube, Rear Brake, No.6	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47326-26110	Tube, Rear Brake, No.6	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47341-26020	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47342-26010	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47343-26010	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47351-26030	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47351-26042	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47352-26030	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47352-26042	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47355-26030	Bracket, Flexible Hose(For Rear)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47910-26050	Valve Assy, Deceleration Sensing Proportioning	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
47931-26050	Bracket, Deceleration Sensing Valve	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
90412-10006	Way(For Front Brake Tube)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
90412-10028	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
90413-10146	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
90413-10147	Way, 3(For Rear Brake Tube)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
90461-06180	New Genuine Part	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
90461-08502	New Genuine Part	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
90462-10191	New Genuine Part	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
90462-12219	New Genuine Part	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
90480-01030	Grommet(For Front Brake Tube)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
90480-01069	Grommet(For Brake Tube)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
90947-02348	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
90947-02350	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
91611-40616	Bolt, Hexagon(For Steering Column Bracket)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
91611-40812	Bolt(for Drive Plate & Torque Converter Setting)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
91611-40828	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
91611-41014	New Genuine Part	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
91611-60814	Bolt	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
91611-60828	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
91611-B0616	Bolt(For Transaxle Case Receiver)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
91611-B0812	Bolt	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
91612-B1014	BOLT WWASHER	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
91651-40820	Bolt	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
94110-40800	Nut(For Steering Damper)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
94130-00802	Nut, No.1 (For Center Support Bearing)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
96221-30905	CLAMP	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
96910-33805	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
96960-32205	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
96991-10080	CLIP	Brake Tube & Clamp ([11.1982 - ] (8211- )GEN,IDN)
