Search › Model › LH108

LH108

Toyota HIACE · 1989 · 5,225 parts · 202 categories

5,225 items

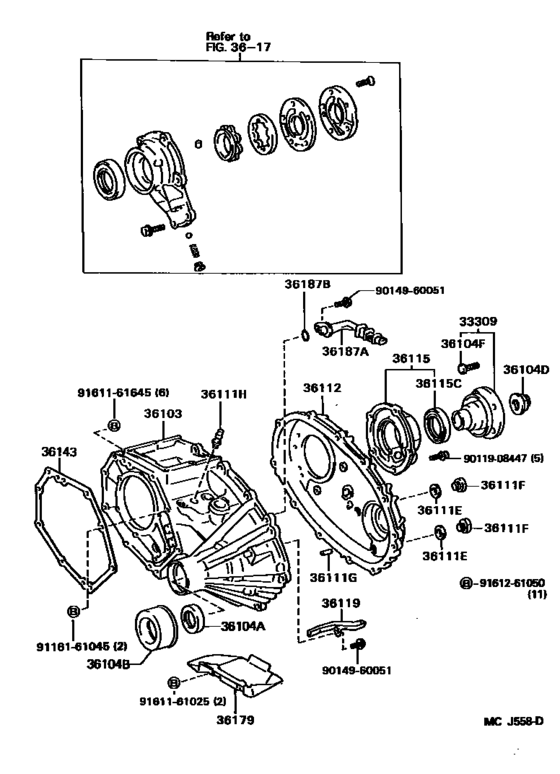

Transfer Case & Extension Housing ([08.1989 - ] (8908- )) 46

#	OEM	Part name
33309	33309-26010	Flange Sub-Assy, Transfer Output Shaft Companion
33309	33309-28030	Flange Sub-Assy, Transfer Output Shaft Companion
33309	33309-26011	Flange Sub-Assy, Transfer Output Shaft Companion
36103	36103-26020	Case Sub-Assy, Transfer
36103	36103-28011	Case Sub-Assy, Transfer
36103	96411-42800	Plug, Tight, No.1
36103	37331-26010	Cover, Sliding Shaft Dust
36103	36184-28030	Separator, Transfer Oil
36103	36187-25010	Strainr, Transfer Oil, No.1
36103	90149-60051	New Genuine Part
36103	90341-12014	Plug, W/head Straight Screw, No.1(For Cylinder Block)
36103	90341-14008	Plug, W/head Taper Screw, No.1
36103	96721-24017	Ring, O (For Transfer Oil Strainer)
36103	36103-28012	Case Sub-Assy, Transfer
36103	36103-28020	Case Sub-Assy, Transfer
36104	90311-37002	Seal, Type T, Oil (For Transfer Output Shaft)
36104	90311-37003	Seal, Type T, Oil (For Transfer Output Shaft)
36104	90311-38026	Seal, Type T, Oil (For Transfer Output Shaft)
36104	90311-38039	Seal, Type T, Oil (For Transfer Output Shaft)
36104	33325-28020	Deflector, Dust (For Transfer Extension Front Housing)
36104	90179-20010	Nut (For Transfer Output Shaft Companion Flange)
36104	90114-10017	Bolt (For Transfer Output Shaft Companion Flange)
36111	90430-18008	Gasket
36111	90430-T0021	Gasket(For Manual Transmission Filler Plug)
36111	90341-18006	Plug (No magnet)
36111	90341-18057	Drain Plug (with Magnet)
36111	90250-10214	Pin, Straight(For End Plate)
36111	90930-03085	Plug, Breather
36112	36112-28030	Case, Transfer, Rear
36115	36105-28010	Housing, Transfer Extension
36115	36105-28020	Housing, Transfer Extension
36115	90311-54001	Seal, Type T Oil (For Transfer Extension Housing)
36115	90311-52021	Seal, Type T Oil (For Transfer Extension Housing)
36119	36119-28010	Receiver, Transfer Oil, No.1
36143	36143-28020	Gasket, Transfer Case, Front
36179	36179-28011	Protector, Transfer Case Lower
36179	36179-25010	Protector, Transfer Case Lower
36179	36179-28020	Protector, Transfer Case Lower
36187	36187-28010	Strainr, Transfer Oil, No.1
9011908447	90119-08447	Bolt(For Intake Manifold To Exhaust Manifold)
9011908447	91611-60822	Bolt
9116161045	91161-61045	New Genuine Part
9161161025	91611-61025	Bolt(For Transaxle & Engine Setting)
9161161025	91612-61025	Bolt (For Control Shaft Cover)
9161161645	91611-61645	New Genuine Part
9161261050	91612-61050	Bolt(For Transaxle & Engine Setting)

OEM	Part name	Category
33309-26010	Flange Sub-Assy, Transfer Output Shaft Companion	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
33309-26011	Flange Sub-Assy, Transfer Output Shaft Companion	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
33309-28030	Flange Sub-Assy, Transfer Output Shaft Companion	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
33325-28020	Deflector, Dust (For Transfer Extension Front Housing)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
36103-26020	Case Sub-Assy, Transfer	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
36103-28011	Case Sub-Assy, Transfer	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
36103-28012	Case Sub-Assy, Transfer	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
36103-28020	Case Sub-Assy, Transfer	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
36105-28010	Housing, Transfer Extension	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
36105-28020	Housing, Transfer Extension	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
36112-28030	Case, Transfer, Rear	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
36119-28010	Receiver, Transfer Oil, No.1	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
36143-28020	Gasket, Transfer Case, Front	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
36179-25010	Protector, Transfer Case Lower	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
36179-28011	Protector, Transfer Case Lower	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
36179-28020	Protector, Transfer Case Lower	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
36184-28030	Separator, Transfer Oil	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
36187-25010	Strainr, Transfer Oil, No.1	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
36187-28010	Strainr, Transfer Oil, No.1	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
37331-26010	Cover, Sliding Shaft Dust	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90114-10017	Bolt (For Transfer Output Shaft Companion Flange)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90119-08447	Bolt(For Intake Manifold To Exhaust Manifold)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90149-60051	New Genuine Part	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90179-20010	Nut (For Transfer Output Shaft Companion Flange)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90250-10214	Pin, Straight(For End Plate)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90311-37002	Seal, Type T, Oil (For Transfer Output Shaft)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90311-37003	Seal, Type T, Oil (For Transfer Output Shaft)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90311-38026	Seal, Type T, Oil (For Transfer Output Shaft)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90311-38039	Seal, Type T, Oil (For Transfer Output Shaft)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90311-52021	Seal, Type T Oil (For Transfer Extension Housing)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90311-54001	Seal, Type T Oil (For Transfer Extension Housing)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90341-12014	Plug, W/head Straight Screw, No.1(For Cylinder Block)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90341-14008	Plug, W/head Taper Screw, No.1	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90341-18006	Plug (No magnet)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90341-18057	Drain Plug (with Magnet)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90430-18008	Gasket	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
90930-03085	Plug, Breather	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
91161-61045	New Genuine Part	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
91611-60822	Bolt	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
91611-61025	Bolt(For Transaxle & Engine Setting)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
91611-61645	New Genuine Part	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
91612-61025	Bolt (For Control Shaft Cover)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
91612-61050	Bolt(For Transaxle & Engine Setting)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
96411-42800	Plug, Tight, No.1	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
96721-24017	Ring, O (For Transfer Oil Strainer)	Transfer Case & Extension Housing ([08.1989 - ] (8908- ))
