Search › Model › LH108

LH108

Toyota HIACE · 1989 · 5,225 parts · 202 categories

5,225 items

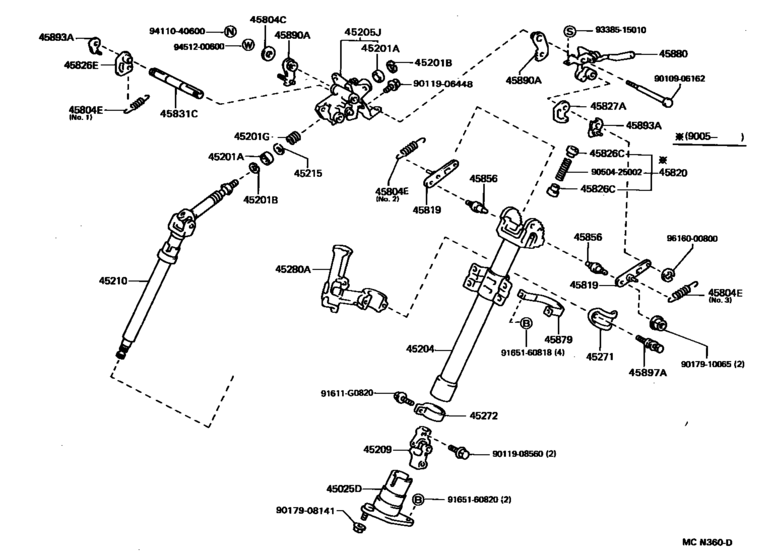

Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- )) 66

#	OEM	Part name
45025	45025-26030	Cover Sub-Assy, Steering Column Hole, No.1
45025	45025-26031	Cover Sub-Assy, Steering Column Hole, No.1
45201	90363-18008	Bearing(For Steering Main Shaft)
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90501-40017	Spring, Compression(For Steering Main Shaft)
45204	45204-26080	Tube Assy, Steering Column, Lower
45204	45025-26022	Cover Sub-Assy, Steering Column Hole, No.1
45204	45204-26081	Tube Assy, Steering Column, Lower
45204	45204-26090	Tube Assy, Steering Column, Lower
45204	45204-26091	Tube Assy, Steering Column, Lower
45205	45205-26130	Tube Sub-Assy, Steering Column, Upper
45205	45205-26131	Tube Sub-Assy, Steering Column, Upper
45205	45205-26150	Tube Sub-Assy, Steering Column, Upper
45209	45209-26020	Yoke Sub-Assy, Steering Sliding
45210	45210-26060	Shaft Assy, Steering Main
45215	45215-12010	Collar, Main Shaft Bearing Thrust
45271	45271-26010	Clamp, Steering Column, Upper
45272	45272-26010	Clamp, Steering Column, Lower
45280	45280-26191	Bracket Assy, Steering Column, Upper
45280	45280-26151	Bracket Assy, Steering Column, Upper
45804	90201-06019	Washer, Plate(For Steering Tilt Lever)
45804	94614-10600	Washer (For Primary Regulator Valve)
45804	94613-10601	Washer (For Primary Regulator Valve)
45804	90507-08010	Spring, Tension(For Steering Tilt Lever)
45804	90507-08012	Spring, Tension(For Steering Tilt Lever)
45804	90507-12035	Spring, Tension(For Steering Tilt Lever)
45819	45819-22040	Retainer, Tilt Lever
45819	45819-22060	Retainer, Tilt Lever
45820	45820-35010	Spring Assy, Tilt Steering Support
45826	90386-06031	Bush(For Steering Column Tube)
45826	90386-06043	Bush(For Steering Column Tube)
45826	45826-22050	Lever, Steering Tilt
45827	45827-22030	Lever, Steering Tilt Sub
45831	45831-22020	Bolt, Tilt Lever Lock, No.1
45856	45856-22010	Bolt, Tilt Steering, No.1
45879	45879-26020	Bracket, Steering Column Upper Support, No.2
45880	45880-26010	Lever Assy, Steering Tilt
45880	45880-35010	Lever Assy, Steering Tilt
45890	45890-20110	Pawl Assy, Tilt Steering
45890	45890-22090	Pawl Assy, Tilt Steering
45893	45893-22030	Stopper, Tilt Steering Pawl
45893	45893-22040	Stopper, Tilt Steering Pawl
45893	45893-22050	Stopper, Tilt Steering Pawl
45893	45893-22060	Stopper, Tilt Steering Pawl
45893	45893-22070	Stopper, Tilt Steering Pawl
45893	45893-22080	Stopper, Tilt Steering Pawl
45893	45893-22090	Stopper, Tilt Steering Pawl
45893	45893-22100	Stopper, Tilt Steering Pawl
45893	45893-22110	Stopper, Tilt Steering Pawl
45893	45893-22120	Stopper, Tilt Steering Pawl
91611	91611-G0820	Bolt
9010906162	90109-06162	Bolt(For Steering Tilt Lever)
9011906448	90119-06448	Screw(For Steering Column Tube)
9011908560	90119-08560	Bolt, Hexagon
9011908560	90080-11555	Bolt w-washer
9017908141	90179-08141	Nut (For Transmission Control Cable)
9017908141	90179-08038	Nut
9017910065	90179-10065	Nut, Master Cylinder Push Rod Clevis Lock
9050425002	90504-25002	Spring(For Steering Column Tube)
9165160818	91651-60818	BOLTWWASHER
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9338515010	93385-15010	Screw(For Steering Tilt Lever)
9411040600	94110-40600	Nut, Rock
9451200600	94512-00600	Washer, Seal(For Head Cover Set)
9616000800	96160-00800	Ring, E(For Counter Weight)

OEM	Part name	Category
45025-26022	Cover Sub-Assy, Steering Column Hole, No.1	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45025-26030	Cover Sub-Assy, Steering Column Hole, No.1	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45025-26031	Cover Sub-Assy, Steering Column Hole, No.1	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45204-26080	Tube Assy, Steering Column, Lower	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45204-26081	Tube Assy, Steering Column, Lower	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45204-26090	Tube Assy, Steering Column, Lower	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45204-26091	Tube Assy, Steering Column, Lower	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45205-26130	Tube Sub-Assy, Steering Column, Upper	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45205-26131	Tube Sub-Assy, Steering Column, Upper	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45205-26150	Tube Sub-Assy, Steering Column, Upper	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45209-26020	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45210-26060	Shaft Assy, Steering Main	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45215-12010	Collar, Main Shaft Bearing Thrust	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45271-26010	Clamp, Steering Column, Upper	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45272-26010	Clamp, Steering Column, Lower	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45280-26151	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45280-26191	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45819-22040	Retainer, Tilt Lever	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45819-22060	Retainer, Tilt Lever	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45820-35010	Spring Assy, Tilt Steering Support	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45826-22050	Lever, Steering Tilt	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45827-22030	Lever, Steering Tilt Sub	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45831-22020	Bolt, Tilt Lever Lock, No.1	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45856-22010	Bolt, Tilt Steering, No.1	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45879-26020	Bracket, Steering Column Upper Support, No.2	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45880-26010	Lever Assy, Steering Tilt	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45880-35010	Lever Assy, Steering Tilt	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45890-20110	Pawl Assy, Tilt Steering	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45890-22090	Pawl Assy, Tilt Steering	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45893-22030	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45893-22040	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45893-22050	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45893-22060	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45893-22070	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45893-22080	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45893-22090	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45893-22100	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45893-22110	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
45893-22120	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90080-11555	Bolt w-washer	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90109-06162	Bolt(For Steering Tilt Lever)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90119-06448	Screw(For Steering Column Tube)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90179-08038	Nut	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90179-08141	Nut (For Transmission Control Cable)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90179-10065	Nut, Master Cylinder Push Rod Clevis Lock	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90201-06019	Washer, Plate(For Steering Tilt Lever)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90363-18008	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90386-06031	Bush(For Steering Column Tube)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90386-06043	Bush(For Steering Column Tube)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90501-40017	Spring, Compression(For Steering Main Shaft)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90504-25002	Spring(For Steering Column Tube)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90507-08010	Spring, Tension(For Steering Tilt Lever)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90507-08012	Spring, Tension(For Steering Tilt Lever)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90507-12035	Spring, Tension(For Steering Tilt Lever)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
91611-G0820	Bolt	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
91651-60818	BOLTWWASHER	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
91651-60820	Bolt, Radiator Side Support Plate	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
91651-B0820	Bolt, Radiator Side Support Plate	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
93385-15010	Screw(For Steering Tilt Lever)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
94110-40600	Nut, Rock	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
94512-00600	Washer, Seal(For Head Cover Set)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
94613-10601	Washer (For Primary Regulator Valve)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
94614-10600	Washer (For Primary Regulator Valve)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
96160-00800	Ring, E(For Counter Weight)	Steering Column & Shaft ([08.1989 - ] TILT STEERING (8908- ))
