LH108

Toyota HIACE · 1989 · 5,225 parts · 202 categories
LH108 ×

← Back to categories

5,225 items

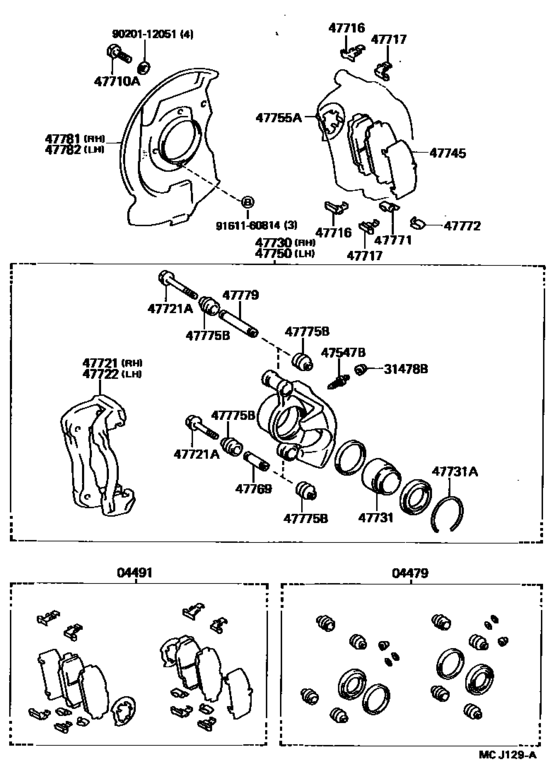

Front Disc Brake Caliper & Dust Cover ([08.1989 - 01.1992] (8908-9201)LH108,118,RZH109,119) 62
#OEMPart name
4479 04479-26050 Cylinder Kit, Disc Brake, Front
4479 04479-26060 Cylinder Kit, Disc Brake, Front
4479 04478-26030 Cylinder Kit, Disc Brake, Front
4491 04491-26261 Pad Kit, Disc Brake, Front
4491 04465-26320 Pad Kit, Disc Brake, Front
4491 04491-26262 Pad Kit, Disc Brake, Front
4491 04491-26270 Pad Kit, Disc Brake, Front
4491 04465-26130 Pad Kit, Disc Brake, Front
4491 04491-26320 Pad Kit, Disc Brake, Front
4491 04491-26340 Pad Kit, Disc Brake, Front
31478 31478-30010 Bleeder Plug Cap
47547 47547-12010 Plug, Bleeder(For Release Cylinder)
47710 90101-12149 Bolt, Hexagon(For Front Disc Brake Caliper)
47716 47716-26050 Plate, Pad Support, No.1(For Front Disc Brake)
47717 47717-26020 Plate, Pad Support, No.2(For Front Disc Brake)
47721 47721-26070 Mounting, Front Disc Brake Cylinder, Rh
47721 47721-26100 Mounting, Front Disc Brake Cylinder, Rh
47721 47721-26H00 Mounting, Front Disc Brake Cylinder, Rh
47721 47721-26H10 Mounting, Front Disc Brake Cylinder, Rh
47721 47721-26H20 Mounting, Front Disc Brake Cylinder, Rh
47721 47721-26H30 Mounting, Front Disc Brake Cylinder, Rh
47721 47721-26H40 Mounting, Front Disc Brake Cylinder, Rh
47721 90119-10014 Bolt(For Front Disc Brake Cylinder Mounting)
47721 90119-10249 Bolt(For Front Disc Brake Cylinder Mounting)
47721 90119-10388 Bolt(For Front Disc Brake Cylinder Mounting)
47721 90119-10389 Bolt(For Front Disc Brake Cylinder Mounting)
47722 47722-26030 Mounting, Front Disc Brake Cylinder, Lh
47722 47722-26H00 Mounting, Front Disc Brake Cylinder, Lh
47722 47722-26H10 Mounting, Front Disc Brake Cylinder, Lh
47722 47722-26H20 Mounting, Front Disc Brake Cylinder, Lh
47722 47722-26H30 Mounting, Front Disc Brake Cylinder, Lh
47722 47722-26H40 Mounting, Front Disc Brake Cylinder, Lh
47730 47730-26070 Cylinder Assy, Front Disc Brake, Rh
47730 47730-26130 Cylinder Assy, Front Disc Brake, Rh
47730 47730-26H30 Cylinder Assy, Front Disc Brake, Rh
47730 47730-26H40 Cylinder Assy, Front Disc Brake, Rh
47731 47731-25010 Piston, Front Disc Brake
47731 90522-76001 Ring, Set(For Front Disc Brake Piston)
47745 47745-26050 Shim, Anti-Squeal, No.2(For Front Disc Brake)
47745 47745-26070 Shim, Anti-Squeal, No.1(For Front Disc Brake)
47745 47745-26080 Shim, Anti-Squeal, No.1(For Front Disc Brake)
47750 47750-26070 Cylinder Assy, Disc Brake, Lh
47750 47750-26130 Cylinder Assy, Disc Brake, Lh
47750 47750-26H30 Cylinder Assy, Disc Brake, Lh
47750 47750-26H40 Cylinder Assy, Disc Brake, Lh
47755 47755-25010 Insulator, Disc Brake Heat
47769 47769-40010 Bush, Cylinder Slide, No.1(For Front Disc Brake)
47769 47769-50010 Bush, Cylinder Slide, No.1(For Front Disc Brake)
47771 47771-26030 Plate, Pad Wear Indicator, No.1
47772 47772-26030 Plate, Pad Wear Indicator, No.2
47775 47775-26010 Boot, Bush Dust(For Front Disc Brake)
47775 47775-50010 Boot, Bush Dust(For Front Disc Brake)
47779 47779-40010 Bush, Cylinder Slide, No.2(For Front Disc Brake)
47781 47781-26051 Cover, Disc Brake Dust, Front Rh
47781 47781-26110 Cover, Disc Brake Dust, Front Rh
47781 91611-B0812 Bolt
47781 47781-26111 Cover, Disc Brake Dust, Front Rh
47782 47782-26051 Cover, Disc Brake Dust, Front Lh
47782 47782-26110 Cover, Disc Brake Dust, Front Lh
47782 47782-26111 Cover, Disc Brake Dust, Front Lh
9020112051 90201-12051 WASHER
9161160814 91611-60814 Bolt
