Search › Model › LH107

LH107

Toyota HIACE · 1989 · 5,670 parts · 273 categories

5,670 items

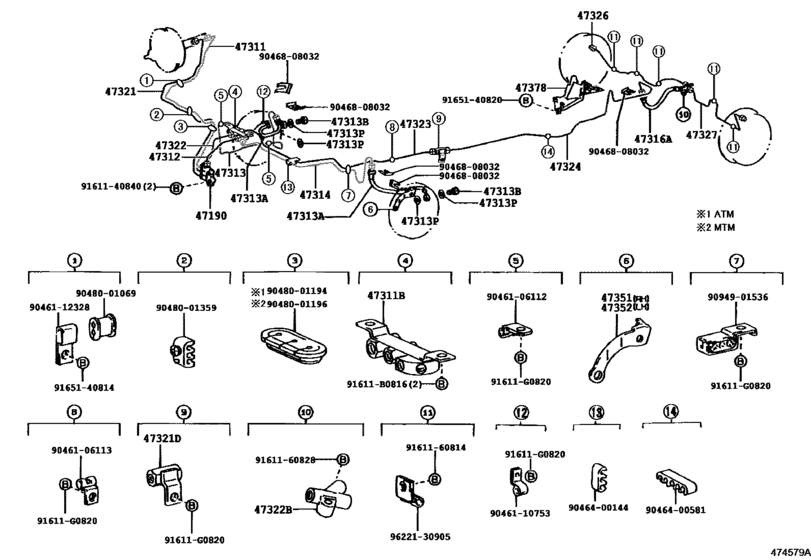

Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107) 47

#	OEM	Part name
47190	47190-26020	Valve Assy, Proportioning & By-Pass
47311	47311-26380	Tube, Front Brake, No.1
47311	90413-10238	Way, No.1(For Front Brake Tube)
47312	47312-26270	Tube, Front Brake, No.2
47313	47313-26160	Tube, Front Brake, No.3
47313	90947-02616	Hose, Flexible, No.1(For Front)
47313	90947-02835	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47314	47314-26160	Tube, Front Brake, No.4
47316	90947-02576	Hose, Flexible, No.1(For Front)
47321	47321-26290	Tube, Rear Brake, No.1
47321	90412-10165	Way, No.1(For Front Brake Tube)
47322	47322-26180	Tube, Rear Brake, No.2
47322	90413-10147	Way, 3(For Rear Brake Tube)
47323	47323-26310	Tube, Rear Brake, No.3
47324	47324-26220	Tube, Rear Brake, No.4
47326	47326-26260	Tube, Rear Brake, No.6
47327	47327-26110	Tube, Rear Brake, No.7
47351	47351-26130	Bracket, Flexible Hose(For Front Rh)
47351	47351-26131	Bracket, Flexible Hose(For Front Rh)
47352	47352-26120	Bracket, Flexible Hose(For Front Lh)
47352	47352-26121	Bracket, Flexible Hose(For Front Lh)
47378	47378-26020	Protector, Brake Tube
47378	47378-26021	Protector, Brake Tube
91611	91611-B0816	Bolt
91611	91611-G0820	Bolt
9046106112	90461-06112	Clamp, Brake Tube, No.6
9046106113	90461-06113	Clamp, Brake Tube, No.2
9046110753	90461-10753	New Genuine Part
9046112328	90461-12328	New Genuine Part
9046400144	90464-00144	Clamp, Resistive Cord, No.3
9046400581	90464-00581	New Genuine Part
9046808032	90468-08032	CLIP
9048001069	90480-01069	Grommet(For Brake Tube)
9048001194	90480-01194	New Genuine Part
9048001196	90480-01196	New Genuine Part
9048001359	90480-01359	New Genuine Part
9094901536	90949-01536	Clamp, Brake Tube, No.15
9161140840	91611-40840	New Genuine Part
9161140840	91611-60840	BOLT
9161160814	91611-60814	Bolt
9161160828	91611-60828	Bolt(For Clutch Release Cylinder Setting)
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
9165140820	91651-40820	Bolt
9622130905	96221-30905	CLAMP

OEM	Part name	Category
47190-26020	Valve Assy, Proportioning & By-Pass	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
47311-26380	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
47312-26270	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
47313-26160	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
47314-26160	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
47321-26290	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
47322-26180	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
47323-26310	Tube, Rear Brake, No.3	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
47324-26220	Tube, Rear Brake, No.4	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
47326-26260	Tube, Rear Brake, No.6	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
47327-26110	Tube, Rear Brake, No.7	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
47351-26130	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
47351-26131	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
47352-26120	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
47352-26121	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
47378-26020	Protector, Brake Tube	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
47378-26021	Protector, Brake Tube	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90080-11228	New Genuine Part	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90412-10165	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90413-10147	Way, 3(For Rear Brake Tube)	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90413-10238	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90461-06112	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90461-06113	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90461-10753	New Genuine Part	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90461-12328	New Genuine Part	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90464-00144	Clamp, Resistive Cord, No.3	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90464-00581	New Genuine Part	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90468-08032	CLIP	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90480-01069	Grommet(For Brake Tube)	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90480-01194	New Genuine Part	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90480-01196	New Genuine Part	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90480-01359	New Genuine Part	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90947-02576	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90947-02616	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90947-02835	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
90949-01536	Clamp, Brake Tube, No.15	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
91611-40840	New Genuine Part	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
91611-60814	Bolt	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
91611-60828	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
91611-60840	BOLT	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
91611-B0816	Bolt	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
91611-G0820	Bolt	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
91651-40814	BOLT	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
91651-40820	Bolt	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
96221-30905	CLAMP	Brake Tube & Clamp ([08.1989 - 08.1993] (8908-9308)LH107)
