LH103

Toyota HIACE · 1989 · 5,530 parts · 271 categories
LH103 ×

← Back to categories

5,530 items

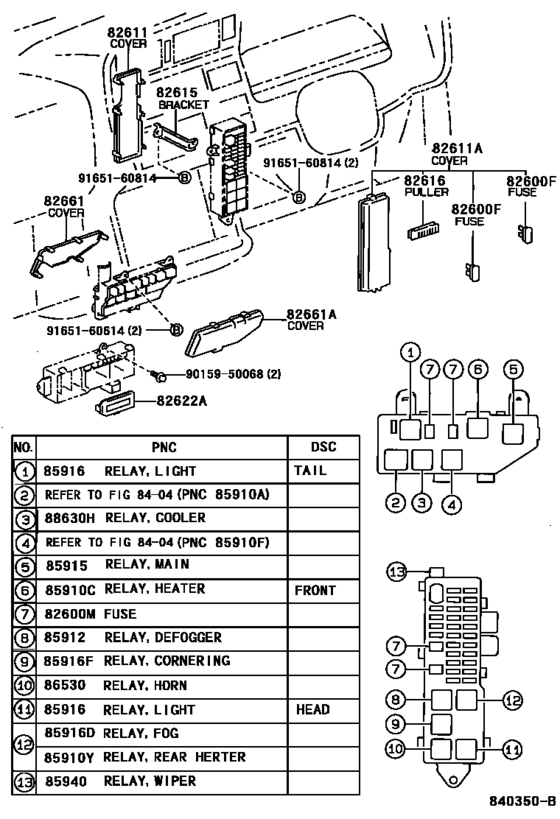

Switch & Relay & Computer ([08.1993 - 08.1996] INSTRUMENT PANEL RELAY (9308-9608)RHD) 33
#OEMPart name
82600 90982-09003 Fusible Link
82600 90982-09005 Fuse, Fuse Block
82600 90982-09007 Fusible Link
82600 90982-09009 Fusible Link
82600 90982-09010 Fusible Link
82600 90982-09011 Fusible Link
82600 90982-10001 Instrument Panel Fusible Link
82600 90982-10002 Fuse, Fuse Block
82611 82611-26130 Cover, Fuse Block
82611 82611-26051 Cover, Fuse Block, No.2
82615 82605-26010 Bracket, Fuse
82615 82605-26020 Bracket, Fuse
82615 82615-95J01 Bracket, Fuse
82616 82616-12010 Lever, Fuse
82616 82616-20010 Puller, Fuse
82622 82622-26050 Cover, Fusible Link, Upper, No.2
82661 82661-26050 Cover, Relay Block, No.1
82661 82661-26051 Cover, Relay Block, No.1
82661 82661-26071 Cover, Relay Block, No.1
82661 82661-26072 Cover, Relay Block, No.1
82661 82661-26073 Cover, Relay Block, No.1
82661 82661-26080 Cover, Relay Block, No.2
85910 90987-04002 Relay, Ignition, No.1
85912 85915-26010 Relay Assy, Circuit Opening
85912 90987-02009 Relay Assy
85912 90987-02012 Relay, Ignition, No.1
85916 90987-02006 Relay
85940 85940-95J00 Relay Assy, Windshield Wiper
88630 90987-04004 Relay, Starter Cut
9015950068 90159-50068 SCREW
9165160614 91651-60614 Bolt
9165160814 91651-60814 Clamp Or Clip, Hose(for Radiator Outlet No.1)
9165160814 91651-B0814 Bolt with washer
