LH103

Toyota HIACE · 1989 · 5,530 parts · 271 categories
LH103 ×

← Back to categories

5,530 items

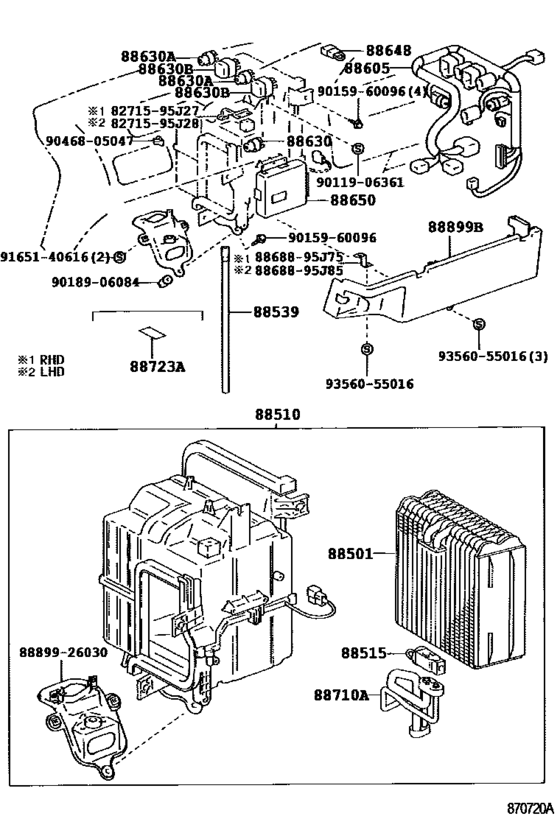

Heating & Air Conditioning - Cooler Unit ([08.1989 - 08.1995] FRONT(MAKER OPT) (8908-9508)) 32
#OEMPart name
88501 88501-26030 Evaporator Sub-Assy, Cooler, No.1
88501 88501-26031 Evaporator Sub-Assy, Cooler, No.1
88510 88510-26510 Unit Assy, Cooler
88515 88515-20100 Valve, Cooler Expansion
88515 88515-22240 Valve, Cooler Expansion
88539 88539-26150 Hose, Cooler Unit Drain, No.1
88539 88539-95701 Hose, Cooler Unit Drain, No.1
88605 88605-26400 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-26410 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-2F150 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-2F160 Harness Sub-Assy, Cooler Wiring, No.1
88630 88630-14030 Relay Assy, Cooler
88630 90987-02004 Relay Assy, Starter
88630 88630-95702 Relay, Heater Radiator
88630 90987-03001 Relay
88648 88648-95J24 Wiring, Cooler, No.1
88650 88650-14030 Amplifier Assy, Cooler Stabilizer
88710 88710-26140 Tube Assy, Air Conditioner
88899 88891-95J27 Cover, Cooler Control
8271595 82715-95J27 Bracket,wiring Harness Clamp
8271595 82715-95J28 Bracket,wiring Harness Clamp
8868895 88688-95J75 Bracket, Cooler Diaphragm
8868895 88688-95J85 Bracket, Cooler Diaphragm
8889926030 88899-26030 Cover, Evaporator
9011906361 90119-06361 BOLT WWASHER
9015960096 90159-60096 New Genuine Part
9018906084 90189-06084 NUT
9046805047 90468-05047 CLIP
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9356055016 93560-55016 Screw(For Mat Set Plate)
