Search › Model › LF80

LF80

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 1996 · 4,408 parts · 260 categories

4,408 items

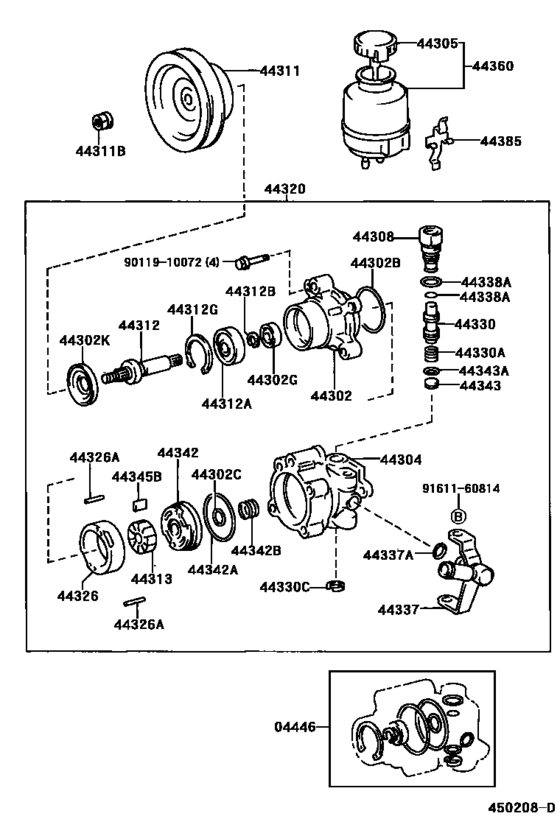

Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82) 60

#	OEM	Part name
4446	04446-26030	Gasket Kit, Power Steering Pump
44302	44302-30110	Housing Sub-Assy, Vane Pump, Front
44302	90301-60001	Ring, O, No.1(For Vane Pump Housing)
44302	96711-19016	Ring, O (For 5Th Shift Arm Shaft)
44302	90311-17004	Seal, Oil, No.2(For Vane Pump Housing)
44302	90313-23001	Seal, Oil, No.3(For Vane Pump Housing)
44304	44304-30051	Housing Sub-Assy, Vane Pump, Rear
44305	44305-28020	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-28051	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-14041	Union Sub-Assy, Pressure Port
44311	44311-30150	Pulley, Vane Pump
44311	90178-12003	Nut(For Vane Pump Pulley)
44312	44312-28010	Shaft, Vane Pump
44312	90363-17011	Bearing(For Vane Pump Shaft)
44312	90363-17017	Bearing(For Vane Pump Shaft)
44312	90520-15005	Ring, Snap, No.1(For Vane Pump Shaft)
44312	90521-51003	Ring, Snap, No.1(For Vane Pump Housing)
44313	44313-22040	Rotor, Vane Pump
44313	44313-22050	Rotor, Vane Pump
44313	44313-22060	Rotor, Vane Pump
44313	44313-22070	Rotor, Vane Pump
44313	44313-22080	Rotor, Vane Pump
44320	44320-38020	Pump Assy, Vane
44326	44325-12010	Ring, Cam(For Vane Pump)
44326	44325-12020	Ring, Cam(For Vane Pump)
44326	44325-12030	Ring, Cam(For Vane Pump)
44326	44325-12040	Ring, Cam(For Vane Pump)
44326	44325-12050	Ring, Cam(For Vane Pump)
44326	90250-05008	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-12131	Valve Assy, Flow Control
44330	44330-32670	Valve Assy, Flow Control
44330	44330-12141	Valve Assy, Flow Control
44330	44330-32680	Valve Assy, Flow Control
44330	44330-12151	Valve Assy, Flow Control
44330	44330-32690	Valve Assy, Flow Control
44330	44330-12161	Valve Assy, Flow Control
44330	44330-32700	Valve Assy, Flow Control
44330	44330-12171	Valve Assy, Flow Control
44330	44330-32710	Valve Assy, Flow Control
44330	44330-12181	Valve Assy, Flow Control
44330	44330-32720	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44330	96151-01700	Ring, Snap(For Flow Control Valve)
44337	44337-38010	Union, Power Steering Suction Port
44337	96711-19013	Ring, O(For Power Steering Suction Port)
44338	90301-22001	Ring, O(For Pressure Port Union)
44338	96711-19014	O-Ring
44342	44341-12010	Plate, Vane Pump Side, Front
44342	90301-53002	Ring, O(For Vane Pump Side Plate Rear)
44342	90501-23014	Spring, Compression(For Vane Pump Side Plate Rear)
44343	44343-12040	Seat, Flow Control Spring
44345	44345-12010	Plate, Vane Pump
44345	44345-12020	Plate, Vane Pump
44345	44345-12030	Plate, Vane Pump
44345	44345-12040	Plate, Vane Pump
44345	44345-12050	Plate, Vane Pump
44360	44360-22170	Reservoir Assy, Vane Pump Oil
44385	44385-38010	Support, Spring, Upper(For Vane Pump Oil Reservoir)
9011910072	90119-10072	New Genuine Part
9161160814	91611-60814	Bolt

OEM	Part name	Category
04446-26030	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44302-30110	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44304-30051	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44305-28020	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44305-28051	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44308-14041	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44311-30150	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44312-28010	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44313-22040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44313-22050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44313-22060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44313-22070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44313-22080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44320-38020	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44325-12010	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44325-12020	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44325-12030	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44325-12040	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44325-12050	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44330-12131	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44330-12141	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44330-12151	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44330-12161	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44330-12171	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44330-12181	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44330-32670	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44330-32680	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44330-32690	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44330-32700	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44330-32710	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44330-32720	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44337-38010	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44341-12010	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44343-12040	Seat, Flow Control Spring	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44360-22170	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
44385-38010	Support, Spring, Upper(For Vane Pump Oil Reservoir)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
90119-10072	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
90178-12003	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
90250-05008	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
90301-22001	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
90301-53002	Ring, O(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
90301-60001	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
90311-17004	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
90313-23001	Seal, Oil, No.3(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
90363-17011	Bearing(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
90363-17017	Bearing(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
90501-23014	Spring, Compression(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
90520-15005	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
90521-51003	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
91611-60814	Bolt	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
96151-01700	Ring, Snap(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
96711-19013	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
96711-19014	O-Ring	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
96711-19016	Ring, O (For 5Th Shift Arm Shaft)	Vane Pump & Reservoir (Power Steering) ([12.1996 - ] (9612- )LF60,7#,80,82)
