Search › Model › LF80

LF80

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 1996 · 4,408 parts · 260 categories

4,408 items

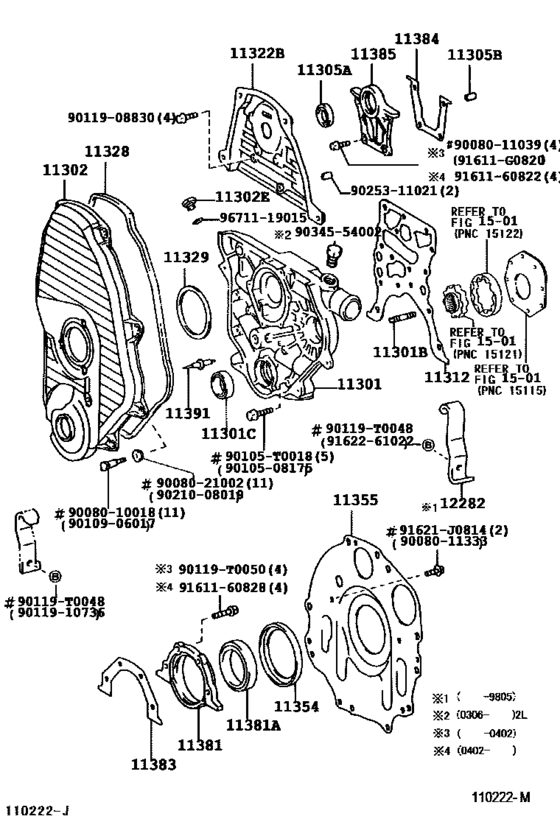

Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L) 52

#	OEM	Part name
11301	11311-05021	Case Sub-Assy, Timing Gear
11301	11311-54052	Case Sub-Assy, Timing Gear
11301	92132-60828	Bolt,stud(For Timing Gear Case)
11301	90311-42031	Seal, Oil
11302	11321-05010	Cover Sub-Assy, Timing Chain Or Belt
11302	11321-54020	Cover Sub-Assy, Timing Chain Or Belt
11302	11321-54021	Cover Sub-Assy, Timing Chain Or Belt
11302	90341-18004	Plug, Straight(For Timing Gear Cover)
11305	90311-32019	Seal, Oil(For Camshaft Setting)
11305	90253-11021	Pin, Ring
11312	11312-54021	Gasket, Front End Plate
11312	11312-54040	Gasket, Front End Plate
11322	11322-05010	Cover, Timing Belt, No.2
11322	11322-54021	Cover, Timing Belt, No.2
11322	11322-54022	Cover, Timing Belt, No.2
11328	11328-05010	Gasket, Timing Gear Or Chain Cover
11328	11328-54021	Gasket, Timing Gear Or Chain Cover
11329	11329-05010	Gasket, Timing Gear Rear Cover
11329	11329-54021	Gasket, Timing Gear Rear Cover
11354	11354-54010	Seal, Flywheel Housing Dust
11355	11355-05010	Plate, Rear End
11355	11355-54030	Plate, Rear End
11381	11381-05010	Retainer, Engine Rear Oil Seal
11381	11381-54030	Retainer, Engine Rear Oil Seal
11381	90311-85008	Seal, Engine Rear Oil
11383	11383-05010	Gasket, Engine Rear Oil Seal Retainer
11383	11383-54030	Gasket, Engine Rear Oil Seal Retainer
11384	11384-05010	Gasket, Oil Seal Retainer, No.2
11384	11384-54030	Gasket, Oil Seal Retainer, No.2
11385	11382-05010	Retainer, Camshaft Oil Seal
11385	11382-54020	Retainer, Camshaft Oil Seal
11391	11391-54020	Pointer, Timing
90105	90105-T0018	BOLT FLANGE
90119	90119-T0048	New Genuine Part
90119	90119-T0050	New Genuine Part
91611	91611-G0820	Bolt
91621	91621-J0814	Bolt (For Transmission Control Cable Bracket)
9008010018	90080-10018	New Genuine Part
9008011039	90080-11039	Bolt (For Transfer Case Lower Protector)
9008011333	90080-11333	New Genuine Part
9008021002	90080-21002	WASHER
9010508175	90105-08175	Bolt(For Crankshaft Bearing Cap Set)
9010906017	90109-06017	BOLT
9011908830	90119-08830	Bolt(For Oil Receiver Pipe)
9011908830	47327-60232	Tube, Rear Brake, No.7
9011910736	90119-10736	BOLT WWASHER
9021008019	90210-08019	WASHER
9034554002	90345-54002	Plug, W/head Taper Screw, No.1
9161160822	91611-60822	Bolt
9161160828	91611-60828	Bolt(For Clutch Release Cylinder Setting)
9162261022	91622-61022	BOLT WWASHER
9671119015	96711-19015	Ring, O(For Power Steering Pump Tight Plug)

OEM	Part name	Category
11311-05021	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11311-54052	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11312-54021	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11312-54040	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11321-05010	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11321-54020	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11321-54021	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11322-05010	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11322-54021	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11322-54022	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11328-05010	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11328-54021	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11329-05010	Gasket, Timing Gear Rear Cover	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11329-54021	Gasket, Timing Gear Rear Cover	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11354-54010	Seal, Flywheel Housing Dust	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11355-05010	Plate, Rear End	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11355-54030	Plate, Rear End	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11381-05010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11381-54030	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11382-05010	Retainer, Camshaft Oil Seal	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11382-54020	Retainer, Camshaft Oil Seal	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11383-05010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11383-54030	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11384-05010	Gasket, Oil Seal Retainer, No.2	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11384-54030	Gasket, Oil Seal Retainer, No.2	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
11391-54020	Pointer, Timing	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
47327-60232	Tube, Rear Brake, No.7	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90080-10018	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90080-11039	Bolt (For Transfer Case Lower Protector)	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90080-11333	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90080-21002	WASHER	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90105-08175	Bolt(For Crankshaft Bearing Cap Set)	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90105-T0018	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90109-06017	BOLT	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90119-08830	Bolt(For Oil Receiver Pipe)	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90119-10736	BOLT WWASHER	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90119-T0048	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90119-T0050	New Genuine Part	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90210-08019	WASHER	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90253-11021	Pin, Ring	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90311-32019	Seal, Oil(For Camshaft Setting)	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90311-42031	Seal, Oil	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90311-85008	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90341-18004	Plug, Straight(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
90345-54002	Plug, W/head Taper Screw, No.1	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
91611-60822	Bolt	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
91611-60828	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
91611-G0820	Bolt	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
91621-J0814	Bolt (For Transmission Control Cable Bracket)	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
91622-61022	BOLT WWASHER	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
92132-60828	Bolt,stud(For Timing Gear Case)	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
96711-19015	Ring, O(For Power Steering Pump Tight Plug)	Timing Gear Cover & Rear End Plate ([12.1996 - 03.2005] (9612-0503)2L,5L)
