LF80

Toyota INNOVA-KIJANG-REVO-UNSER-ZACE · 1996 · 4,408 parts · 260 categories

4,408 items

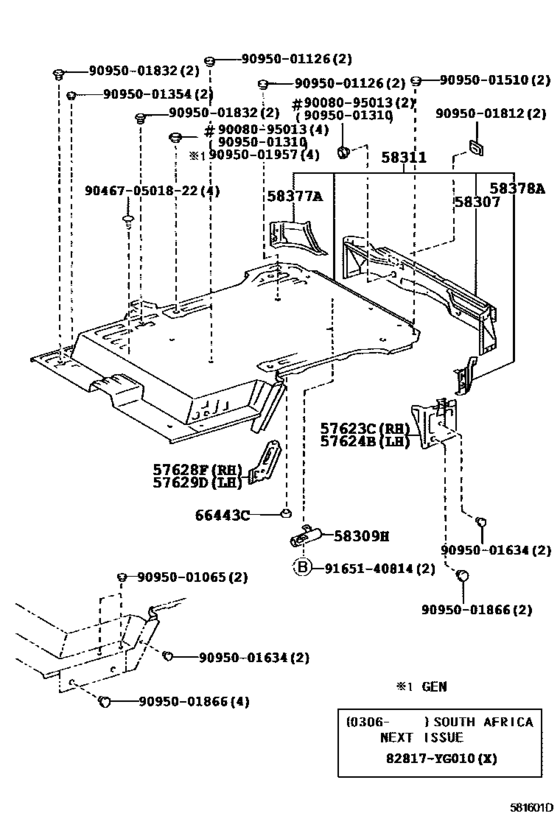

Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A) 25

#	OEM	Part name
57623	57047-0B010	Rail Sub-Assy, Floor Side, Rear Rh
57624	57048-0B010	Rail Sub-Assy, Floor Side, Rear Lh
57628	57628-0B010	Plate, Rear Floor Side Member, Rh
57629	57629-0B010	Plate, Rear Floor Side Member, Lh
58307	58302-0B050	Panel Sub-Assy, Body Lower Back
58309	58309-0B010	Lock Sub-Assy, Spare Wheel Carrier Handle Guide
58311	58301-0B470	Pan, Rear Floor
58311	58301-0B911	Pan, Rear Floor
58377	58377-0B010	Panel, Body Lower Back, Rh
58378	58378-0B010	Panel, Body Lower Back, Lh
82817	82817-YG010	Protector, Wiring Harness, No.1
9008095013	90080-95013	New Genuine Part
9095001065	90950-01065	Plug, Hole(For Front Fender Apron)
9095001126	90950-01126	Grommet, Safety Band Anchorage Nut
9095001310	90950-01310	Plug, Hole
9095001354	90950-01354	Cushion(For Luggage Compartment Door Panel)
9095001510	90950-01510	New Genuine Part
9095001634	90950-01634	New Genuine Part
9095001812	90950-01812	New Genuine Part
9095001832	90950-01832	Sub-Sheet, Front Door Service Hole
9095001866	90950-01866	Plug, Hole(For Front Door Panel)
9095001957	90950-01957	PLUG HOLE
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
904670501822	90467-05018-22	New Genuine Part

OEM	Part name	Category
57047-0B010	Rail Sub-Assy, Floor Side, Rear Rh	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
57048-0B010	Rail Sub-Assy, Floor Side, Rear Lh	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
57628-0B010	Plate, Rear Floor Side Member, Rh	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
57629-0B010	Plate, Rear Floor Side Member, Lh	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
58301-0B470	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
58301-0B911	Pan, Rear Floor	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
58302-0B050	Panel Sub-Assy, Body Lower Back	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
58309-0B010	Lock Sub-Assy, Spare Wheel Carrier Handle Guide	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
58377-0B010	Panel, Body Lower Back, Rh	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
58378-0B010	Panel, Body Lower Back, Lh	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
82817-YG010	Protector, Wiring Harness, No.1	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
90080-11228	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
90080-95013	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
90467-05018-22	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
90950-01065	Plug, Hole(For Front Fender Apron)	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
90950-01126	Grommet, Safety Band Anchorage Nut	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
90950-01310	Plug, Hole	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
90950-01354	Cushion(For Luggage Compartment Door Panel)	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
90950-01510	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
90950-01634	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
90950-01812	New Genuine Part	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
90950-01832	Sub-Sheet, Front Door Service Hole	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
90950-01866	Plug, Hole(For Front Door Panel)	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
90950-01957	PLUG HOLE	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
91651-40814	BOLT	Rear Floor Panel & Rear Floor Member ([08.2002 - ] (0208- )KF8#,LF80,82,RZF81..GEN ; (0210- ) TAIW ; (0211- )PHL ; (0212- ) MA ; (0306- )S A)
